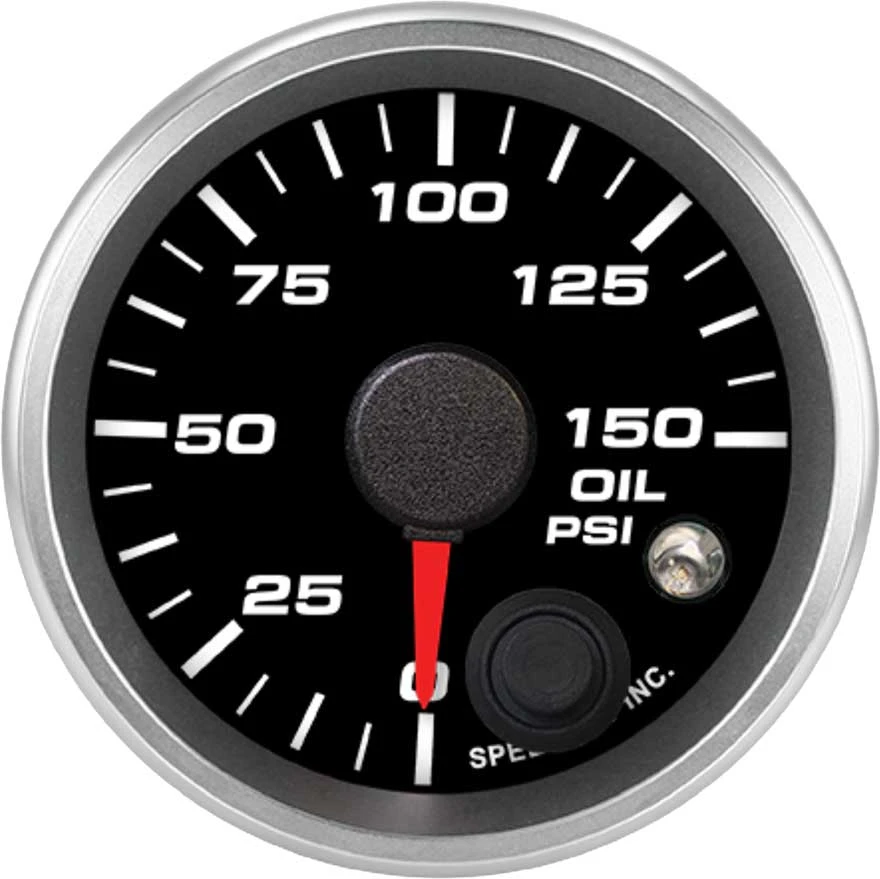

Speedhut R2-OP7-REV 150PSI Oil Gauge with Warning
Speedhut R2-OP7-REV adds a customizable warning light to a 2-1/16-inch oil pressure gauge. It displays0–150PSI on a black dial; warning settings must be selected for the engine's requirements rather than treated as a universal safe-pressure threshold.
Specifications and included details
- 0–150PSI display with customizable warning light.
- 2-1/16-inch nominal size; listed 2.10-inch (54mm) opening.
- 300PSI three-wire pressure sensor included.
- Sensor cable and 3-foot power/lighting harness listed.
Before ordering
Verify mounting template and sender-port fit. Follow this model's instructions for warning configuration and use engine-specific pressure requirements. A warning light does not identify the cause of a pressure change or guarantee prevention of damage.
Product questions and answers
Is the warning threshold already correct for every engine?
No universal threshold is established. Configure it under the gauge instructions using the engine's requirements.
Does its300PSI sender extend the dial range?
No. The dial remains0–150PSI.
Can I use the nominal2-1/16-inch size as the hole template?
Use the confirmed mounting template; this listing gives a separate2.10-inch opening.
