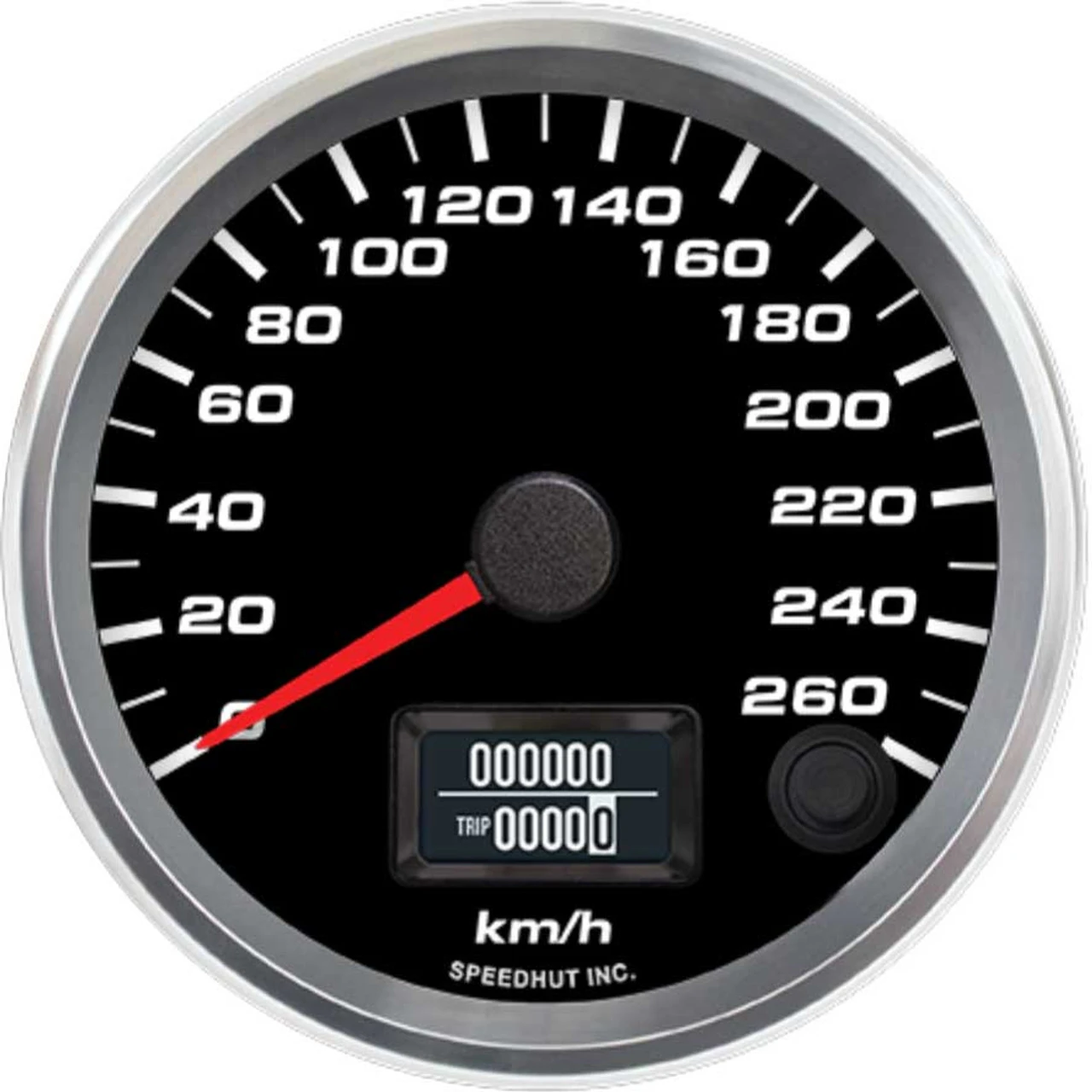

Speedhut 3-3/8" 260km/h Programmable Speedometer (R3-S13-LEG)
KEY FEATURES AND BENEFITS:
Provides accurate speed readings: Enabled by an internal microprocessor.
Universal compatibility: Works with any vehicle speed sensor.
Easy calibration: Ensures precise speed measurements for your specific setup.
User-configurable design: Supports adjustments for various gear ratios and tire sizes.
High torque stepper motor: Delivers precise pointer movement under all conditions.
Gauge Type: Speedometer
Speedometer Signal Type: Electric Programmable
Range: 0-260 KM/H
Size: 3 3/8 inch (85mm diameter)
Hole Size: 3.28 inch (83mm)
Standard or Metric: Metric
Included: 8 ft Programmable Speedometer Wire Harness (LED lit), 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Connect Power: Attach the +12V accessory power wire (red) to a fused power source. A 5 Amp inline fuse is recommended.
Connect Ground: Connect the ground wire (black) to a reliable grounding point on the vehicle chassis.
Connect Lighting (Optional): Connect the dash lighting wire (white) to your vehicle’s instrument panel lighting circuit if desired.
Connect Speedometer Signal: Connect the white wire from the 8 ft harness to the pulse output wire from your vehicle’s speed sensor.
Mount the Gauge: Insert the speedometer into a 3.28 inch (83mm) hole and secure it with the spin-lock ring.
Calibrate the Speedometer:
Access the calibration menu as instructed in the product manual.
Select a calibration mode.
Drive at a constant known speed (verified by GPS or another speedometer).
Press the programming button to lock in the calibration.
Reset Trip Odometer (if applicable): Use the gauge face button or menu to reset, if your model includes this feature.
BENEFITS OF USING THE SPEEDHUT 3-3/8" 260KM/H PROGRAMMABLE SPEEDOMETER (R3-S13-LEG):
Ensures highly accurate speed readings for improved safety and diagnostics.
Provides universal compatibility with electric vehicle speed sensors.
Adapts to custom gear ratios and tire sizes with ease.
Delivers long-term durability with weatherproof construction and a robust design.
Streamlined installation thanks to included wiring harnesses and slim profile.
Visually enhances the dashboard with a premium aluminum bezel.
Simplified mounting: Features a slim case and spin-lock ring for ease of installation.
Weather-resistant construction: Ensures durability in diverse conditions.
Made in America: Reflects high-quality craftsmanship and standards.
Product identification
- Brand: Speedhut
- Model / MPN: R3-S13-LEG
