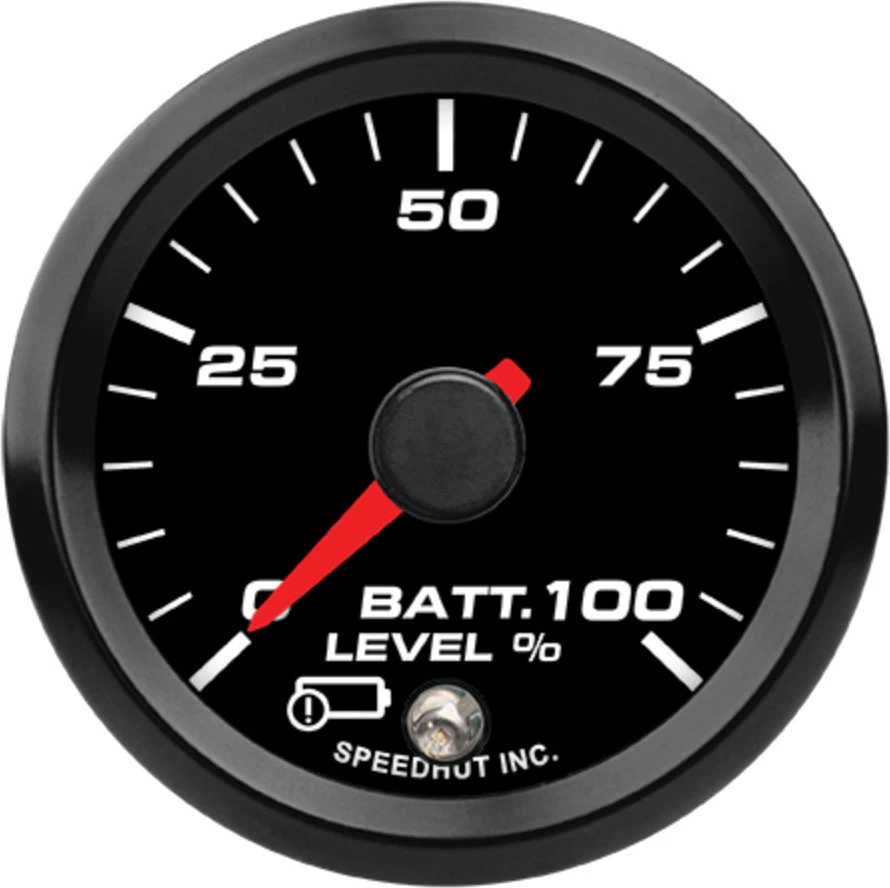

Speedhut 2-1/16" 0-100% EV Battery Level Gauge w/Warning (FOR2-SC1-EV)
The Speedhut 2-1/16" 0-100% EV Battery Level Gauge w/Warning (FOR2-SC1-EV) is a vital tool for electric vehicle owners seeking real-time insights into their battery’s state of charge. It delivers a clear visual indication of battery levels from 0% to 100%, helping users manage charging and range more effectively. With its CAN-Bus connection at 500K baud and a low battery warning at 15%, it enhances vehicle safety and monitoring precision. Designed for a seamless installation process, this compact and highly compatible gauge is an intelligent addition to any EV dashboard setup.
KEY FEATURES AND BENEFITS:
Real-time Monitoring: Displays accurate state of charge (SOC) from 0% to 100% continuously.
Low Battery Warning: Activates an alert light when battery level drops below 15% to notify the driver.
CAN-Bus Integration: Communicates over the EV’s CAN-Bus system at 500K baud for reliable data transfer.
Compatibility: Works with popular EV control units like Orion, AEM, Zero EV, and Thunderstruck.
Compact Size: 2-1/16 inch (52mm) diameter fits standard gauge placements; requires a 2.10" (54mm) hole.
Included Harnesses: Comes with a 3 ft Power & Lighting Harness, an EV CAN Jumper Harness, and an EV CAN Harness.
Enhanced Reliability: Supports effective battery management, helping extend battery life and reduce range anxiety.
Gauge Type: EV Battery Level
Signal Type: CAN-Bus (500K baud rate)
Size: 2-1/16 inch (52mm)
Hole Size: 2.10" (54mm)
Included: 3 ft Power & Lighting Harness, EV CAN Jumper Harness, EV CAN Harness
Mount the Gauge: Install into a 2.10" (54mm) hole in your vehicle’s dashboard and secure it with the provided mounting hardware.
Connect Power Harness: Attach the 3 ft Power & Lighting Harness to the appropriate terminals and connect to your vehicle's power and ground sources.
Connect CAN-Bus Harness: Use the EV CAN Jumper and CAN Harness to link the gauge to your EV’s CAN-High and CAN-Low wires.
Verify System Compatibility: Ensure your control unit supports a 500K baud CAN-Bus communication protocol.
Test Operation: Turn on the vehicle and confirm accurate SOC readings on the gauge.
Confirm Warning Light: Simulate a low battery condition to check that the warning activates at 15% charge.
BENEFITS OF USING THE SPEEDHUT 2-1/16" 0-100% EV BATTERY LEVEL GAUGE W/WARNING (FOR2-SC1-EV):
Improves driver awareness with precise battery level feedback, helping reduce range-related stress.
Low battery warning ensures timely charging, minimizing the risk of full depletion.
Easy integration with compatible EV systems simplifies installation and enhances accuracy.
Enables better trip planning and charging station management.
Enhances overall EV safety by monitoring a key performance parameter.
Compact size supports flexible mounting options with minimal dashboard alteration.
Clearly shows battery state of charge using a 0-100% analog display.
Built-in warning light alerts driver when charge drops below 15%.
Interfaces via 500K baud CAN-Bus protocol for accurate data reporting.
Designed to work with major EV control systems like Orion and Thunderstruck.
Fits into a standard 2.10" (54mm) dashboard hole with minimal effort.
Pre-configured wiring harnesses included for simplified installation.
Product identification
- Brand: Speedhut
- Model / MPN: FOR2-SC1-EV
