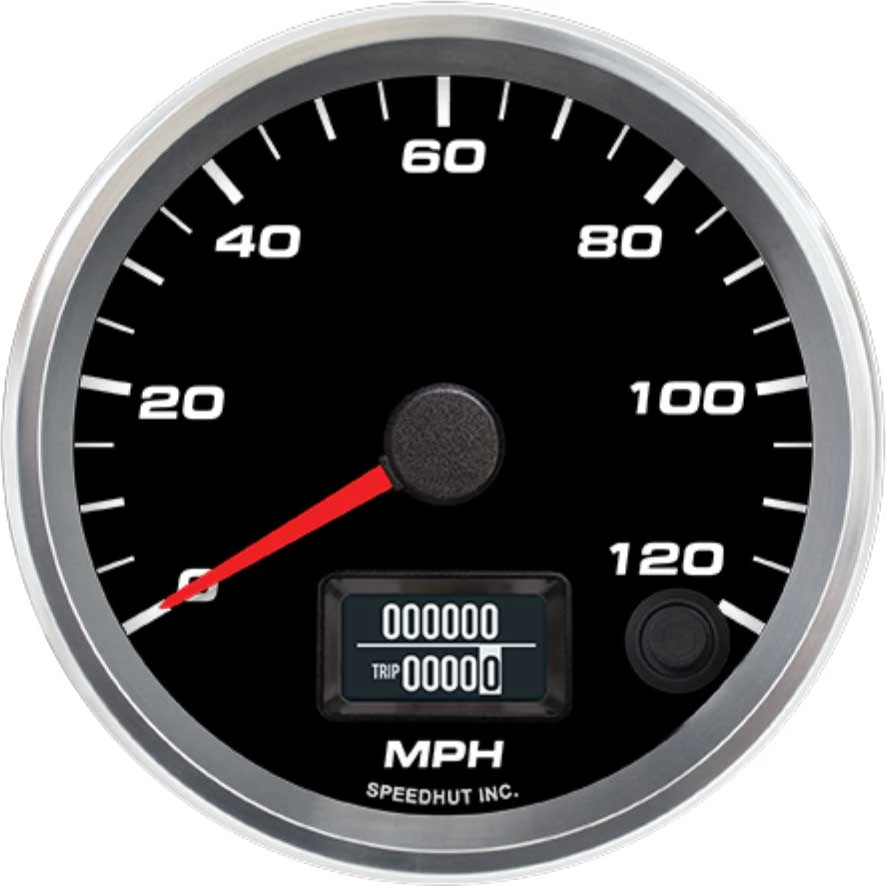

Speedhut 3-3/8" 120 mph Programmable Speedometer (R3-S10-REV)
The Speedhut 3-3/8" 120 mph Programmable Speedometer (R3-S10-REV) is a meticulously engineered instrument designed to provide precise and customizable speed readings for a wide range of vehicles. Its programmable nature ensures compatibility and accuracy, especially in applications where modifications to gear ratios or tire sizes have been made. This gauge offers a reliable and user-friendly solution for monitoring your vehicle's speed with confidence.
KEY FEATURES AND BENEFITS:
Programmable Calibration: Easily calibrate the speedometer to match your specific vehicle's speed sensor, ensuring accurate readings regardless of modifications.
Universal Compatibility: Works seamlessly with any vehicle speed sensor, offering broad application across different makes and models.
User-Configurable Design: Allows for simple adjustments to accommodate various gear ratios and tire sizes, maintaining accuracy.
Pinpoint Accuracy: Features an internal microprocessor that delivers highly accurate speed readings.
Precise Pointer Movement: Equipped with a high-torque stepper motor, guaranteeing accurate pointer movement even in demanding driving conditions.
Gauge Type: Speedometer
Speedometer Signal Type: Electric Programmable
Range: 0-120 MPH
Size: 3 3/8 inch (85mm diameter)
Hole Size: 3.3 inches (84mm)
Standard or Metric: Standard
Included: 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks), 8 ft Programmable Speedometer Wire Harness (LED lit)
Connect the Power and Lighting Harness: Attach the provided 3 ft Power & Lighting Harness to the appropriate power and lighting sources in your vehicle, following your vehicle's wiring diagram and the Speedhut instructions.
Connect the Speedometer Wire Harness: Connect the 8 ft Programmable Speedometer Wire Harness to the speedometer gauge.
Connect to the Speed Sensor: Route the other end of the Speedometer Wire Harness to your vehicle's speed sensor. Ensure proper wiring connections based on the type of speed sensor (two-wire sine wave or three-wire hall effect). Refer to the Speedhut instructions for specific wiring guidance.
Mount the Speedometer: Insert the gauge into the 3.3-inch (84mm) hole in your dashboard. Use the spin-lock ring on the back of the gauge to secure it firmly in place.
Calibrate the Speedometer: Follow the Speedhut calibration procedure. This typically involves driving a measured two-mile distance or inputting the Pulses Per Mile (PPM) value if known. Refer to the detailed calibration instructions provided by Speedhut for precise steps.
Verify Operation: After calibration, test the speedometer at various speeds to ensure accurate readings. Recalibrate if necessary.
BENEFITS OF USING THE SPEEDHUT 3-3/8" 120 MPH PROGRAMMABLE SPEEDOMETER (R3-S10-REV):
Provides accurate speed readings essential for safe driving and legal compliance, especially in modified vehicles.
Programmable calibration allows users to fine-tune the speedometer for various tire and gear configurations.
Streamlined installation and simple calibration process without needing professional tools or skills.
Weather-resistant construction ensures reliable performance in different environments.
Clear display with integrated odometer and trip functions for comprehensive distance tracking.
Effortless Mounting: The slim case and convenient spin-lock ring facilitate quick and easy installation.
Enhanced Aesthetics and Durability: Constructed with a solid billet aluminum bezel, adding a touch of style and ensuring long-lasting durability.
All-Weather Reliability: The weather-resistant design ensures consistent performance in various environmental conditions.
American Quality: Proudly made in America, reflecting superior craftsmanship and quality standards.
Product identification
- Brand: Speedhut
- Model / MPN: R3-S10-REV
