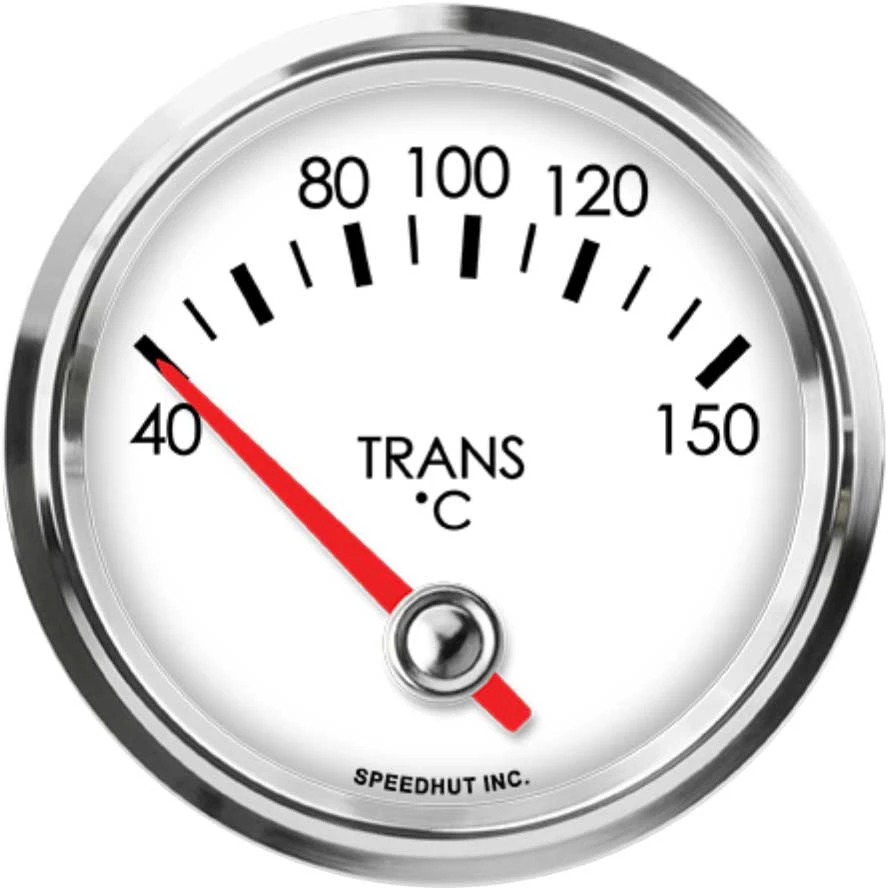

Speedhut 2-5/8" 40-150C Trans Temp Gauge – 90° Sweep (L25-TT4-LEG)
The Speedhut 2-5/8" 40-150C Trans Temp Gauge – 90° Sweep (L25-TT4-LEG) is a vital instrument for monitoring the operating temperature of your vehicle's automatic transmission fluid. By providing accurate and real-time temperature readings in Celsius, this gauge allows you to proactively manage your transmission's health, potentially preventing costly repairs and extending its lifespan. This gauge features a 90-degree sweep for clear visibility of the temperature range between 40°C and 150°C.
KEY FEATURES AND BENEFITS:
Accurate Temperature Monitoring: Provides precise readings of your transmission fluid temperature, ranging from 40°C to 150°C.
Early Problem Detection: Allows you to identify abnormal temperature increases that could indicate issues such as heavy load, low fluid, or internal problems.
Performance Temp Sender: Includes a 2-wire performance temperature sender, likely offering enhanced accuracy and quicker response times.
Metric Measurement: Displays temperature readings in Celsius, a widely used and easily understandable unit.
Complete Wiring Included: Ships with all necessary wiring harnesses for power, lighting (for LED illumination), and connecting the temperature sensor to the gauge, simplifying the installation process.
Standard Size: The 2-5/8 inch gauge diameter is a common size, making it compatible with various gauge pods and mounting solutions.
Gauge Type: Temperature Gauge
Gauge Subtype: Transmission Temperature Gauge
Temp Sender Type: 2-Wire Temp Sender (Performance)
Range: 40-150 °C
Size: 2 5/8 inch
Hole Size: 2.67" (68mm)
Standard or Metric: Metric
Warning Light: No
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Speedhut Temperature Sensor
Temperature Gauge Wiring Harness (2-Wire Cable)
Sensor Installation: Install the included Speedhut temperature sensor into a suitable port on your vehicle's transmission. Ensure a secure and proper connection.
Wiring Connection (Sensor to Gauge): Connect the 2-wire cable from the temperature sensor to the designated terminals on the back of the Speedhut temperature gauge.
Power and Lighting Connection: Connect the 3 ft power and lighting harness to a suitable 12V power source in your vehicle and to the corresponding terminals on the gauge. This harness will also power the LED backlighting.
Gauge Mounting: Mount the 2-5/8 inch gauge into a 2.67" (68mm) diameter hole in your dashboard or a gauge pod, ensuring it is securely fastened and the wiring is routed safely.
Verification: Once all connections are made, start your vehicle and observe the gauge to ensure it is receiving power and displaying the transmission fluid temperature.
BENEFITS OF USING THE SPEEDHUT 2-5/8" 40-150C TRANS TEMP GAUGE – 90° SWEEP (L25-TT4-LEG):
Using the Speedhut 2-5/8" 40-150C Transmission Temperature Gauge provides you with critical insight into your transmission's operating conditions.
Allows for proactive maintenance, potentially preventing overheating and damage that can lead to expensive repairs or premature transmission failure.
Enables adjustments in driving habits, especially when towing or under heavy load, to maintain optimal transmission temperature.
Contributes to the longevity and reliable performance of your vehicle's transmission system.
Clear Metric Display: Presents temperature readings in easily understandable Celsius.
Optimized Sweep Angle: The 90-degree sweep design enhances readability at a glance.
High-Quality Sensor Included: Comes with a performance-oriented 2-wire temperature sender for accurate data.
Comprehensive Wiring Kit: Includes dedicated harnesses for power, illumination, and sensor connectivity.
Durable Construction: Built to withstand the demands of the automotive environment.
Product identification
- Brand: Speedhut
- Model / MPN: L25-TT4-LEG
