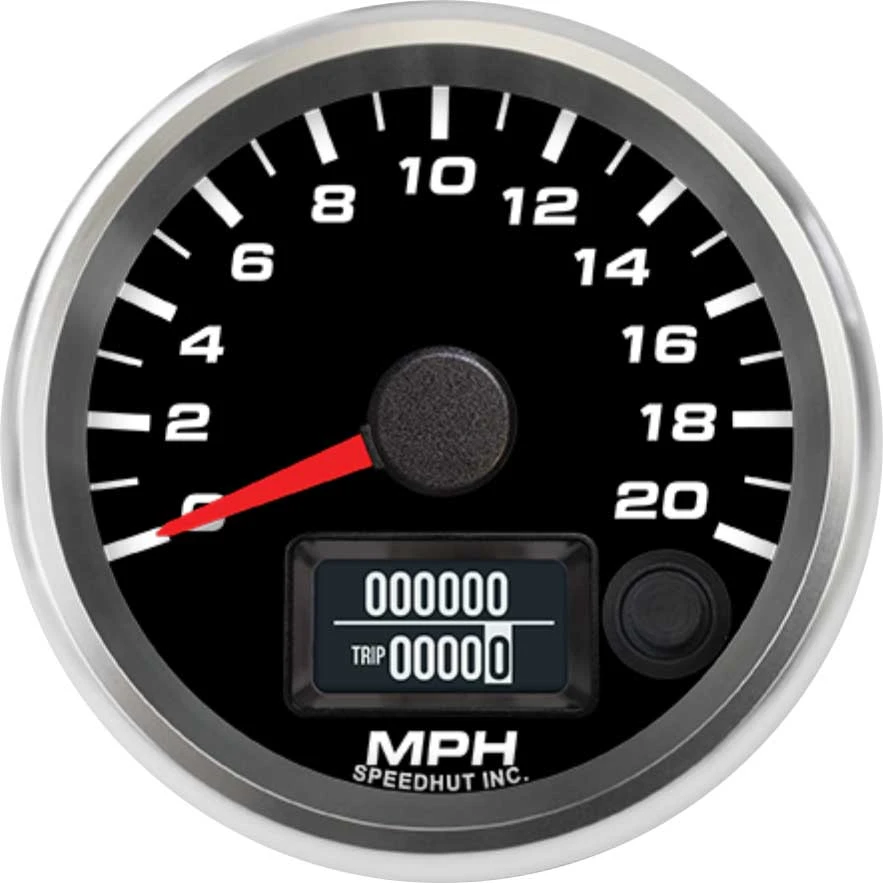

Speedhut 2-5/8" 20 mph GPS Speedometer (R25-S6-REV)
Experience precise speed indication with the Speedhut 2-5/8" 20 mph GPS Speedometer (R25-S6-REV). This gauge offers a straightforward solution for monitoring your vehicle's velocity without the complexities of traditional speed sensors. Utilizing global positioning system technology, it delivers accurate readings directly to a clear LCD screen. Its user-friendly design ensures a simple installation process, making it an excellent choice for various applications.
KEY FEATURES AND BENEFITS:
Accurate Speed Measurement: Employs an internal microprocessor to deliver precise speed readings.
Hassle-Free Installation: Requires only a 12V power connection and the included waterproof GPS antenna, mountable anywhere with a clear sky view.
No Calibration Needed: Eliminates the need to input tire sizes or gear ratios, simplifying the setup process.
Global Operation: Functions worldwide using free GPS technology without any subscription fees.
Precise Pointer Movement: Features a high torque stepper motor for accurate pointer response, even in demanding conditions.
Easy Mounting: Designed with a slim case and a convenient spin-lock ring for quick and secure installation.
Gauge Type: Speedometer
Speedometer Signal Type: GPS
Range: 0 – 20 MPH
Size: 2 5/8 inch (67mm)
Hole Size: 2.67 inches (68mm)
Standard or Metric: Standard (MPH)
3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
GPS Antenna with 9.8 ft long cable and male SMA connector
Gauge Mounting Ring
Mount the Gauge: Insert the 2-5/8" Speedometer into a 2.67" (68mm) diameter opening in your dashboard or mounting panel. Secure it using the included spin-lock ring.
Connect the Power: Connect the 3 ft Power & Lighting Harness to a 12V power source in your vehicle. Ensure proper grounding.
Install the GPS Antenna: Mount the waterproof GPS antenna in a location with a clear, unobstructed view of the sky. This could be on the roof, dashboard, or another suitable flat surface.
Connect the Antenna: Connect the 9.8 ft cable from the GPS antenna to the back of the Speedometer using the male SMA connector.
Power On: Once all connections are secure, power on your vehicle. The Speedometer will acquire a GPS signal and begin displaying your speed. This may take a few seconds upon initial startup or after periods of inactivity.
BENEFITS OF USING THE SPEEDHUT 2-5/8" 20 MPH GPS SPEEDOMETER (R25-S6-REV):
Delivers precise speed measurements using GPS, avoiding inaccuracies of traditional systems.
Requires no complex calibration, saving installation time and effort.
Provides global functionality, ensuring accurate speed readings anywhere in the world.
Constructed for durability and reliability in diverse environments.
Enhanced Aesthetics and Durability: Includes a solid billet aluminum bezel for added strength and a refined look.
Weather Resistance: Built to withstand various environmental conditions, ensuring long-term reliability.
Quality Craftsmanship: Proudly made in America.
Product identification
- Brand: Speedhut
- Model / MPN: R25-S6-REV
