Speedhut L25-FP7-LEG 2-5/8in Fuel Gauge, 0–7 Bar

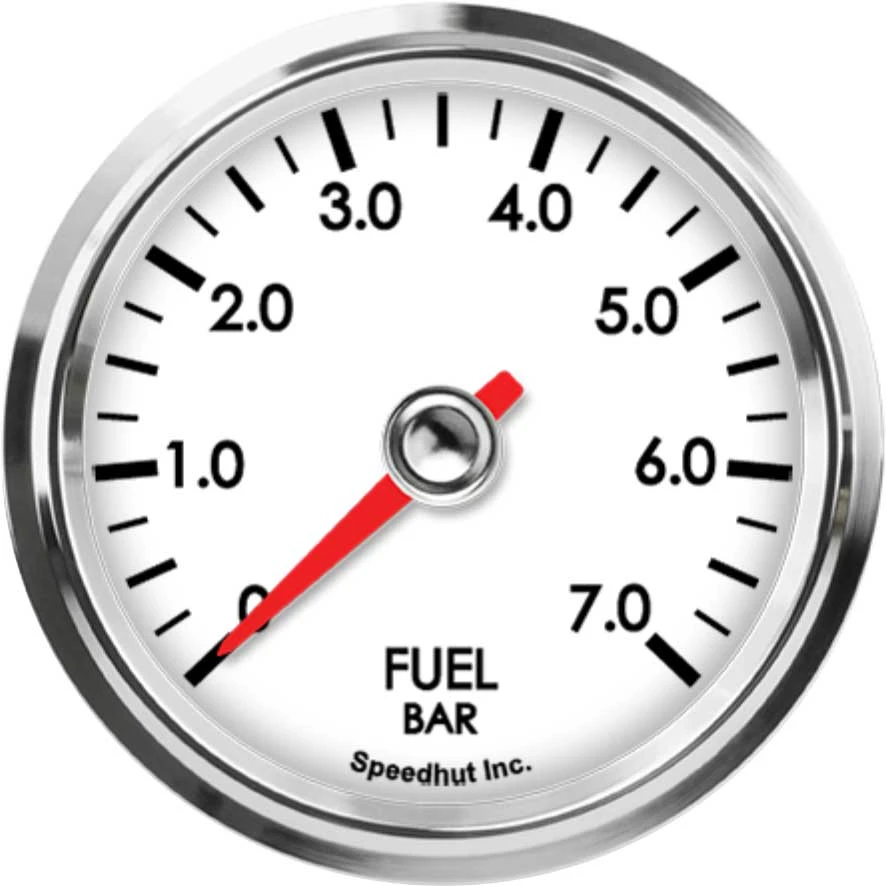

Speedhut L25-FP7-LEG is the larger metric fuel gauge with a 0–7 bar display. Unlike listings that leave the connection unspecified, this model identifies the supplied pressure sensor's 1/8-inch NPT thread, a useful starting point for checking your port.
Specifications and included details
- Fuel-pressure display: 0–7.0 bar.
- Nominal size: 2-5/8 inches; listed opening: 2.67 inches.
- 100PSI three-wire pressure sensor with 1/8-inch NPT thread listed.
- Pressure-signal and 3-foot power/lighting harnesses; LED dial/pointer lighting described.
Before ordering
Verify pressure range and sender compatibility against the manufacturer's documentation. Confirm the port's thread standard and any required adapter; a matching nominal size does not make NPT interchangeable with other threads. Fuel compatibility and rear mounting clearance also need checking.
Product questions and answers
Which thread is specified for the sender?
The listing specifies 1/8-inch NPT for the supplied 100PSI sensor. Confirm your port's exact thread before connecting it.
Is the gauge scale 0–7PSI?
No. The face is marked in bar and runs from 0 to 7.0; the separate sensor specification is stated in PSI.
Is illumination included in the description?
Yes. LED lighting for the dial and pointer is described, with a 3-foot power/lighting harness listed. Follow the model wiring instructions.
