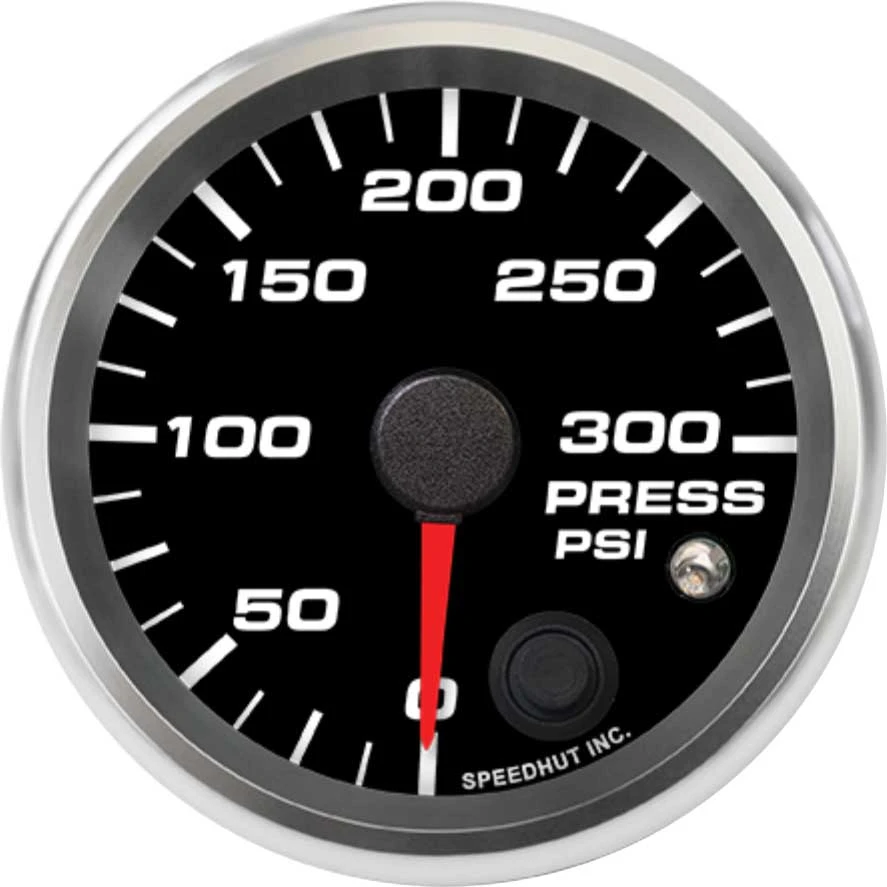

Speedhut 2-5/8" 0-300 PSI Pressure Gauge w/ Warning (R25-P2-REV)
KEY FEATURES AND BENEFITS:
Accurate Pressure Monitoring: Provides precise readings within the 0-300 PSI range, allowing for close observation of system pressures.
High-Performance Sender: Utilizes a 3-wire military-grade transducer, known for its enhanced accuracy and stable signal output, ensuring reliable data.
Configurable Warning Light: Features a settable warning light that alerts the user when pressure levels exceed or fall below a predetermined value, helping to prevent damage.
Easy Installation: Designed with a 2 5/8 inch (67mm) diameter and includes all necessary wiring harnesses for a straightforward setup.
Complete Wiring Included: Ships with a dedicated pressure gauge wiring harness (3-wire cable) and a separate 3 ft power & lighting harness for LED illumination and overall operation.
Durable Construction: Built to withstand the demands of various operating environments, ensuring long-lasting performance.
Clear Visual Display: The 2-5/8" analog face offers easy readability of pressure levels at a glance.
Gauge Type: Pressure Gauge
Range: 0-300 PSI
Size: 2 5/8 inch (67mm)
Hole Size: 2.68" (68mm)
Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
Warning Light: YES
Pressure Gauge Wiring Harness (3-Wire Cable)
Pressure Sensor – 300psi (with 3-Wire Military Grade Transducer)
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Mount the Gauge: Locate a suitable 2.68" (68mm) diameter hole in your desired mounting location. Insert the Speedhut gauge into the hole and secure it using the provided mounting hardware (typically a spin-lock ring).
Install the Pressure Sensor: Identify the point in your system where you need to monitor pressure. Install the included 300 PSI pressure sensor at this location, ensuring a proper and leak-free connection. The sensor typically has a 1/8" NPT thread.
Connect the Sensor Wiring: Attach the 3-wire cable from the pressure gauge wiring harness to the terminals on the 3-wire pressure sensor. Ensure correct polarity and secure connections.
Connect Power and Lighting: Use the 3 ft power & lighting harness. Connect the power wire (typically red) to a 12-16V DC power source that is switched with the ignition. Connect the ground wire (typically black) to a suitable ground point. If your gauge has LED lighting, connect the appropriate wire from this harness to your vehicle's lighting circuit if desired.
Connect the Warning Light: The wiring harness will include a wire for the warning light function. Connect this wire according to the instructions provided with your specific gauge to enable the warning light feature. This may involve connecting to a ground or power source depending on the desired behavior.
Set the Warning Threshold: Refer to the Speedhut gauge's instructions on how to set the desired high or low pressure warning threshold. This typically involves using a button or dial on the gauge face.
Verify Operation: Once all connections are made, turn on your vehicle's ignition. The gauge should illuminate, and the pointer should indicate the current pressure. Test the warning light by simulating a pressure level outside your set threshold.
BENEFITS OF USING THE SPEEDHUT 2-5/8" 0-300 PSI PRESSURE GAUGE W/ WARNING (R25-P2-REV):
Early Problem Detection: The accurate pressure readings allow for the early identification of potential issues within your system, preventing costly damage or failures.
Enhanced Performance Monitoring: By closely tracking pressure levels, you can ensure your system is operating within its optimal parameters for peak performance.
Increased Safety: The integrated warning light provides an immediate visual cue if pressure deviates from the safe operating range, allowing for prompt corrective action.
Reliable Data: The use of a military-grade transducer ensures consistent and trustworthy pressure readings, giving you confidence in the information displayed.
Simplified Installation: The inclusion of all necessary wiring harnesses streamlines the installation process, saving time and effort.
Customizable Alerts: The ability to set your own warning threshold allows you to tailor the alert system to your specific needs and operating conditions.
Provides a clear analog display of pressure from 0 to 300 PSI.
Employs a high-accuracy 3-wire military-specification pressure sensor for dependable readings.
Includes a user-programmable visual warning indicator for critical pressure levels.
Designed with a standard 2 5/8 inch diameter for versatile mounting options.
Requires a 2.68" (68mm) mounting hole for secure installation.
Comes complete with a dedicated 3-wire sensor wiring harness.
Includes a separate 3 ft power and illumination wiring harness for easy electrical connections.
Product identification
- Brand: Speedhut
- Model / MPN: R25-P2-REV
