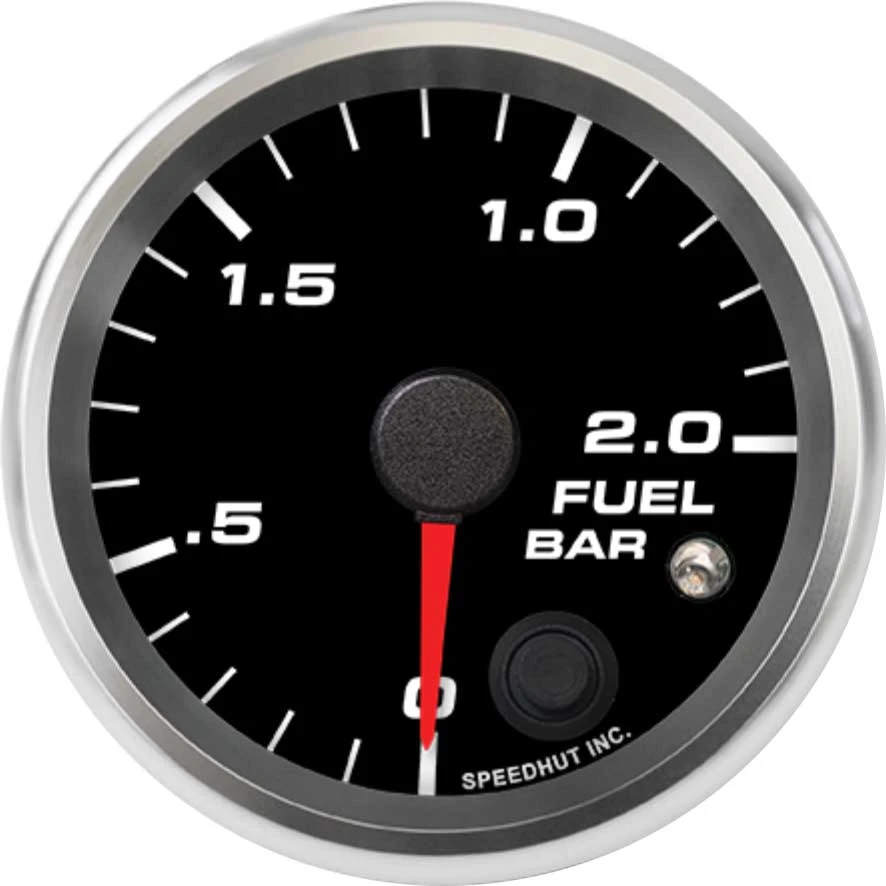

Speedhut 2-5/8" 0-2.0 Bar Fuel Pressure Gauge w/ Warning (R25-FP6-REV)
The Speedhut 2-5/8" 0-2.0 Bar Fuel Pressure Gauge w/ Warning (R25-FP6-REV) is a vital instrument for monitoring your vehicle's fuel system. This metric gauge provides accurate readings of fuel pressure, a critical factor in ensuring optimal engine performance and longevity. Equipped with a high-quality 3-wire military-grade transducer, this gauge delivers reliable and precise measurements. The integrated warning light offers an immediate visual alert if fuel pressure falls outside the safe operating range, allowing for prompt identification and resolution of potential issues. Designed for a 2-5/8 inch mounting hole, this gauge is a practical addition to any vehicle where fuel pressure monitoring is essential for maintenance or performance tuning.
KEY FEATURES AND BENEFITS:
Accurate Monitoring: Provides precise fuel pressure readings in bar (0–2.0 bar), crucial for maintaining engine health.
Reliable Sensor: Features a 3-wire military-grade transducer known for its performance and accuracy.
Early Warning System: Includes a built-in warning light that activates when fuel pressure deviates from the norm, preventing potential engine damage.
Metric Measurement: Displays readings in the metric standard (bar), common in many regions and for specific applications.
Standard Size: The 2-5/8 inch gauge size is a popular and versatile fit for various aftermarket gauge pods and mounting solutions.
Complete Kit: Ships with all necessary wiring harnesses and the pressure sensor for straightforward installation.
Standard or Metric: Metric
Gauge Type: Pressure Gauge
Gauge Subtype: Fuel Pressure Gauge
Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
Range: 0–2.0 bar
Size: 2 5/8 inch
Hole Size: 2.67” (68mm)
Warning Light: Yes
Pressure Gauge Wiring Harness (3-Wire Cable)
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Pressure Sensor – 30 psi
Mount the Gauge: Locate a suitable 2.67” (68mm) diameter opening in your desired mounting location (e.g., gauge pod, dashboard). Secure the Speedhut fuel pressure gauge in this opening.
Install the Pressure Sensor: Identify a suitable point in your vehicle's fuel system to install the included pressure sensor. This is typically on the fuel rail or a designated test port. Ensure a secure and leak-free connection.
Connect the Wiring Harness (Sensor): Attach the 3-wire cable from the pressure gauge wiring harness to the terminals on the 3-wire pressure sensor. Ensure correct polarity and secure connections.
Connect the Power and Lighting Harness: Connect the 3 ft power & lighting harness to the appropriate power and ground sources in your vehicle's electrical system. This harness also powers the gauge's illumination.
Connect Gauge to Harnesses: Plug the wiring harnesses from the sensor and the power/lighting into the corresponding connectors on the back of the Speedhut fuel pressure gauge.
Verify Operation: Once all connections are made, start your vehicle and observe the fuel pressure reading on the gauge. Check that the warning light functions as expected under abnormal pressure conditions (refer to the gauge's specific instructions for warning light behavior).
BENEFITS OF USING THE SPEEDHUT 2-5/8" 0-2.0 BAR FUEL PRESSURE GAUGE W/ WARNING (R25-FP6-REV):
Allows proactive monitoring of a critical engine parameter by displaying real-time fuel pressure.
Ensures accuracy with a high-performance, military-grade transducer.
Provides immediate alerts via a built-in warning light for dangerous pressure conditions.
Enables early detection of fuel system issues to prevent costly engine damage.
Simplifies diagnostics and enhances engine tuning and maintenance accuracy.
Real-time fuel pressure display from 0 to 2.0 bar.
High accuracy 3-wire military-grade transducer included.
Integrated visual warning light for immediate alerts.
Metric pressure display (bar) for international and performance applications.
2-5/8 inch diameter for compatibility with common gauge pods.
Includes dedicated 3-wire cable for pressure sensor connection.
Comes with a 3 ft harness for power and lighting hookup.
Supplied with a 30 psi pressure sensor matched to the gauge’s range.
Product identification
- Brand: Speedhut
- Model / MPN: R25-FP6-REV
