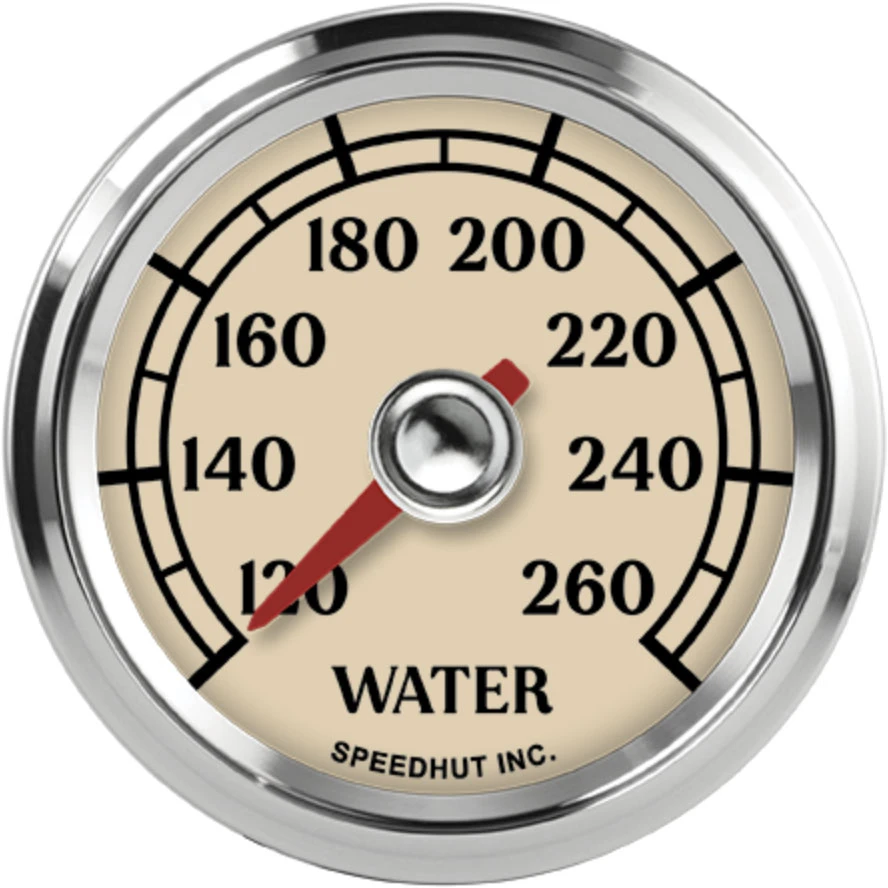

Speedhut 2-1/16" Antique Series 120-260F Water Temp Gauge (L2-WT1-ATQ)
The Speedhut 2-1/16" Antique Series 120-260F Water Temp Gauge (L2-WT1-ATQ) offers a reliable and classic way to monitor your engine's coolant temperature. Designed with a vintage aesthetic, this gauge seamlessly integrates into vehicles with a traditional style. It provides accurate readings within a range of 120 to 260 degrees Fahrenheit, allowing you to keep a close eye on this critical engine parameter. This gauge kit includes everything needed for installation, ensuring a straightforward setup process.
KEY FEATURES AND BENEFITS:
Accurate Temperature Monitoring: Provides precise readings of your engine's coolant temperature, helping you prevent overheating and potential engine damage.
Classic Antique Styling: Features a design that complements vintage and classic vehicle interiors.
Wide Measurement Range: Monitors temperatures from 120 to 260 degrees Fahrenheit, suitable for most automotive applications.
Complete Installation Kit: Includes a 2-wire performance temperature sender and all necessary wiring harnesses for a hassle-free installation.
Compact Size: The 2 1/16 inch diameter allows for installation in various gauge pods and mounting locations.
Gauge Type: Temperature Gauge
Range: 120-260 F
Size: 2 1/16 inch
Hole Size: 2.10 inches (54mm)
Standard or Metric: Standard (Fahrenheit)
Warning Light: No
Temperature Gauge Wiring Harness (2-Wire Cable)
Speedhut Temperature Sensor (2-Wire Performance)
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Mount the Gauge: Choose a suitable location in your vehicle and create a 2.10-inch (54mm) diameter hole. Insert the gauge into the hole and secure it.
Install the Temperature Sensor: Locate a suitable port in your engine's coolant system (e.g., thermostat housing, intake manifold) and install the included Speedhut temperature sensor. Ensure a proper seal to prevent leaks.
Connect the Sensor Wiring: Connect the two wires from the Temperature Gauge Wiring Harness to the terminals on the Speedhut temperature sensor.
Connect the Power and Lighting: Connect the 3 ft Power & Lighting Harness to a suitable 12V power source in your vehicle (typically an ignition-switched source) and to a ground. If your gauge has backlighting, connect the appropriate wire to your vehicle's lighting circuit if desired.
Connect Gauge to Harnesses: Plug the wiring harnesses from the sensor and power/lighting into the corresponding connectors on the back of the Speedhut temperature gauge.
Test the Gauge: Start your vehicle and allow it to reach operating temperature. Observe the gauge to ensure it is providing accurate temperature readings.
BENEFITS OF USING THE SPEEDHUT 2-1/16" ANTIQUE SERIES 120-260F WATER TEMP GAUGE (L2-WT1-ATQ):
Allows you to proactively monitor your engine's coolant temperature, providing crucial information about engine health.
Enables early detection of potential overheating issues, helping to prevent costly damage.
The classic styling enhances the interior of vintage vehicles while offering modern accuracy and reliability.
Includes a high-performance temperature sender for precise readings, giving confidence in displayed information.
Authentic Antique Design: Offers a nostalgic look with classic numerals and styling.
High-Accuracy Readings: Provides precise temperature information thanks to the performance 2-wire sender.
Plug-and-Play Wiring: Simplifies the installation process with included, specific wiring harnesses.
Durable Construction: Built with quality materials for long-lasting performance.
Clear and Easy-to-Read Display: Allows for quick and effortless monitoring of temperature levels.
Product identification
- Brand: Speedhut
- Model / MPN: L2-WT1-ATQ
