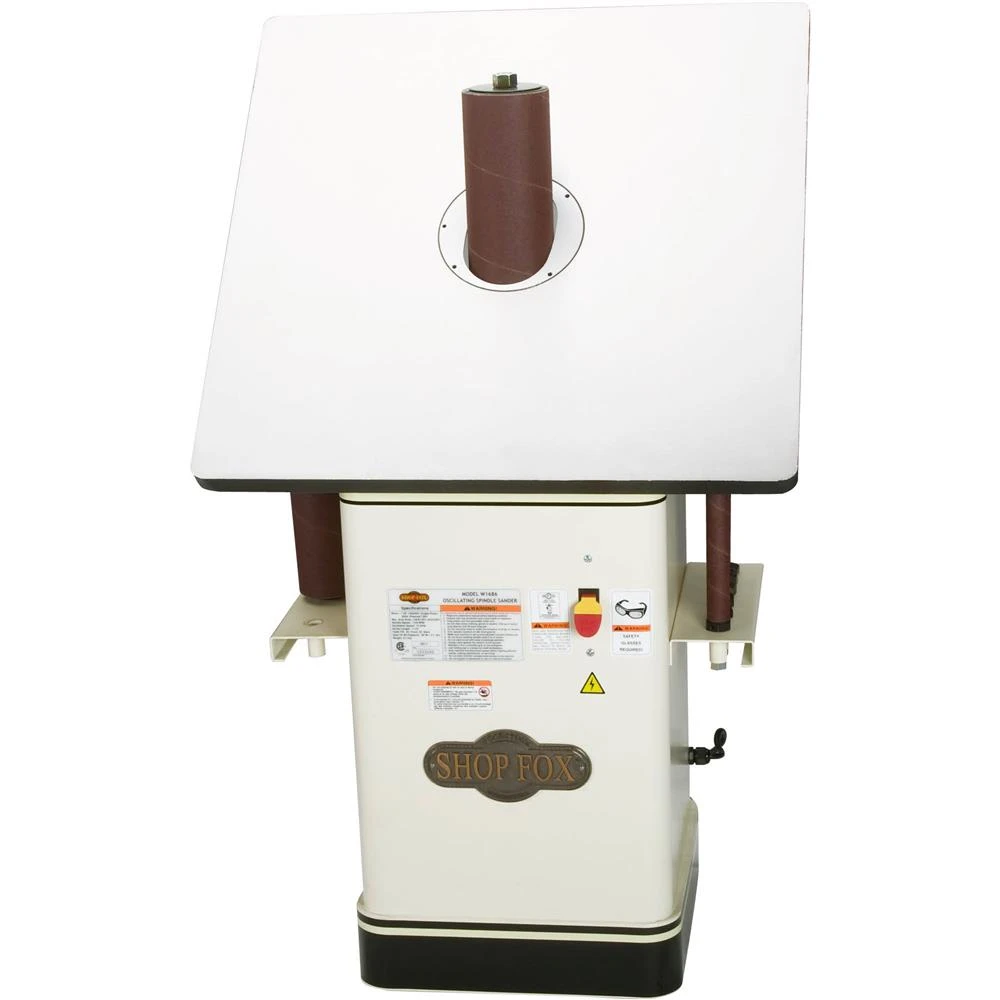

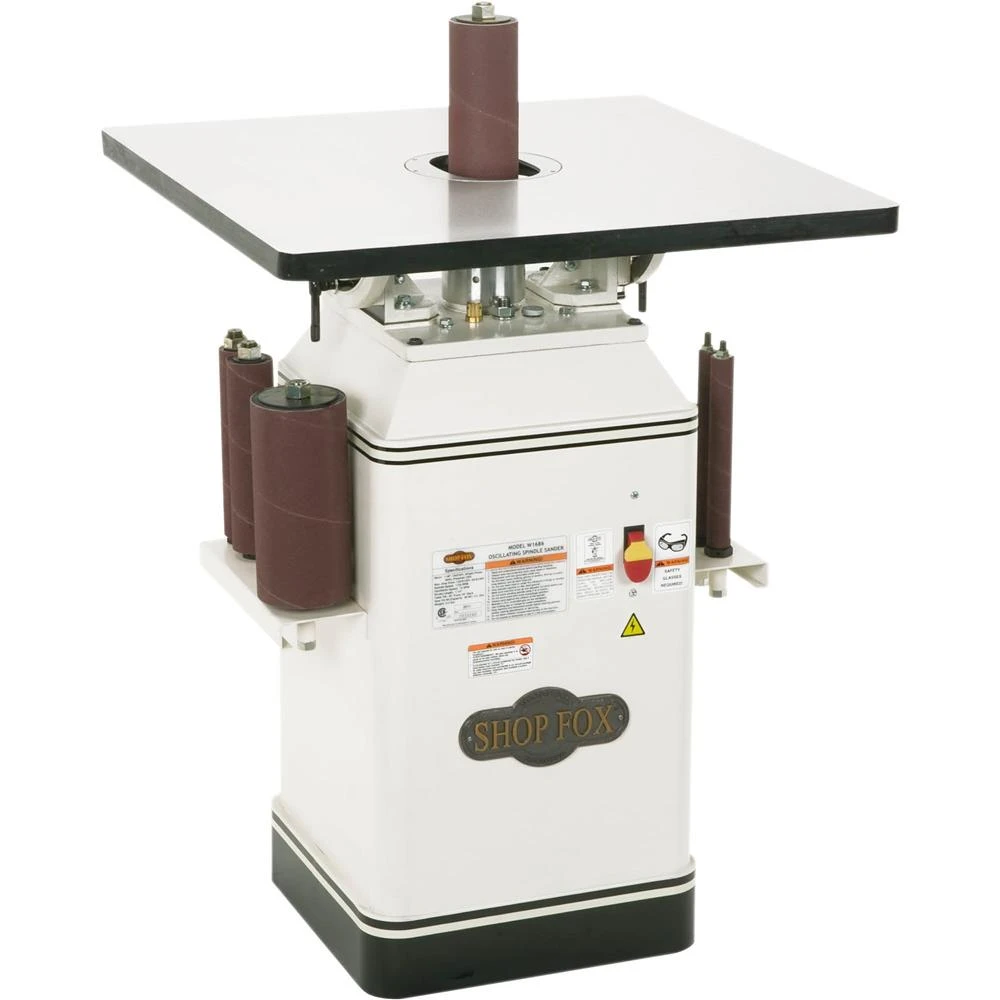

Shop Fox 1 HP Oscillating Spindle Sander with Cast-Iron Table (W1686)
Shop Fox 1 HP Oscillating Spindle Sander with Precision-Ground Cast-Iron Table (W1686) is designed for precision and versatility in sanding applications. This heavy-duty sander features a large 25-1/4" x 25-1/4" precision-ground cast-iron table, making it ideal for handling oversized workpieces with ease. The 1 HP motor ensures smooth operation, even on the hardest woods.
Built to meet the needs of both professional woodworkers and serious hobbyists, the Shop Fox oscillating sander W1686 offers ten spindle sizes, a tilting table, and a powerful motor.
Specifications and Dimensions
Motor size: 1 HP, 120V/240V, pre-wired 120V, 12A/6A, TEFC motor
Precision-ground cast-iron table

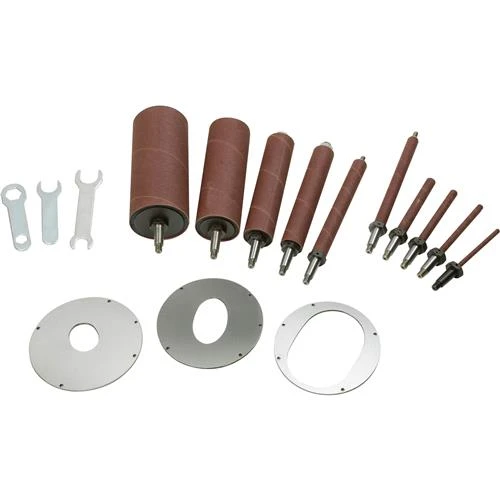

Ten spindle sizes: 1/4" x 5", 3/8" x 6", 1/2" x 6", 5/8" x 6", 3/4" x 9", 1" x 9", 1-1/2" x 9", 2" x 9", 3" x 9", 4" x 9", tapered and threaded
Table tilt: 45° front and 20° back
Table size: 25-1/4"L x 25-1/4"W
Spindle speed: 1725 RPM
Oscillation speed: 72 SPM
Stroke length: 1-1/2"
Powder-coated finish
100-grit sanding sleeve included for each spindle drum
Footprint: 16" x 16"
Key Features and Benefits
Powerful 1 HP motor for efficient sanding
Large precision-ground cast-iron table for stability
Ten spindle sizes for versatile sanding applications
Tilting table for angled sanding
Heavy-duty construction for durability
Product identification
- Brand: Shop Fox
- Model / MPN: W1686
