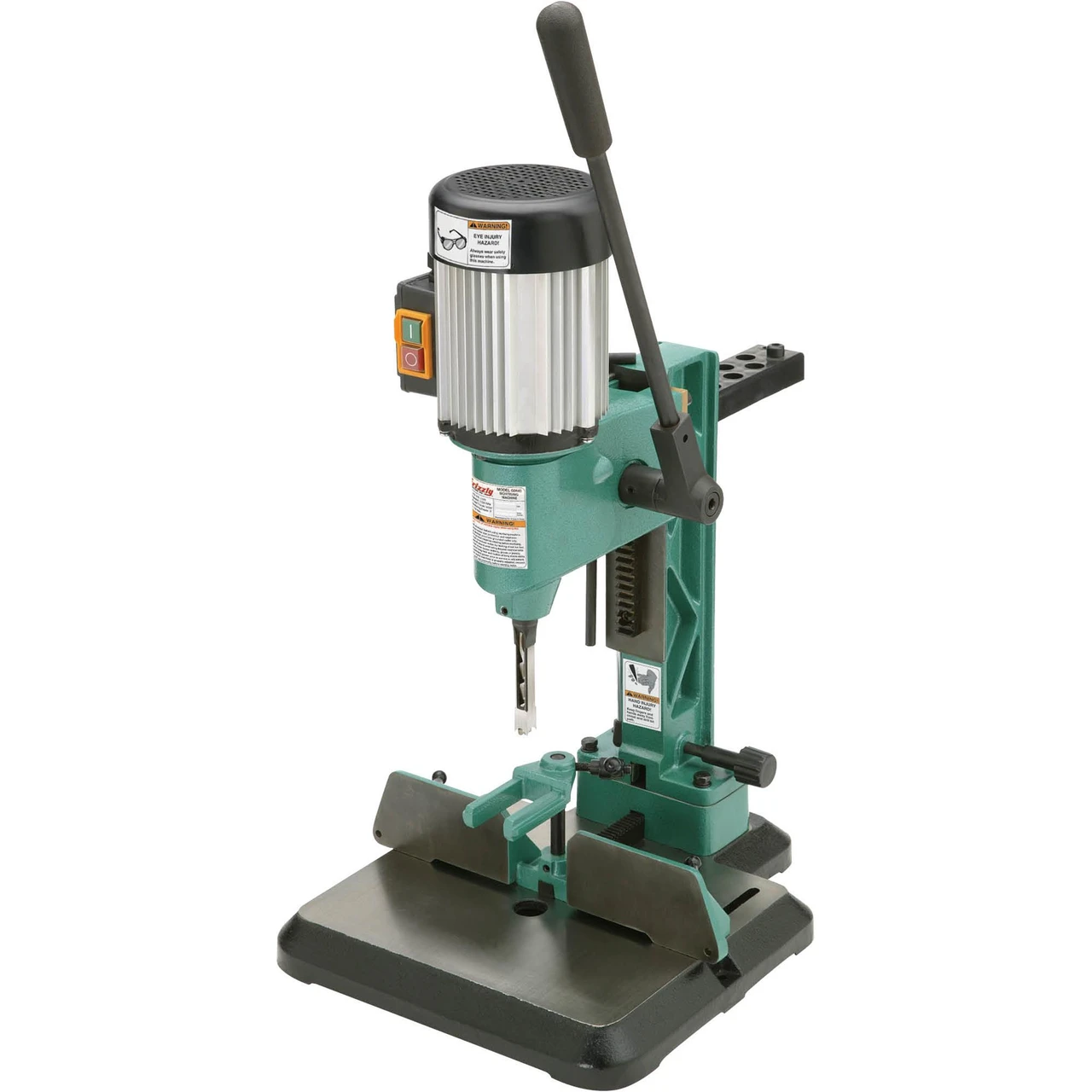

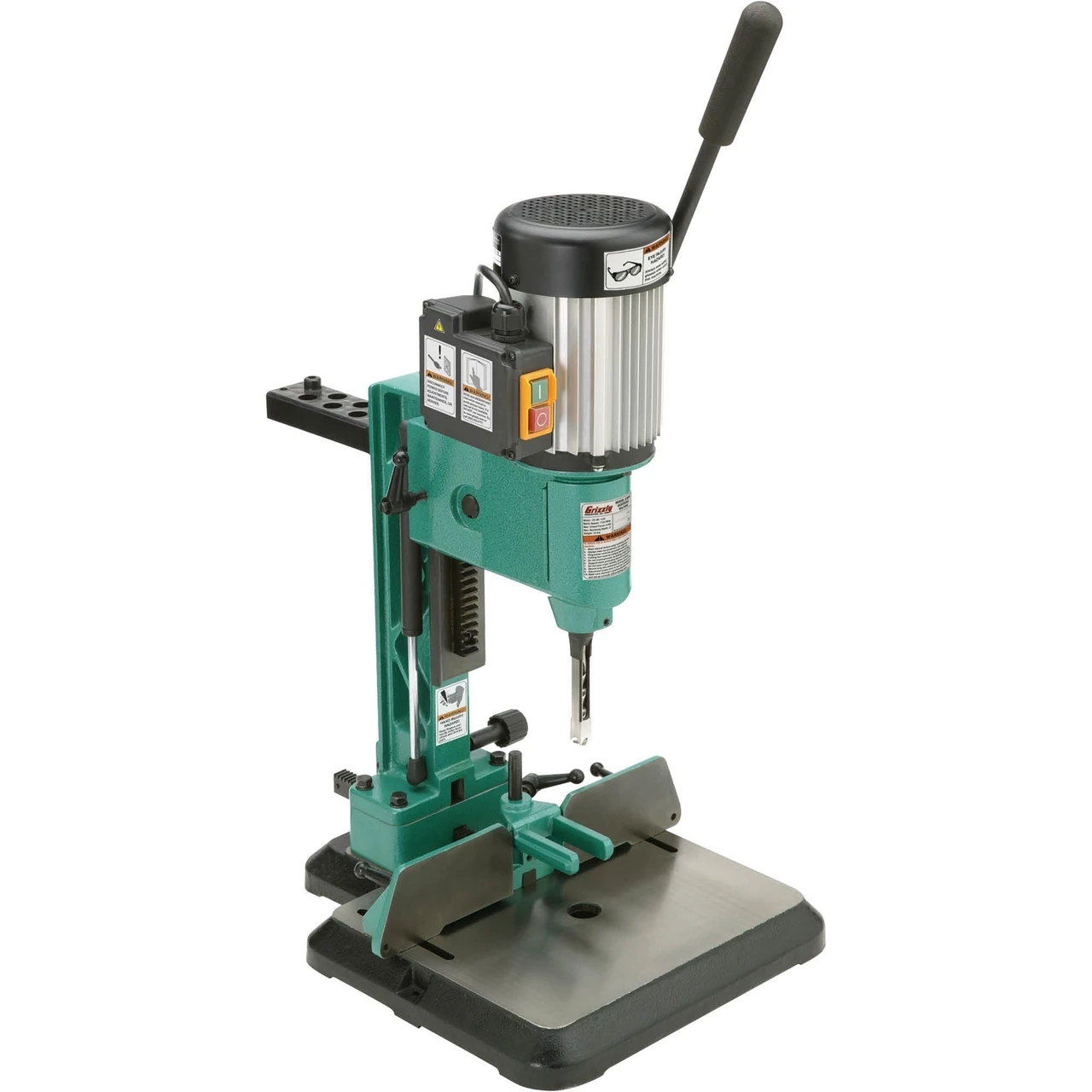

Grizzly Industrial 1/2 HP Benchtop Mortising Machine (G0645)

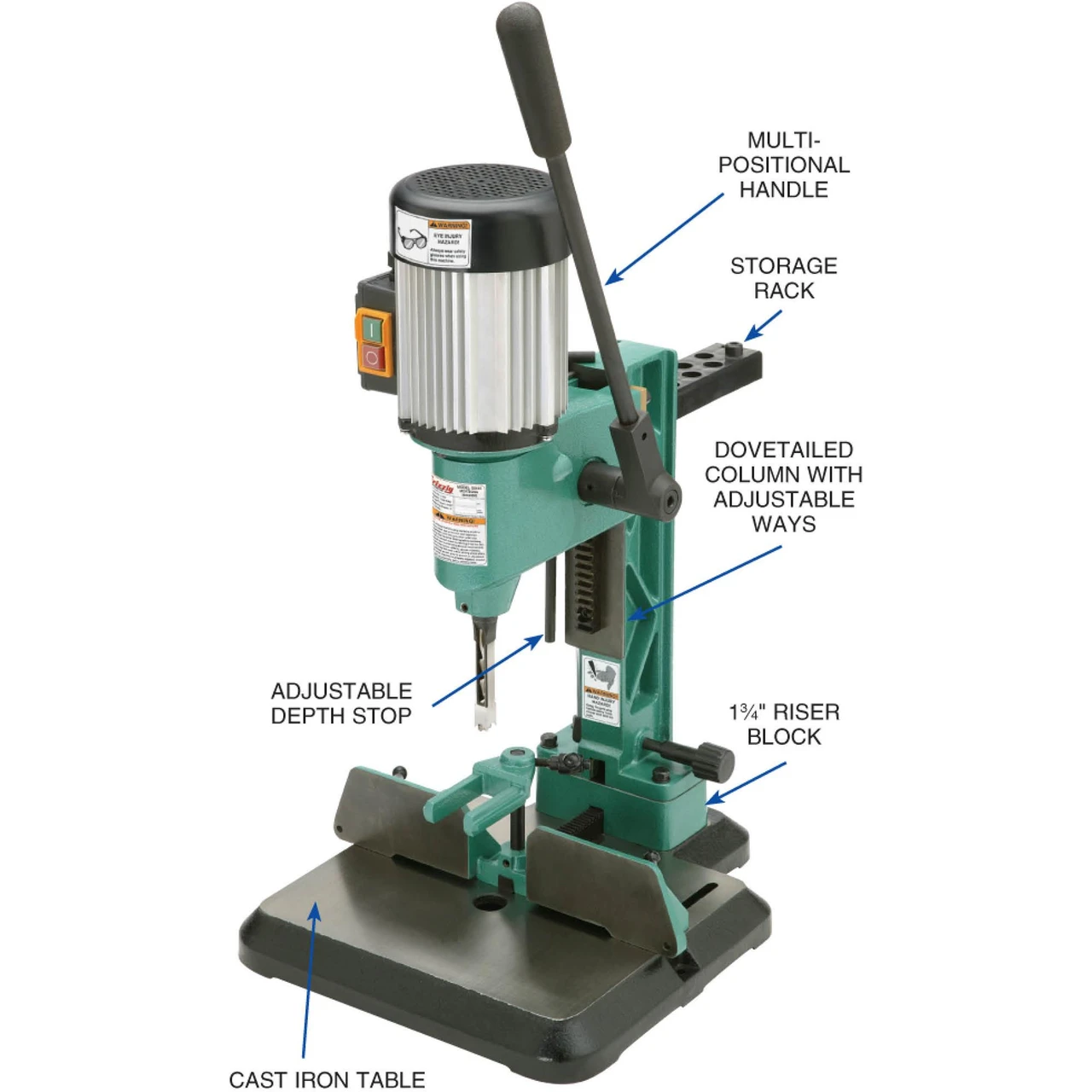

Grizzly Industrial 1/2 HP Benchtop Mortising Machine (G0645) provides an efficient solution for cutting square mortises in wood. With its rack-and-pinion fence, dovetailed column, and cast-iron construction, this mortiser ensures precision and stability for every project.
This mortising machine is powered by a 1/2 HP motor running at 1725 RPM, capable of handling hardwood with ease. The adjustable depth stop and multi-positional handle enhance control, while the tool storage rack adds convenience. Four chisels (1/4", 5/16", 3/8", and 1/2") come included, ensuring versatility for various project requirements.
Specifications and Dimensions
Motor: 1/2 HP, 110V, single-phase, 6A
Spindle speed: 1725 RPM
Spindle taper: JT #2
Spindle travel: 3-1/4"
Maximum stock width: 8-1/2"
Maximum stock thickness without extension block: 4-1/4"
Maximum stock thickness with extension block: 6"
Maximum mortising depth: 3"
Maximum chisel travel: 4-5/8"
Maximum distance column to chisel: 5"
Chisel size range: 1/4"–1/2"
Chuck capacity: 3/8"
Collar size: 5/8"
Table size: 10-1/2" x 12-1/4"
Overall dimensions: 13-3/4" W x 29" D x 32" H
Key Features and Benefits
Efficient mortising with a rack-and-pinion fence
Includes 1-3/4" riser block to increase stock thickness to 6"
Durable cast-iron construction ensures stability
Includes four chisels: 1/4", 5/16", 3/8", and 1/2"
Product identification
- Brand: Grizzly Industrial
- Model / MPN: G0645
