Carbide insert details

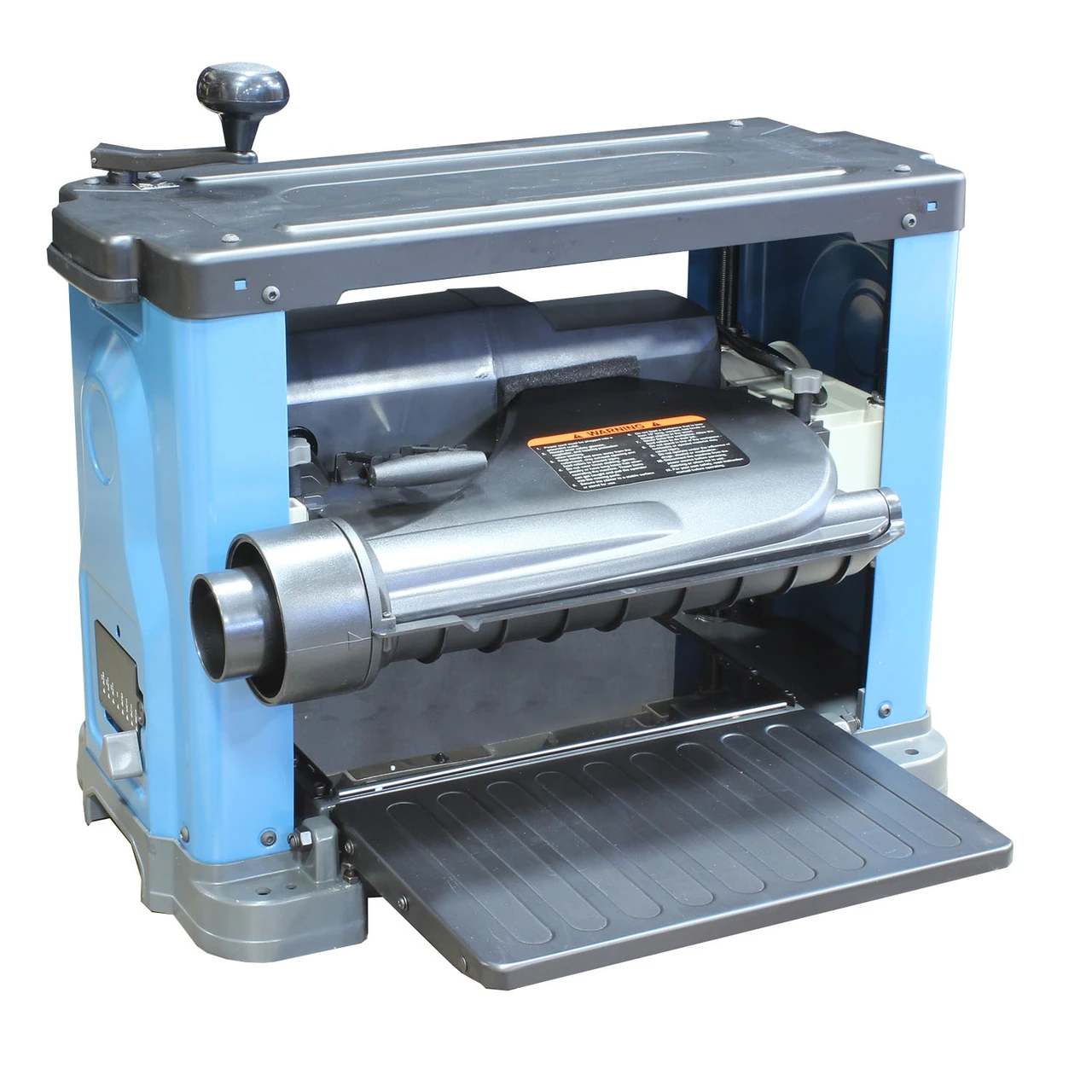

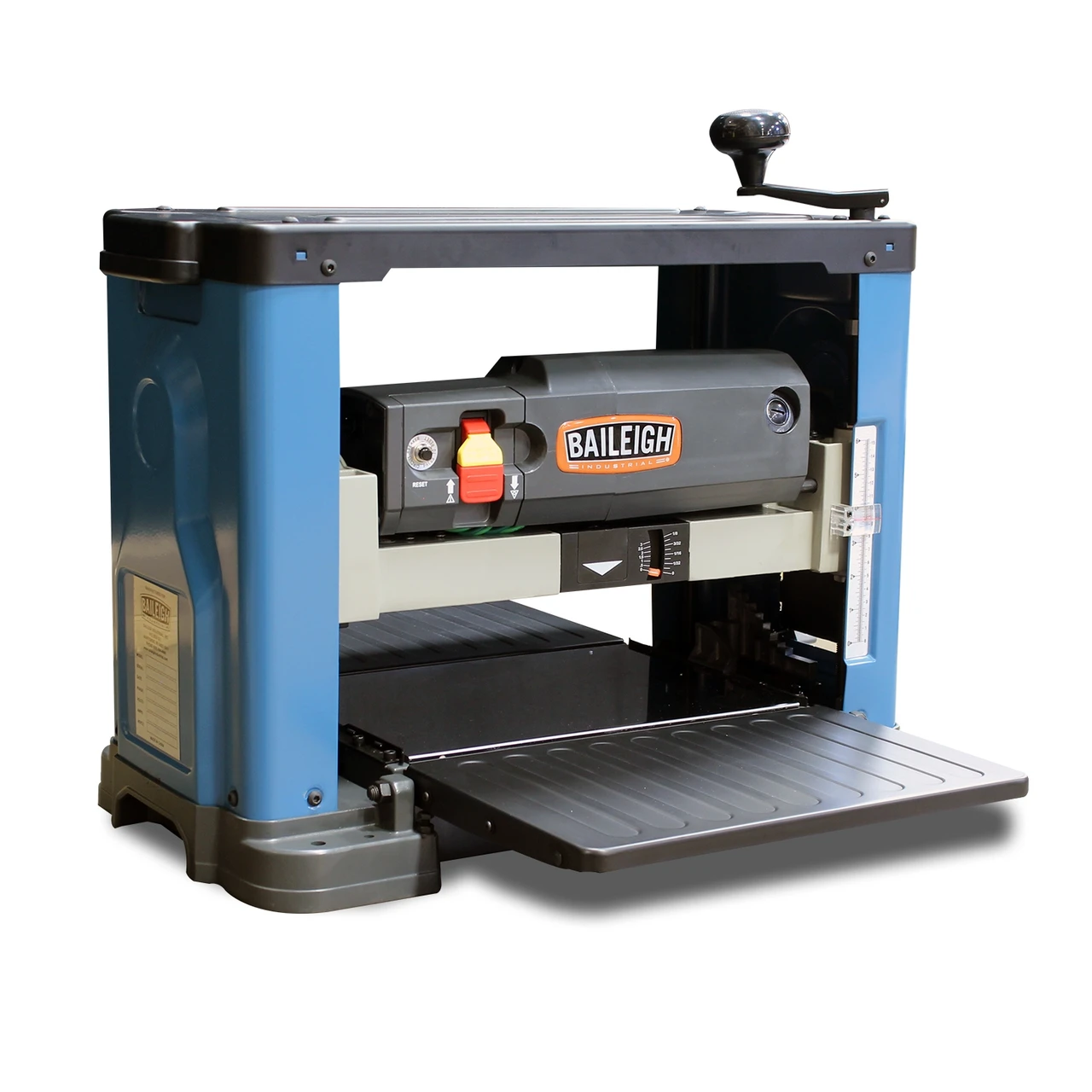

Baileigh 110V 13in Benchtop Planer w/ Tungsten Carbide Insert Cutting Head (1020164)
Baileigh 110V 13in Benchtop Planer w/ Tungsten Carbide Insert Cutting Head (1020164) is perfect for hobbyists and small shops. This compact planer is easily portable yet delivers the performance of a much larger unit. Powered by a 2 hp, 15 AMP motor, it turns the cutter head at 10,000 rpm.
The tungsten carbide planer features a spiral-style cutter head with 26 two-sided carbide inserts, providing a maximum cutting height of 6 inches and a cut depth of up to ⅛ inch. The large table, expandable to 13” x 27 ½”, keeps your boards flat and straight. The planer includes 2½” and 4” dust ports for easy dust collection.
Specifications and Dimensions
Net Weight: 80 lbs
Cutterhead Diameter: 2 in.
Dust Port Outside Diameter: 4 in.
Model Number: IP-1306
Motor Power: 2 HP
Motor Voltage: 110V
Number of Knives: 26
Prewired Voltage: 110V
Table Height from Floor: Manual
Key Features and Benefits
2 hp, 15 AMP motor with 10,000 rpm cutter head

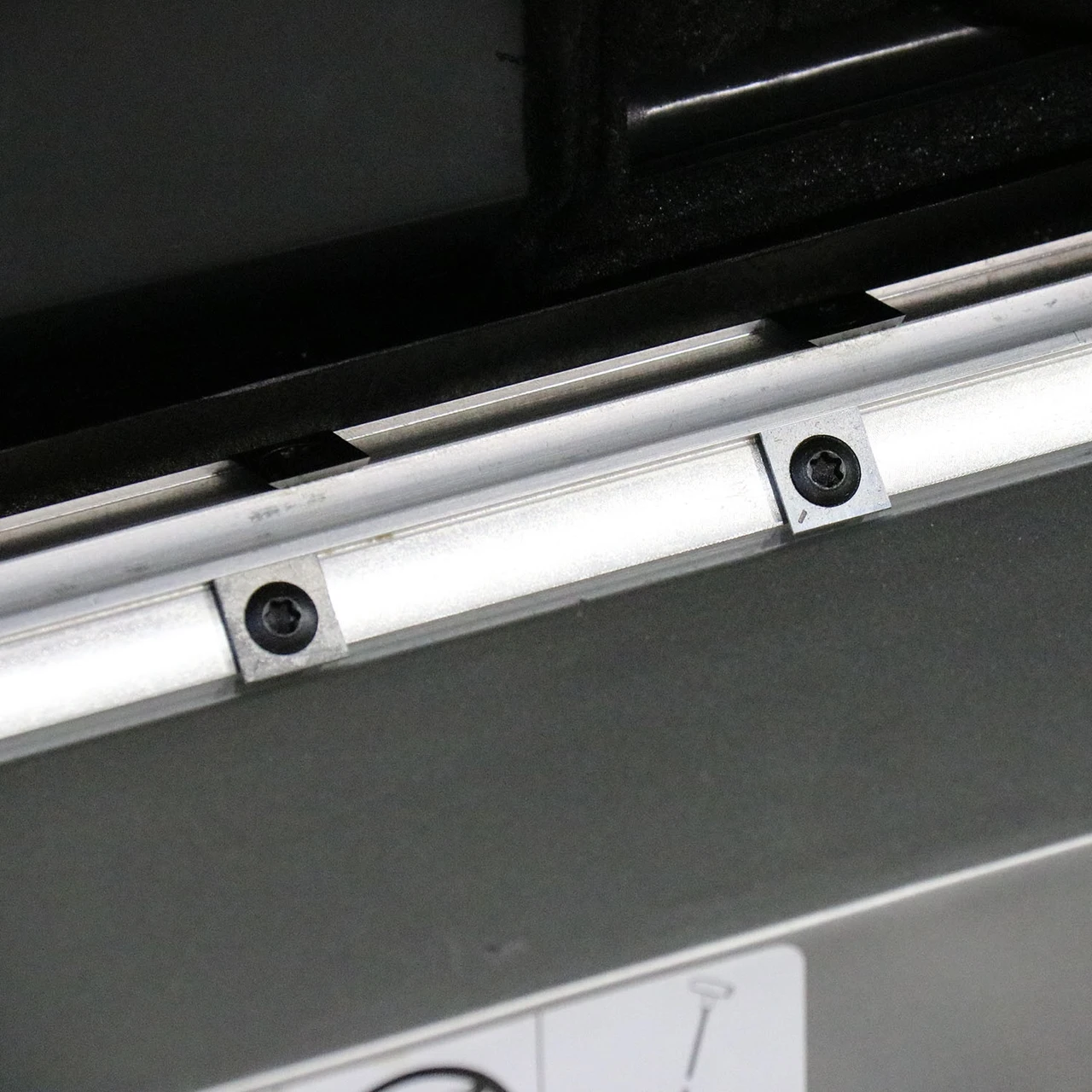

Spiral-style cutter head with 26 carbide inserts
6” maximum cutting height and up to ⅛” cut depth
Expandable table to 13” x 27 ½” for stability

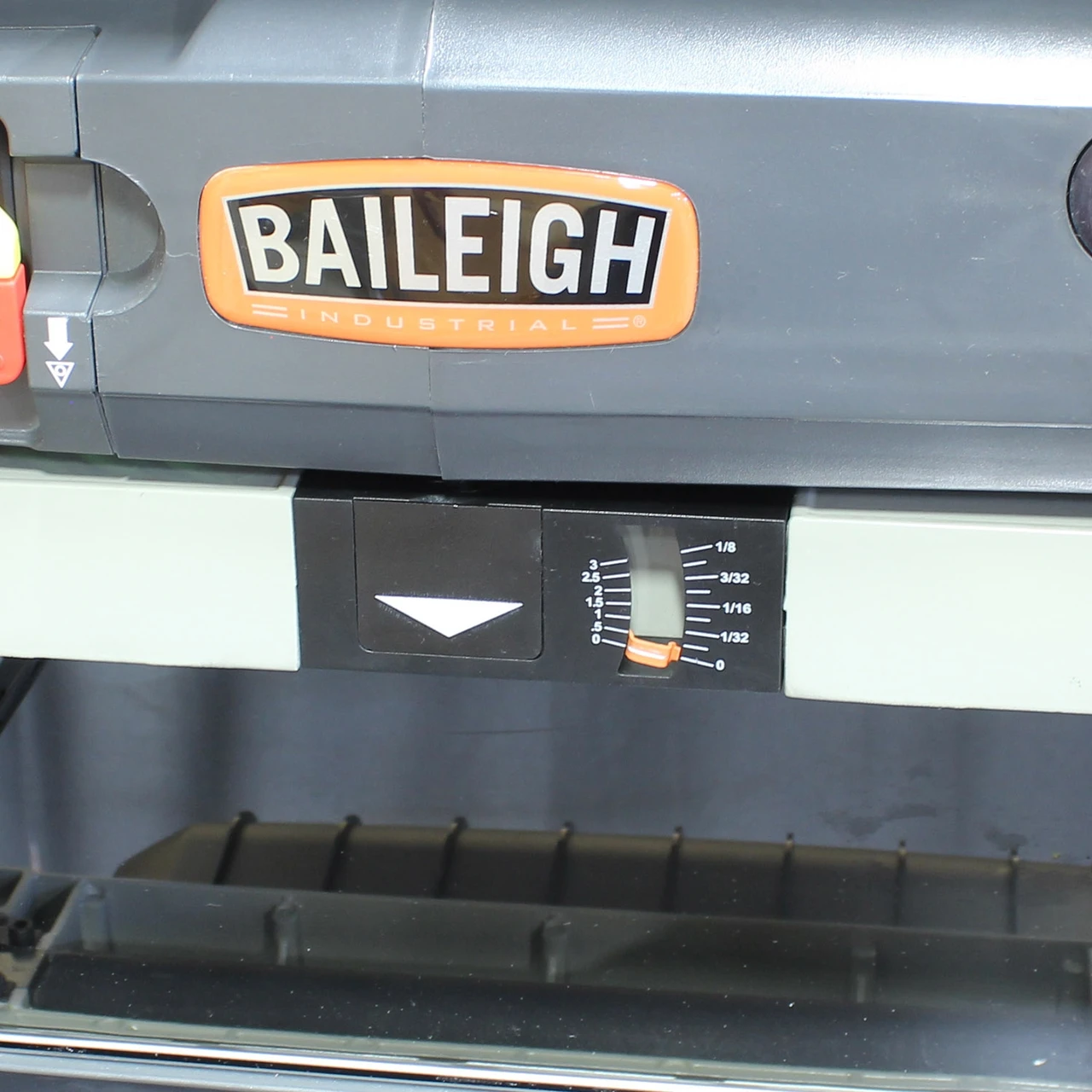

Sliding quick set depth stop for easy adjustments
2½” and 4” dust ports for effective dust collection
Compact and portable design for easy transport
Product identification
- Brand: Baileigh
- Model / MPN: 1020164
