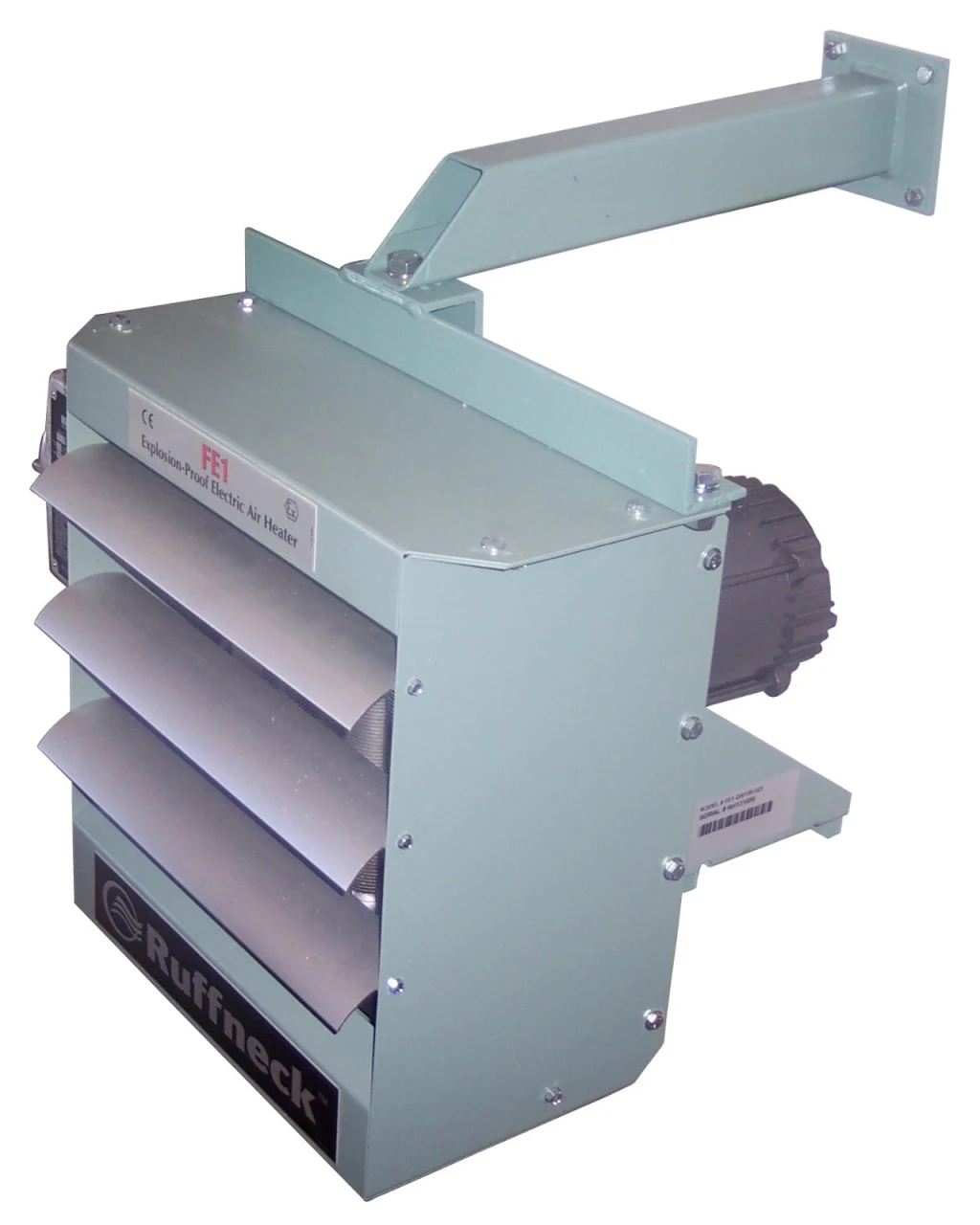

Ruffneck FX5/FX6 12" Frame Basic Mounting Kit (9724)
The Ruffneck FX5/FX6 12" Frame Basic Mounting Kit (9724) provides a foundational solution for installing Ruffneck™ FX Series Explosion-Proof Forced Air Heaters with a 12-inch fan frame. This kit is specifically engineered to offer a stable and secure attachment point, allowing your Ruffneck™ heater to be directly bolted or welded to structural steel or concrete. Crafted from steel with a protective wet-applied enamel paint finish, the 9724 mounting kit is built to withstand the demands of industrial environments, ensuring your heater remains safely and effectively positioned for optimal performance. It is an essential component for achieving proper installation and long-term stability of your Ruffneck™ FX5 or FX6 heater in hazardous location applications.
KEY FEATURES AND BENEFITS:
Secure Heater Placement: Facilitates robust and stable mounting of Ruffneck™ FX5 and FX6 12-inch frame heaters, preventing movement and ensuring operational integrity.
Direct Structural Attachment: Designed for direct bolting or welding to structural steel or concrete, providing versatility in installation points within industrial facilities.
Corrosion Resistance: Features a wet-applied enamel paint finish on steel construction, offering protection against environmental factors and contributing to the kit's longevity.
Optimal Airflow Maintenance: Supports the heater at a height that allows for proper air circulation around the fan motor, crucial for efficient cooling and heater performance.
Easy Servicing Access: When installed correctly, the kit helps ensure sufficient clearance around the heater, simplifying maintenance tasks such as fan or motor replacement.
Model Number: 9724
Compatibility: Ruffneck™ FX Series Explosion-Proof Forced Air Heaters (FX5/FX6) with 12" fan frame
Material: Steel with wet-applied enamel paint
Product Weight: 23 lbs
Maximum Suspended Weight (Heater + Kit): 300 lbs (136 kg)
Clearance Requirement (behind fan motor): 2 inches
Select Mounting Location: Identify a structurally sound location (e.g., structural steel beam, concrete wall/ceiling) capable of supporting the combined weight of the heater and the mounting kit (not exceeding 300 lbs). Ensure adequate clearance (at least 2 inches behind the fan motor) and around the heater for servicing.
Prepare Mounting Surface: If bolting, mark and drill appropriate holes on the structural support according to the mounting arm's hole pattern. If welding, prepare the surface for a secure weld.
Attach Mounting Arm: Securely fasten the mounting arm of the kit to the prepared structural support using appropriate bolts, lockwashers, and nuts, or by welding. Ensure the connection is tight and stable.
Lift and Align Heater: Carefully lift the Ruffneck™ FX5 or FX6 12" frame heater into position, aligning the threaded holes on the top of the heater cabinet with the attachment points on the mounting arm.
Secure Heater to Kit: Insert 5/8" NC bolts (and lockwashers if applicable, especially for transportable applications) into the threaded holes on the heater cabinet and tighten them securely to the mounting arm.
Verify Stability: After installation, visually inspect and gently test the stability of the mounted heater to ensure it is firmly attached and does not wobble.
BENEFITS OF USING RUFFNECK FX5/FX6 12" FRAME BASIC MOUNTING KIT (9724):
Provides a dedicated and engineered solution for safe installation of Ruffneck explosion-proof heaters.
Contributes to the longevity of the heater by ensuring correct positioning and necessary ventilation.
Simplifies compliance with installation guidelines for hazardous environments.
Offers a straightforward and dependable method for heater suspension.
Reduces potential for damage to the heater or surrounding structures from improper mounting.
Specifically designed for 12-inch fan frame Ruffneck™ FX5 and FX6 series heaters.
Constructed from robust steel for structural integrity.
Finished with a wet-applied enamel paint for enhanced protection.
Accommodates direct bolting or welding to building structures.
Allows for proper heat distribution by positioning the heater effectively.
Supports consistent operation by providing a stable base.
Includes necessary hardware for initial setup.
Ensures heater remains securely elevated above floor level.
Helps prevent accidental contact with heater components.
Supports servicing access to the heater's interior.
Product identification
- Brand: Ruffneck
- Model / MPN: 9724
