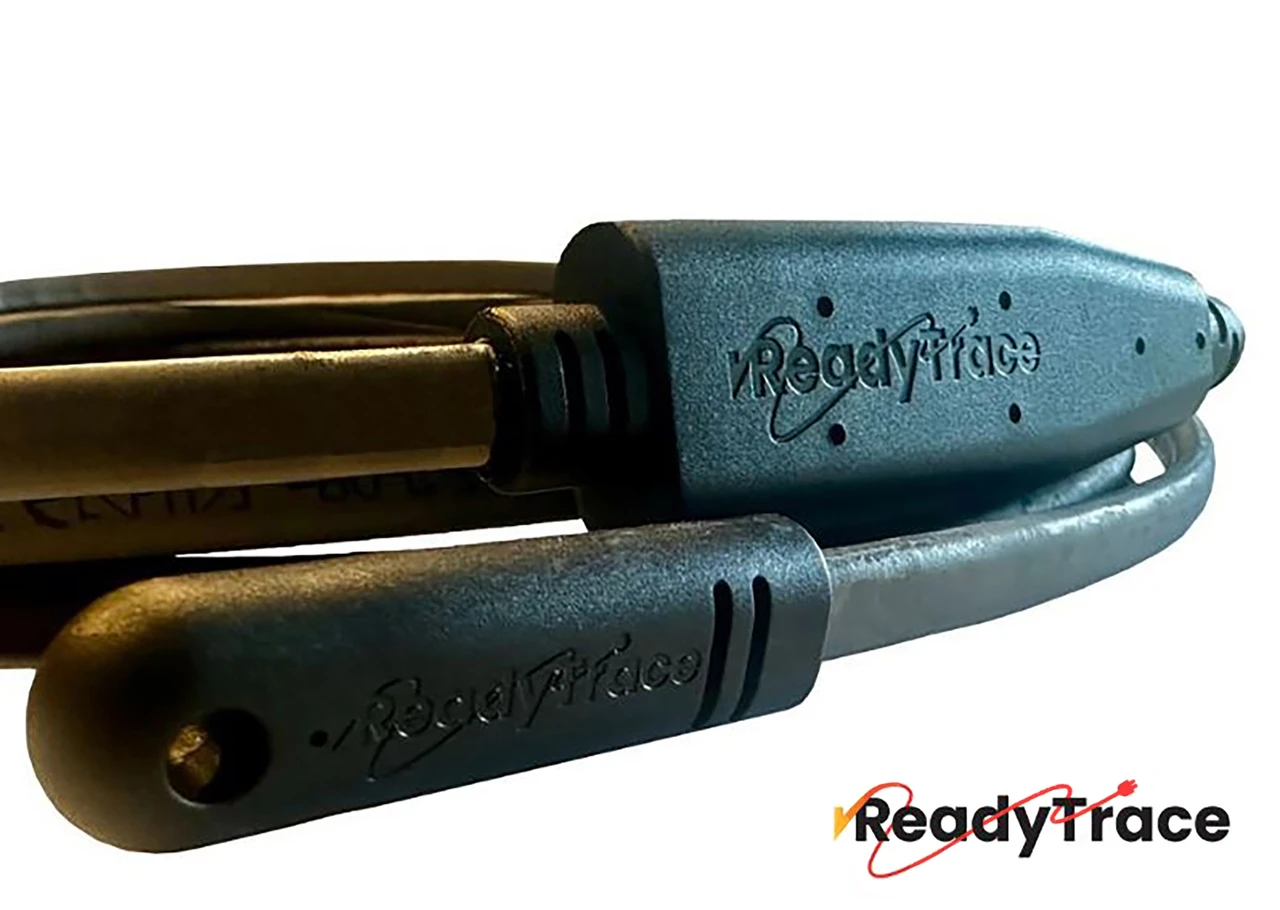

ReadyTrace 36 ft. Self-Regulating Heat Trace Cables (READYTRACE-036)
KEY FEATURES AND BENEFITS:
Self-Regulating Technology: Automatically adjusts heat output based on ambient temperature, increasing power in cold conditions and decreasing it as temperatures rise, ensuring energy efficiency and preventing overheating.
Versatile Protection: Ideal for preventing freezing and rupture in small and medium-diameter pipes, managing ice buildup on roofs and in gutters, and keeping drainage systems free-flowing.
Hassle-Free Installation: Comes pre-assembled with a lighted NEMA 5-15 plug for direct connection to a GFCI-protected circuit, simplifying setup. Flexible materials allow for excellent bending radius around complex structures.
Commercial-Strength Resilience: Manufactured from premium components designed to withstand demanding environmental conditions and frequent freeze-thaw cycles, ensuring long-term performance.
USA Made Quality: Proudly designed and manufactured in the United States, reflecting a commitment to high standards of quality and innovation.
Model #: READYTRACE-036
Amperage (High – Freeze Protection): 1.8 Amps
Amperage (High – Roof Snow & Ice Removal): 2.4 Amps
Wattage (High – Freeze Protection): 216 Watts
Wattage (High – Roof Snow & Ice Removal): 288 Watts
Watts per Foot: 6 W/ft (at 10°C / 50°F)
Maximum Maintain Temperature: 140°F (60°C)
Minimum Temperature for Operation: -40°F (-40°C)
Power Cord Length: 6 feet
Plug Type: NEMA 5-15 (lighted)
Inspect: Before starting, carefully inspect the ReadyTrace cable for any signs of damage.
Ensure GFCI Protection: Confirm that the electrical circuit you intend to use is GFCI-protected. If not, an inline GFCI option is available from ReadyTrace.
Position Cable: Carefully position the heat trace cable along the pipe, in the gutter, or on the roof area requiring protection. Ensure it is laid out smoothly without kinking or sharp bends.
Secure Cable: Secure the cable to the desired surface using appropriate non-metallic fasteners. For pipes, use approved tapes (e.g., glass tape or aluminum foil over the entire length). Do not use metal straps or wire.
Plug In: Once properly installed and secured, plug the lighted NEMA 5-15 plug into the GFCI-protected electrical outlet. The plug will illuminate when the cable is receiving power and operating.
Monitor (Optional): If using a ReadyTrace temperature controller (sold separately), connect it as per its instructions to manage the heating more precisely.
BENEFITS OF USING READYTRACE 36 FT. SELF-REGULATING HEAT TRACE CABLES (READYTRACE-036):
Provides essential freeze protection for pipes, preventing costly ruptures and water damage.
Effectively manages ice dams on roofs and ensures gutters and drainage systems remain clear and functional.
Automatically conserves energy by adjusting heat output based on actual temperature conditions.
Offers a straightforward, plug-and-play installation process, saving time and effort.
Built to perform consistently in harsh winter environments, offering long-term reliability.
Contributes to uninterrupted building operations and reduces maintenance needs during cold periods.
Adaptive heating matrix responds dynamically to environmental temperature shifts.
Integrated lighted plug provides immediate visual confirmation of power.
Flexible construction allows for easy application around various contours and shapes.
Constructed with nickel-plated copper bus wires for efficient electrical conductivity.
Features an E-Beam cross-linked semiconductive heating matrix for consistent heat generation.
Protected by an E-Beam cross-linked dielectric insulation layer for electrical safety.
Includes a tinned copper braid for grounding and added protection.
Finished with a polyolefin overjacket, offering enhanced resistance to chemicals and moisture.
Can be overlapped without risk of damage due to its self-regulating properties.
Product identification
- Brand: ReadyTrace
- Model / MPN: READYTRACE-036
