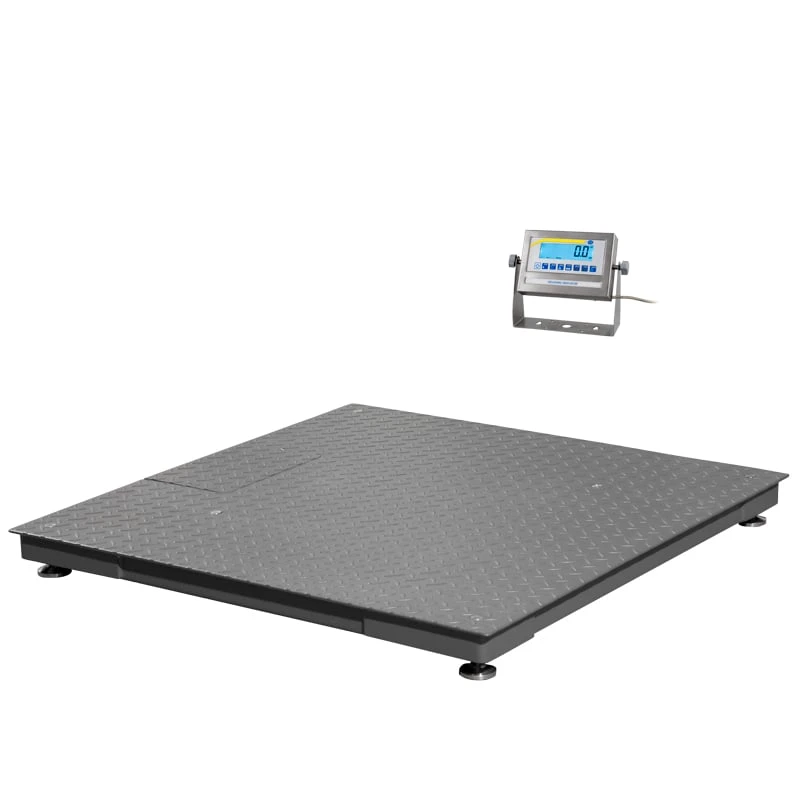

PCE Instruments Weighbridge with External Display (PCE-RS 2000)
PCE Instruments Weighbridge (PCE-RS 2000) is built for stationary use, offering a durable steel platform designed for weighing large and heavy objects. Its external LCD display, connected via a 5-meter cable, ensures clear readability and convenient placement for easy monitoring.
Equipped with multiple functions, including summing, parts counting, and check weighing, this weighbridge enhances efficiency in industrial settings. The built-in RS-232 interface allows data transfer to a PC, making it ideal for inventory management and quality control applications.
Specifications and Dimensions
Weighing Range: 2,000 kg
Resolution: 0.5 kg
Measurement Uncertainty: ±2 kg
Display: LCD with 25 mm digit height, backlit
1x bidirectional RS-232 interface
1x analog output 4…20 mA (optional)
Calibration: Multi-point adjustment possible
Operating Temperature: -10 … +40 °C / max. 85% RH
Power Supply: 12 V / 1000 mA AC adapter (battery operation not supported)
Platform Dimensions: 1200 x 1200 x 100 mm
Weight: Approx. 85 kg
Key Features and Benefits
Durable steel construction for heavy-duty use
External LCD display with a 5-meter cable for flexible placement
Summing function for tracking cumulative weight measurements
Parts counting function for inventory and logistics applications
Check weighing mode with MIN/OK/MAX indicators
Bidirectional RS-232 interface for seamless data transfer
Optional 4-20 mA analog output for external connections
Easy calibration and multi-point adjustment
1 x PCE-RS 2000 Weighbridge
1 x External Display
1 x 230 V AC Adapter (110 V AC for USA)
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-RS 2000
