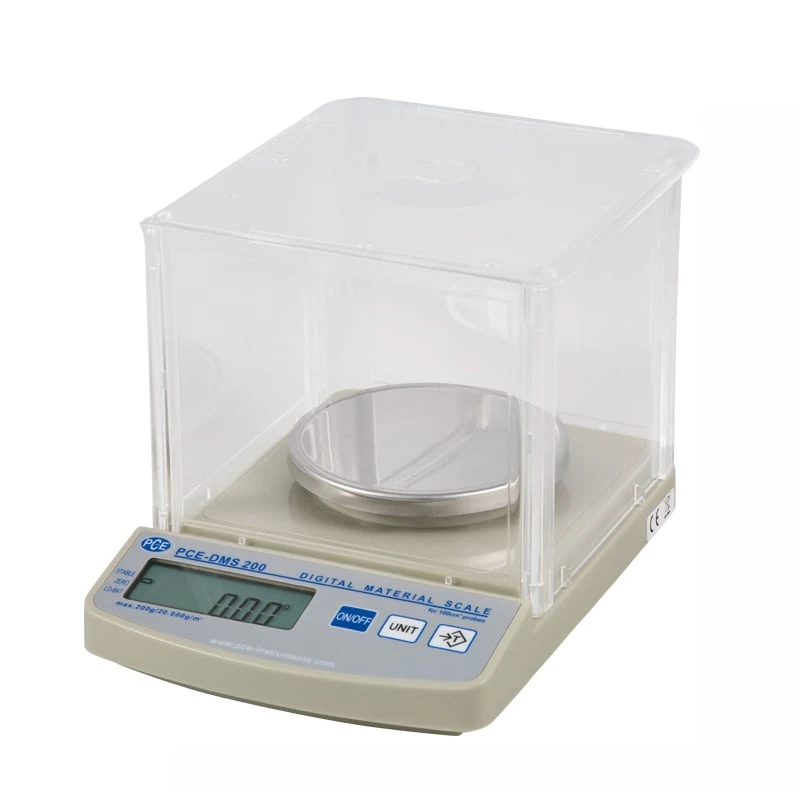

PCE Instruments GSM Paper Basis Weight Scale (PCE-DMS 200)
PCE Instruments GSM Paper Basis Weight Scale (PCE-DMS 200) is designed for accurate measurement of basis weight in paper, cardboard, textiles, and fabric. This scale simplifies the quality control process by providing fast and precise readings in g, g/m², oz, or oz/yd².
With a 10 cm round weighing pan, the device is ideal for weighing 11 cm circular samples. The easy-to-read backlit LCD display and automatic calibration function enhance usability. It operates on both battery and AC power, making it suitable for stationary and mobile applications.
Specifications and Dimensions
Weighing Ranges: 0 … 200 g, 0 … 20,000 g/m², 0 … 7.05 oz, 0 … 589.87 oz/yd²
Readability: 1 g/m² or 0.01 g
Repeatability: 0.02 g
Linearity: ± 0.02 g
Stabilization Time: 3 seconds
Calibration: Automatic function (external weight required, not included)
Display: 15 mm (0.6") backlit LCD
Power Supply: 230 V / 50 Hz via 12 V adapter or 6 x AA batteries
Housing: ABS plastic
Wind Shield: Plastic (Approx. 145 x 145 x 120 mm / 5.7 x 5.7 x 4.7")
Pan Size: 10 cm (Approx. 4") diameter
Overall Dimensions: Approx. 145 x 210 x 40 mm (5.7 x 8.3 x 1.6")
Net Weight: Approx. 1 kg (2.3 lb)
Key Features and Benefits
Designed for measuring the basis weight of paper, fabric, and textiles
Backlit LCD display for clear readings
Quick and easy weight unit conversion
Automatic calibration for precise measurements
Battery or AC power for flexible operation
Compact and lightweight for portability
Ideal for paper and textile industries, quality control, and research labs
1 x PCE-DMS 200 GSM Paper Basis Weight Scale
1 x Power Supply
6 x AA Batteries
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DMS 200
