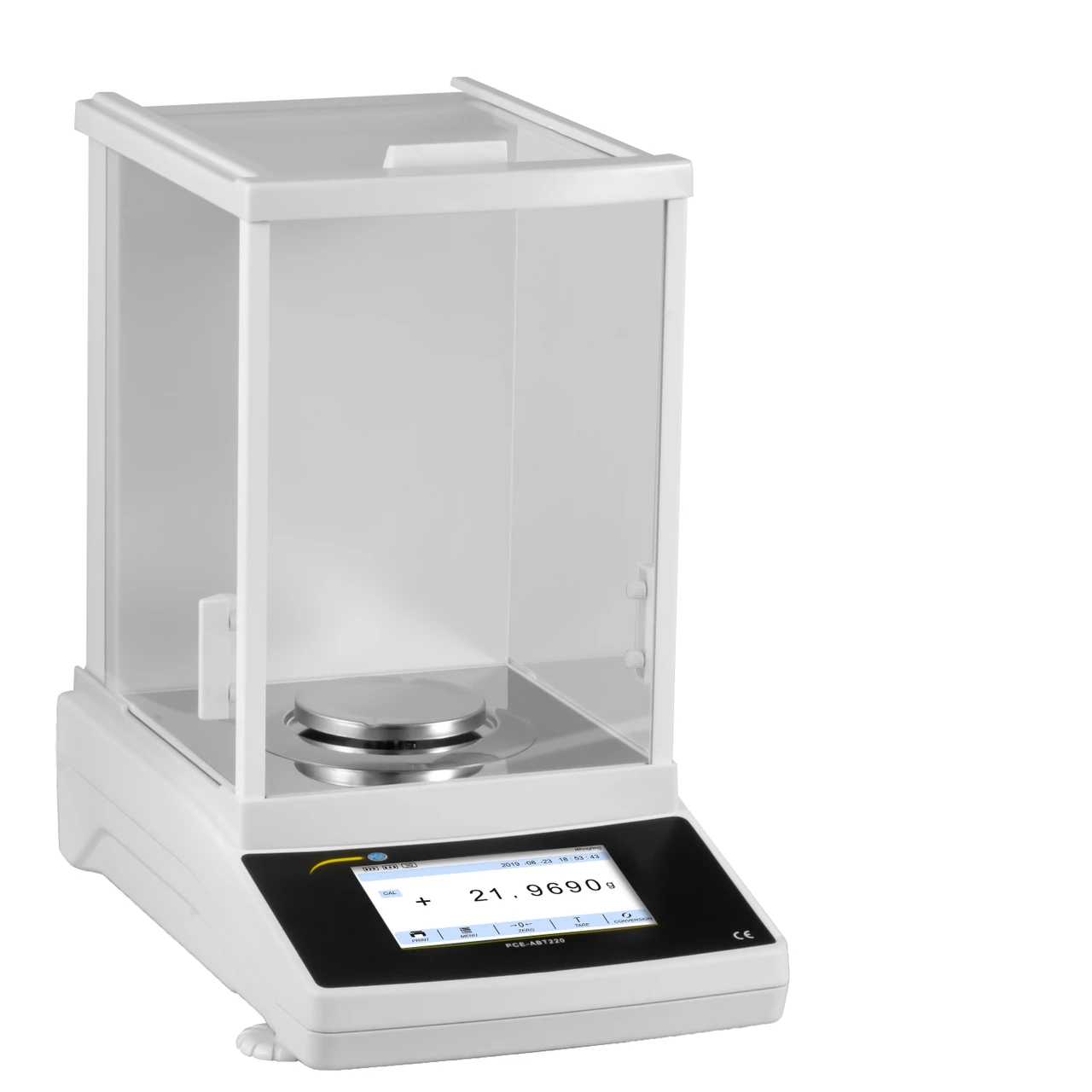

PCE Instruments Analytical Balance with Touchscreen Display (PCE-ABT 220)
PCE Instruments Analytical Balance with Touchscreen Display (PCE-ABT 220) offers high-precision weighing with a resolution of 0.1 mg and a weighing capacity of up to 220 g. Designed for laboratory applications, this balance includes a draft shield to prevent external factors from affecting accuracy.
The 5" touchscreen display provides a user-friendly interface for seamless operation, with switchable units for g, oz, ct, and mg. This analytical balance features an internal calibration function to ensure long-term measurement accuracy. It includes an RS232 interface for direct data transfer to a PC.
Specifications and Dimensions
Weighing range: 0 … 220 g
Resolution: 0.1 mg
Measurement accuracy: ± 0.5 mg
Repeatability: ± 0.2 mg
Linearity: ± 0.5 mg
Calibration: Internal
Weighing surface: Ø 80 mm stainless steel pan
Settling time: < 4 s
Adjustable units: g, oz, ct, mg
Operating conditions: 10 … 40 °C, <85 % RH (non-condensing)
Touchscreen: 5" LCD
Interface: RS232
Power supply: 220 V AC
Dimensions: 340 x 215 x 350 mm
Key Features and Benefits
5" touchscreen display for easy operation
High-precision weighing with 0.1 mg resolution
Windshield to prevent external interference
Built-in RS232 interface for data transfer
Spirit level and adjustable feet for stable setup
Multi-unit switching for flexible measurements
Quick internal calibration for long-term accuracy
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-ABT 220
