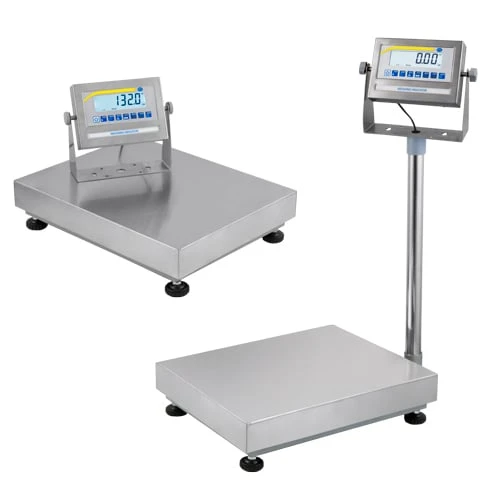

PCE Instruments Industrial Platform Scale (PCE-EP 30P2)
PCE Instruments Industrial Platform Scale (PCE-EP 30P2) is a versatile and high-precision weighing solution for industrial and logistics applications. This dual-range scale provides accurate measurements for packages and shipments up to 30 kg. It features a bidirectional RS232 interface for easy data transfer, a counting function, and a detachable tripod mount for maximum flexibility.
Specifications and Dimensions
Measuring Range: Max. 1 = 15 kg / Max. 2 = 30 kg
Resolution: Up to 15 kg = 2 g; 15 kg – 30 kg = 5 g
Measurement Uncertainty: ± 3 d
Platform Size: 500 x 600 mm
Tare Function: Over the entire weighing range
Interface: RS232 Bidirectional / D-SUB 9 Female
Optional Outputs: 4-20 mA analog, 4 potential-free outputs (LO/OK/HI/Stability)
Display: LCD with 25 mm digit height
Units: kg / lb (freely adjustable)
Cable Length: Approx. 160 cm (with attached plug)
Power Supply: 6V / 4.5Ah battery or 9V / 1.2A power adapter (included)
Power Consumption: 70 mA
Protection Class: IP54
Operating Temperature: 0 … +40°C / 10 … 80% RH
Weight: Approx. 25.5 kg
Key Features and Benefits
Bidirectional RS232 interface for efficient data transfer
Battery or mains operation for flexible use
1 x Display (with battery)
1 x Tripod with bracket
1 x Power adapter
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-EP 30P2
