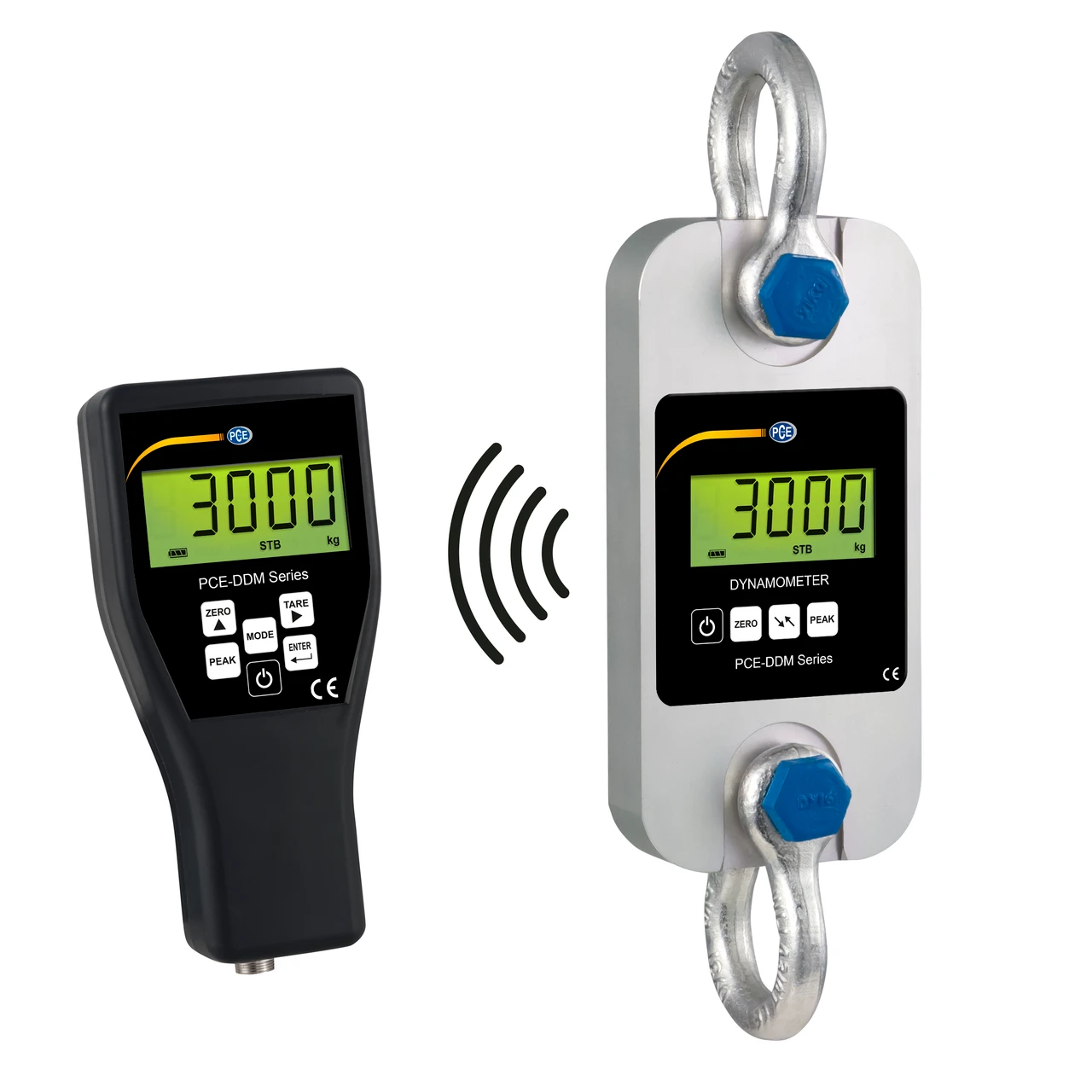

PCE Instruments Portable Crane Scale (PCE-DDM 3)
PCE Instruments Portable Crane Scale (PCE-DDM 3) is designed for precise weighing of heavy loads up to 3,000 kg. This compact and portable device offers a peak hold function, summation function, and selectable units of measurement, making it versatile for various industrial applications.
Equipped with heavy-duty aluminum shackles and delivered in a protective carrying case, this crane scale ensures durability and convenience. Its long battery life and adjustable gravitation range enhance usability in diverse environments.
Specifications and Dimensions
Measuring range: 3,000 kg / 30 kN / 6,614 lbs
Resolution: 1 kg / 10 N / 2.2 lbs
Minimum range: 10 kg / 22 lbs
Weight (with shackle): 2 kg / 4.4 lbs
Accuracy: ±0.1% of measurement range
Tare range: Max. 20% of measurement range
Display: LCD with 22 mm / 0.9 in digit height
Units of measurement: kg / t / lb / N / kN
Sampling rate: 2.5 Hz
Operating temperature: -10°C to +40°C / +14°F to +104°F
Power supply: 3 x 1.5 V AA batteries
Operating time: Approx. 50 hours
Key Features and Benefits
High capacity for weighing large loads
Compact and portable design for easy transport
Peak hold and summation functions for versatile measurements
Selectable units of measurement for flexibility
Includes heavy-duty aluminum shackles and protective carrying case
1 x PCE-DDM 3 Crane Scale
1 x Remote control indicator
1 x Carrying case
7 x AA 1.5 V batteries
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DDM 3
