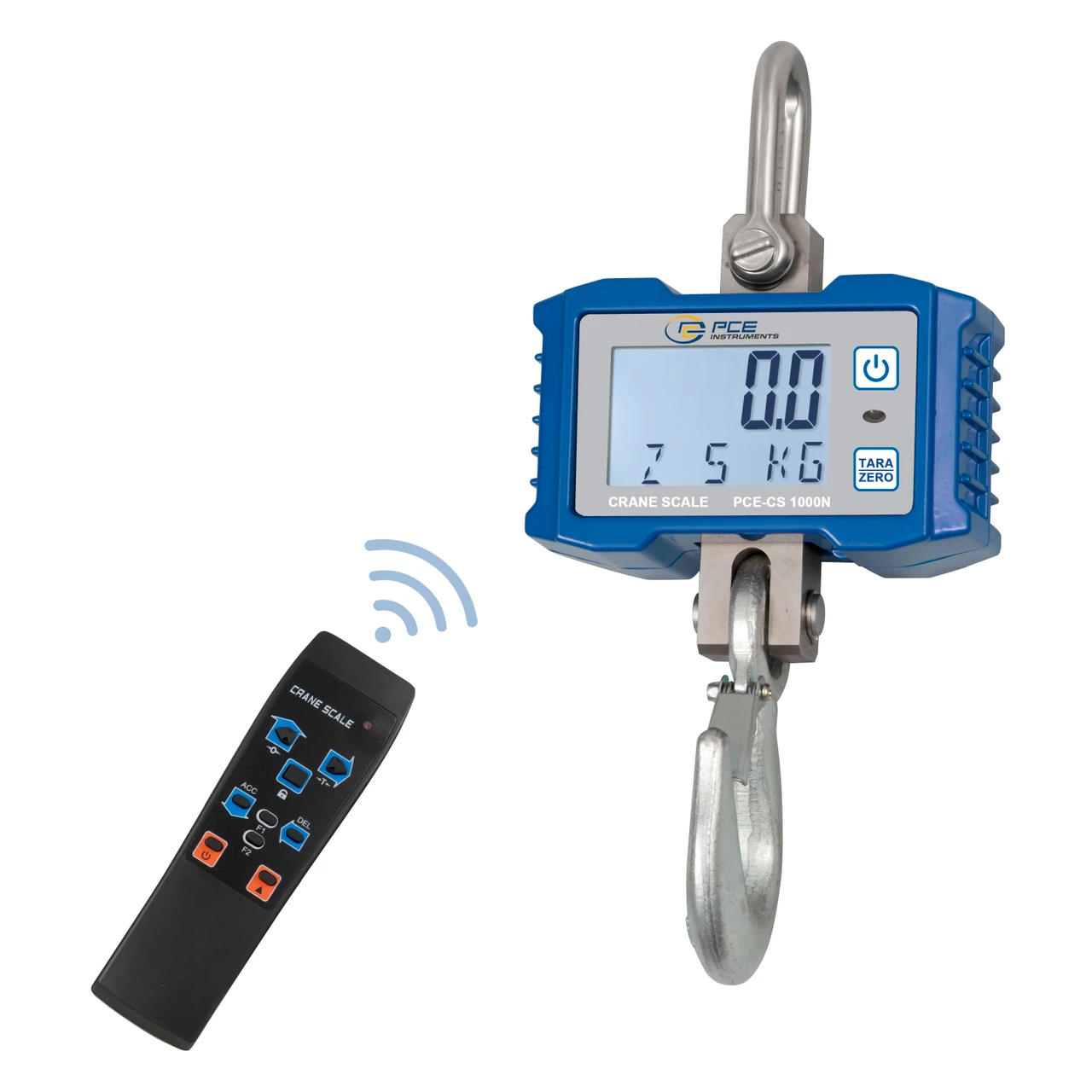

PCE Instruments Mobile Crane Scale with LCD Display (PCE-CS 1000N)
PCE Instruments Compact Mobile Crane Scale with LCD Display (PCE-CS 1000N) is a highly versatile and precise weighing device designed for industrial and warehouse applications. With a maximum capacity of 1000 kg (2200 lbs) and a resolution of 0.2 kg, this scale provides accurate weight measurements in harsh environments.
Equipped with a durable aluminum housing, an easy-to-read backlit LCD display, and an included remote control, this crane scale offers a user-friendly weighing solution. The device supports multiple weighing functions, including gross/net weighing, summing, and a customizable unit conversion function for enhanced flexibility.
Specifications and Dimensions
Maximum Weighing Capacity: 1000 kg / 2200 lbs ≈ 1 Ton
Resolution: 0.2 kg / 0.4 lbs
Minimum Load: 10 kg / 23 lbs
Accuracy: ±1% of the measuring range
Tare Range: 100% full scale
Response Time: Less than 1 second
Measuring Units: kg, lb
Safety Load: 150% (do not exceed)
Functions: Zero, tare, data hold, auto shut-off, and backlight control
Display: LCD with backlight, 20 mm / 0.79 in. digit height
Power Supply (Scale): 3 x 1.5V AA batteries (65-hour operation)
Power Supply (Remote Control): 2 x 1.5V AA batteries
Operating Temperature: -10°C … +40°C / +14°F … +104°F
Weight: 1.4 kg / 3.1 lbs
Overall Dimensions: 230 mm x 20 mm x 43 mm / 9.1 in x 0.8 in x 1.7 in
Key Features and Benefits
1000 kg (2200 lbs) capacity for industrial weighing applications
Compact, lightweight design with a durable aluminum housing
Backlit LCD display with 20 mm digits for easy readability
Automatic power-saving mode extends battery life up to 65 hours
1 x PCE-CS 1000N Crane Scale
1 x Remote Control (with batteries)
3 x 1.5V AA Batteries
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CS 1000N
