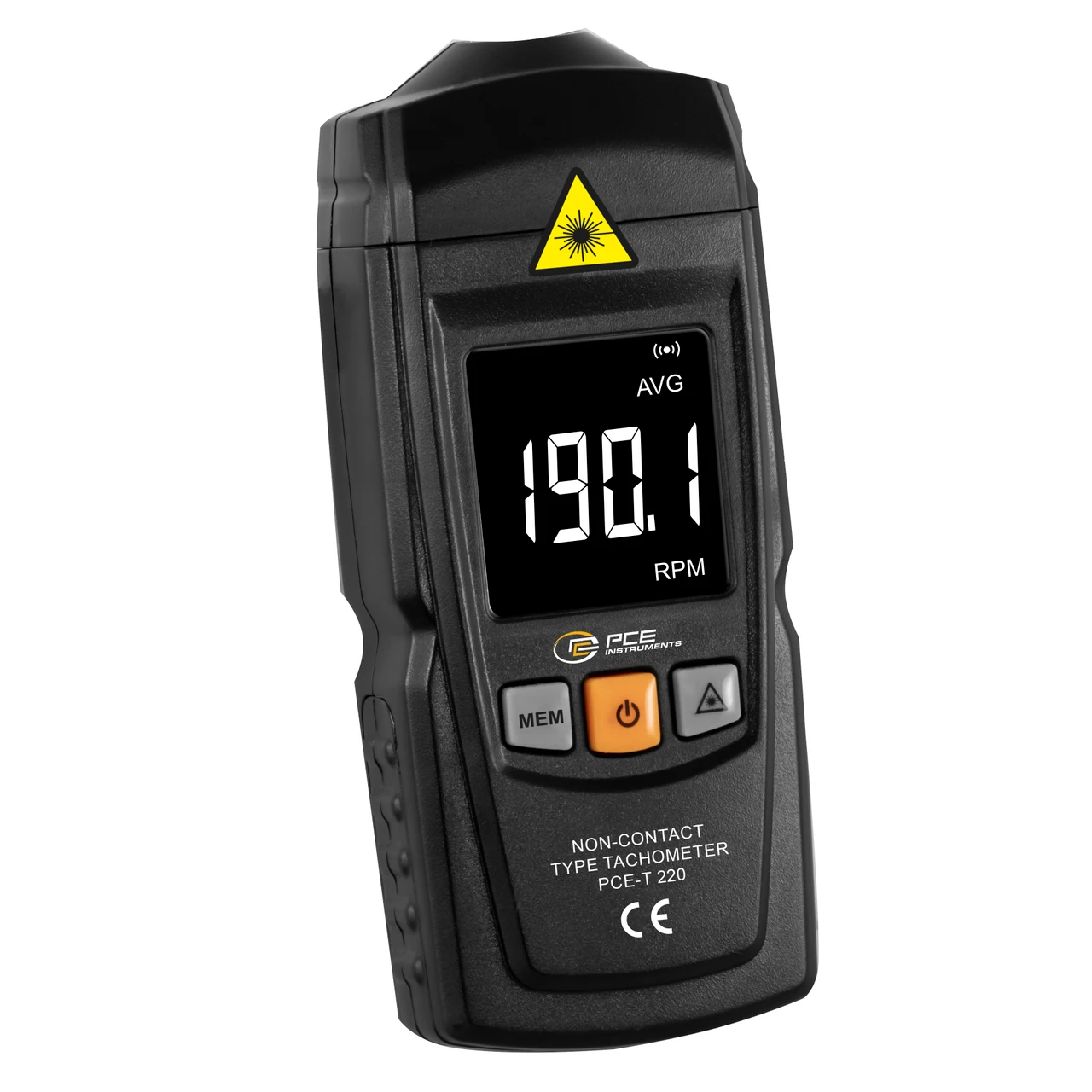

PCE Instruments Digital Tachometer with Optical RPM Measurement (PCE-T 220)
PCE Instruments Digital Tachometer with Optical RPM Measurement (PCE-T 220) is a high-precision, battery-powered device designed for contactless speed measurement. Using an optical sensor, it allows accurate readings from a distance of up to 50 cm, making it ideal for industrial, automotive, and maintenance applications.
The PCE Instruments Tachometer provides real-time monitoring with MIN, MAX, LAST, and AVG value functions. Its laser technology ensures precise measurements between 50 mm and 500 mm, while the 1.8-inch LCD screen offers a clear display.
Specifications and Dimensions
Measurement Range: 2.5 … 99,999 RPM
0.1 RPM (up to 999.9 RPM)
1 RPM (above 1000 RPM)
± (0.1% of Rd + 5 digits) for 2.5 … 999.9 RPM
± (1% of Rd + 5 digits) for 1000 … 99,999 RPM
Measuring Distance: 50 … 500 mm
Laser Class: 3A (2-5 mW)
Sampling Rate: 1 x per second
Display: 1.8-inch LCD
Functions: MIN, MAX, LAST, AVG
Power: 2 x AAA 1.5V batteries
Battery Capacity: 400 mAh
Operating Conditions: 0 … 50°C, 10 … 90% RH
Storage Conditions: -10 … 80°C, 10 … 75% RH
Protection Class: IP20
Dimensions: 127 x 55 x 30 mm
Key Features and Benefits
Precise optical measurement of RPM without contact
Laser-guided for accurate readings at up to 500 mm distance
Displays real-time, minimum, maximum, and average values
1.8-inch LCD ensures easy readability in various lighting conditions
Automatic shut-off after 60 seconds to extend battery life
Compact and lightweight for easy handling
Ideal for industrial, automotive, and maintenance applications
1 x Digital Tachometer PCE-T 220
2 x AAA 1.5V Batteries
3 x Reflective Tape (approx. 20 cm)
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-T 220
