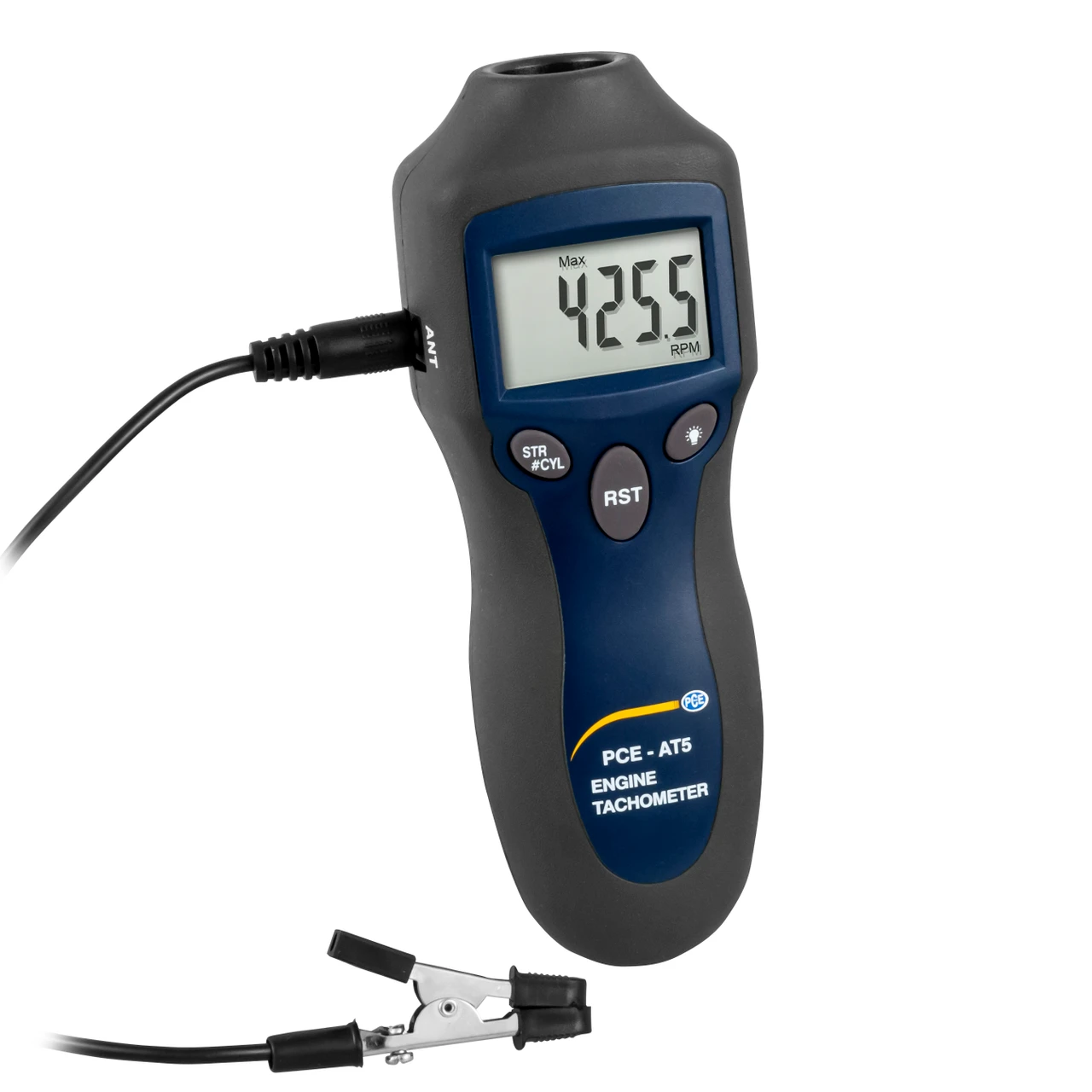

PCE Instruments Car Measuring Device Handheld Ignition Tachometer (PCE-AT 5)
PCE Instruments Car Measuring Device Handheld Ignition Tachometer (PCE-AT 5) is a reliable and easy-to-use tool for measuring the revolutions per minute (RPM) of combustion engines. Designed for one-cylinder two-stroke and eight-cylinder four-stroke engines with electric ignition starters, this tachometer is essential for automotive diagnostics and performance tuning.
With an intuitive 6-digit backlit LCD display and a built-in flashlight for low-light conditions, this device ensures accuracy and ease of use. Its durable ABS plastic housing ensures longevity and resilience in demanding environments.
Specifications and Dimensions
Measurement range: 100 … 20000 rpm
Resolution: 1 rpm
Accuracy: ± 10 rpm
Measurement interval: 0.5 seconds
Power supply: 1 x 9V battery
Operating temperature: 0 … 50ºC / 32 … 122ºF
Housing: ABS plastic
Display: 6-digit 22 mm / .9 in LCD
Device dimensions: 160 x 58 x 39 mm / 6.3 x 2.3 x 1.5 in
Weight: 177 g / < 1 lb
Key Features and Benefits
Measures RPM in combustion engines with electric ignition starters
Compatible with one-cylinder two-stroke and eight-cylinder four-stroke engines
Includes a 1.1 m / .04 in cable with an inductive clip for secure placement
Bright backlit LCD display ensures clear visibility
Flashlight functionality enables use in low-light environments
Durable ABS plastic construction for long-lasting reliability
1 x PCE-AT 5 car measuring device – handheld ignition-tachometer
1 x Cable with inductive clip
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-AT 5
