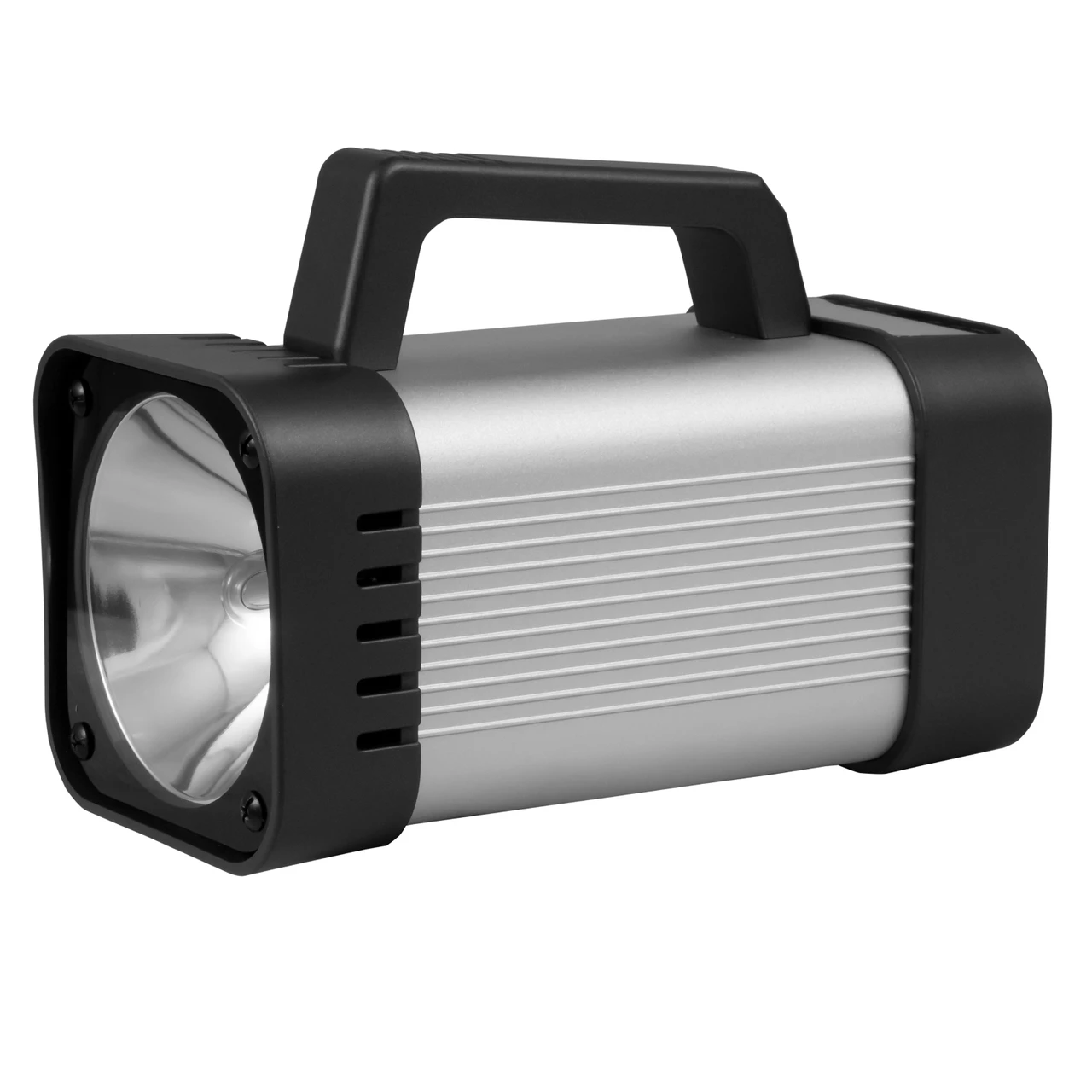

PCE Instruments Digital Tachometer (PCE-DSX 20)
PCE Instruments Digital Tachometer (PCE-DSX 20) is a professional tool for measuring speed, motion, and vibrations in industrial applications. Designed for technicians and maintenance personnel, this stroboscopic tachometer provides precise speed detection with a measuring range of 50 to 35,000 RPM. The bright xenon flash ensures clear visibility, even in demanding environments.
Equipped with an external trigger input, the tachometer allows synchronization with external systems, enhancing accuracy for industrial inspections. Its lightweight design and user-friendly controls make it ideal for detecting motion irregularities in machines, rotating shafts, and production processes.
Specifications and Dimensions
Measuring Range: 50 … 35,000 RPM
Resolution: <1000 RPM: 0.1 RPM, <9999 RPM: 1 RPM, <35,000 RPM: 10 RPM
Accuracy: ±(0.05% of measured value + 2 Dgt)
Flash Frequency: 0.833 … 583.3 Hz
Phase Shift: 0 … 359°
Trigger Input: 0 … 1200 ms
External Trigger Level: High: 2.5 … 12V, Low: <0.8V
Flash Response Time: 10 … 30 μs
Color Temperature: 6500K
Flash Output: 8 Joules
Power Supply: 230 V AC 50/60 Hz (US Version: 110 V AC 50/60 Hz)
Current Consumption: 240mA @ 3600 FPM
Operating Conditions: 0 … 50°C, max 80% RH
Dimensions: 230 x 110 x 150 mm / 9 x 4.3 x 5.9 in
Weight: Approx. 1145 g / 2.5 lbs
Key Features and Benefits
Bright xenon flash enhances visibility during inspections
Measures speed, motion, and vibration with high accuracy
External trigger input allows synchronization with other devices
1 x Tachometer (PCE-DSX 20)
1 x Operating Instructions
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DSX 20
