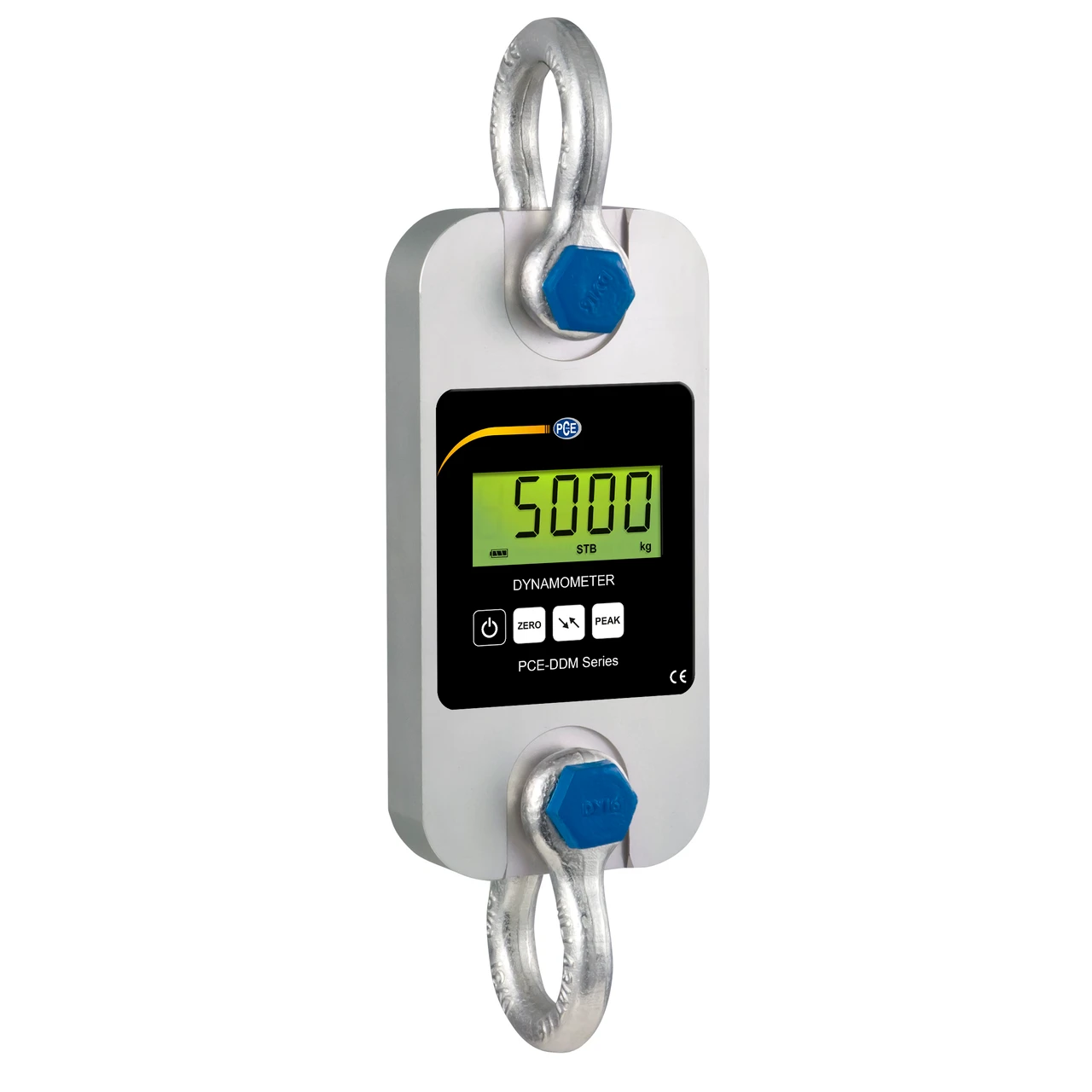

PCE Instruments Digital Crane Scale (PCE-DDM 5WI)
PCE Instruments Digital Crane Scale (PCE-DDM 5WI) is a high-capacity industrial weighing device designed to measure large hanging loads. Featuring a rugged aluminum frame, peak hold, sum, and tare functions, this scale delivers accurate readings for heavy-duty applications.
Compact and lightweight despite its robust build, this crane scale provides selectable measurement units, long battery life, and easy-to-read LCD output. Ideal for warehouses, construction sites, and industrial manufacturing, it ensures reliable performance in demanding environments.
Specifications and Dimensions
Maximum capacity: 5 t / 5000 kg / 11023 lbs / 50 kN
Resolution: 2 kg / 20 N / 4 lbs
Minimum capacity: 40 kg / 88 lbs
Weight (with shackles): 3 kg / 6.6 lbs (6 kg / 13 lbs)
Accuracy: ± 0.1% of measurement range
Tare range: Max. 20% of measurement range
Display: LCD with 0.9" / 22 mm digit height
Units of measurement: kg / t / lb / N / kN
Sampling rate: 2.5 Hz
Operating temperature: -10°C to +40°C / +14°F to +104°F
Power supply: 3 x 1.5 V AA batteries
Battery life: Approx. 50 hours of continuous use
Key Features and Benefits
High-capacity weighing up to 5,000 kg for industrial use
Durable aluminum frame for maximum strength and reliability
Selectable measurement units: kg, t, lb, N, kN
Peak hold, sum, and tare functions for added precision
Long battery life – approximately 50 hours of continuous use
Includes shackles and protective carrying case
ISO calibration available upon request
1 x PCE-DDM 5WI Crane Scale
3 x 1.5 V AA Batteries
1 x Protective Carrying Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DDM 5WI
