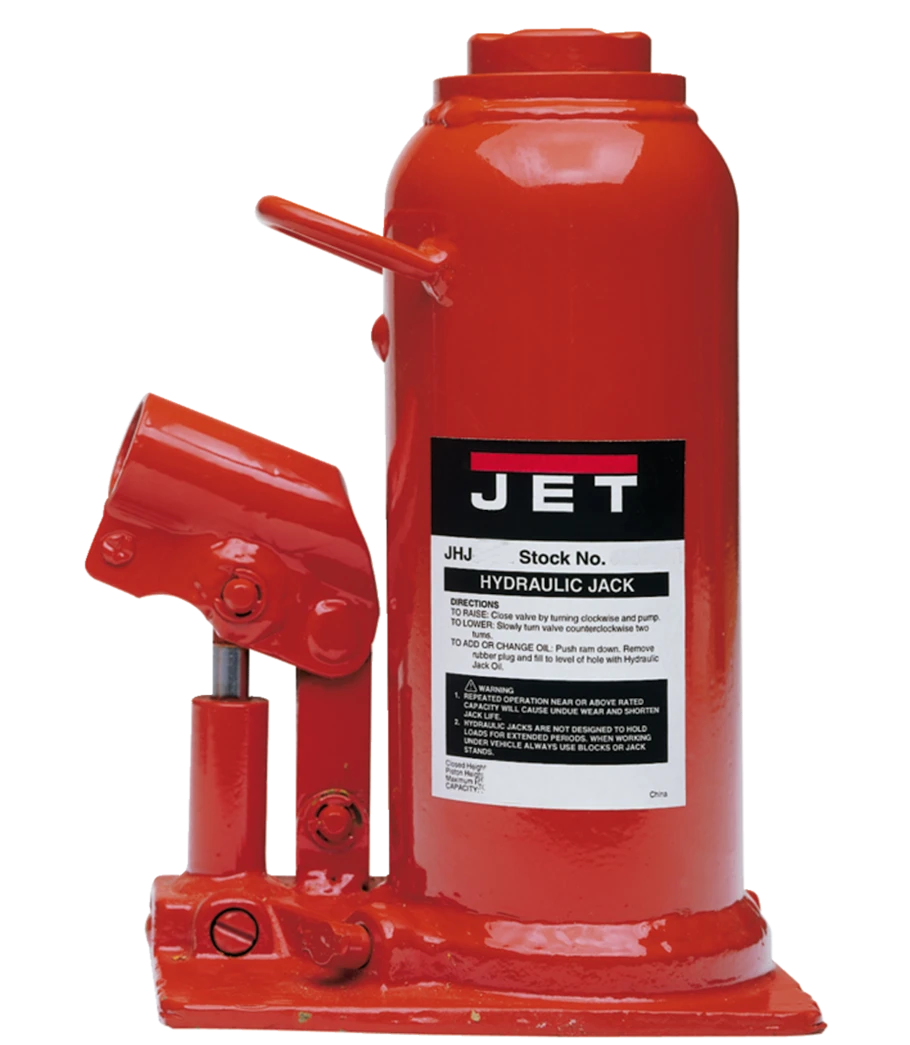

Jet JHJ-60 60 Ton Hydraulic Bottle Jack (453360K)
The Jet JHJ-60 60 Ton Hydraulic Bottle Jack (453360K) is a robust 60-ton hydraulic bottle jack designed for heavy-duty industrial applications. Built with durability and versatility in mind, this jack is capable of lifting, pushing, spreading, bending, pressing, and straightening various loads. Its sturdy construction and reliable hydraulic system make it a trusted tool for professionals.
KEY FEATURES AND BENEFITS:
Powerful Lifting Capacity: Handles loads up to 60 tons with ease.
Versatile Usage: Functions in upright, angled, or horizontal positions.
Durable Construction: Heavy-duty base and chrome-plated piston and ram for long-lasting performance.
Leak-Free Operation: Precision-machined and polished cylinders prevent fluid leakage.
Safety Compliance: Adheres to ANSI/ASME B30.1 and PALD-1 safety standards.
Load Capacity: 60 tons
Minimum Height: 12 inches
Piston Height: 6-3/4 inches
Maximum Height: 18-5/8 inches
Base Dimensions: 9-1/4 x 7-3/8 inches
Weight: 82 pounds
Operating Temperature Range: -4°F to 158°F
Position the Jack: Place the jack on a stable, level surface. Ensure the lifting point is clear of obstructions.
Lower the Saddle: Turn the pump handle clockwise to lower the saddle to the desired height.
Position the Load: Carefully position the load under the saddle, ensuring it is centered and stable.
Raise the Load: Pump the handle repeatedly to lift the load to the desired height.
Lower the Load: To lower the load, slowly open the release valve.
BENEFITS OF USING Jet JHJ-60 60 Ton Hydraulic Bottle Jack (453360K):
Efficiently handles heavy-duty lifting tasks.
Offers flexibility with various operating positions.
Ensures safety with compliance to industry standards.
Provides reliable performance in demanding conditions.
Saves time and effort compared to manual lifting methods.
Heavy-duty electrically welded base
Chrome-plated piston and ram
Precision-machined and polished cylinders
Internal by-pass mechanism for hydraulic system protection
Industrial-duty construction
Pump handle included
Product identification
- Brand: Jet
- Model / MPN: 453360K
60 ton hydraulic bottle jack: see the listed specifications for this model.
