Floor jack details

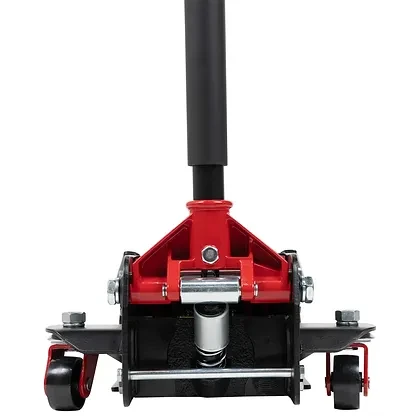

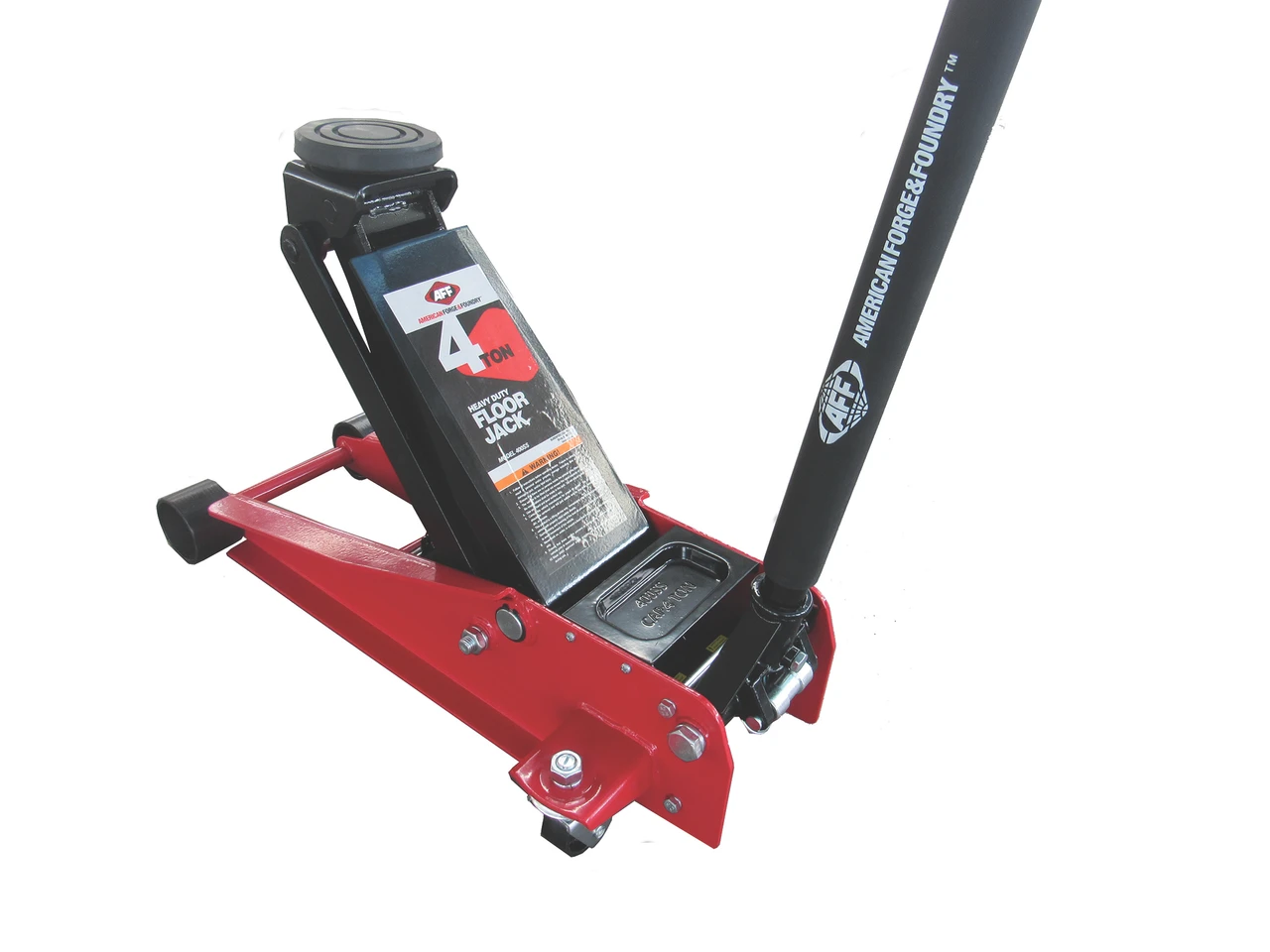

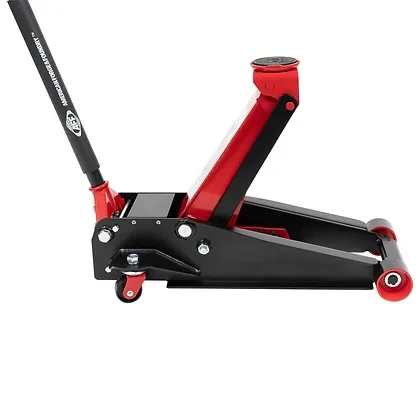

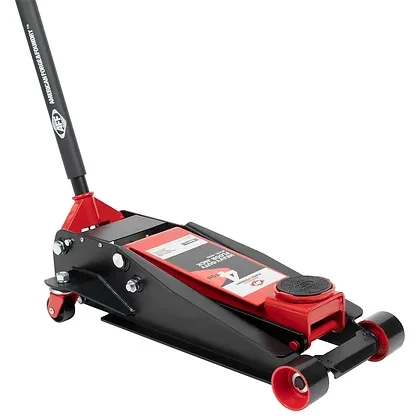

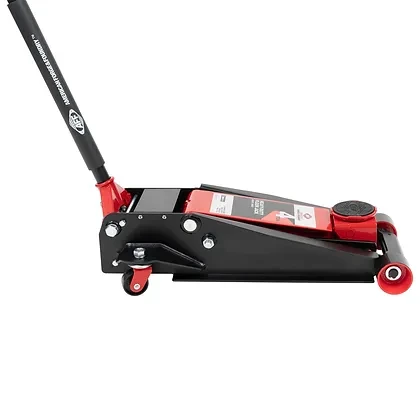

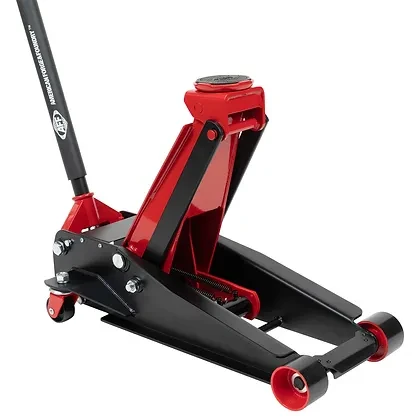

American Forge & Foundry 4-Ton Heavy-Duty Floor Jack (400SS)
KEY FEATURES AND BENEFITS:
Lightning Lift™ Hydraulic System: Provides rapid, effortless lifting, enhancing productivity in busy service environments.
High-Strength Steel Construction: Ensures exceptional rigidity and stability, allowing the jack to safely handle loads up to 8000 pounds (4 tons).
Universal Joint Technology: Facilitates a precisely controlled and smooth lowering of the vehicle, minimizing risk during descent.
Industrial-Quality Seals and O-Rings: Designed for durability, guaranteeing leak-free operation and extending the overall lifespan of the hydraulic system.
UV Powder-Coated Frame: Offers superior protection against corrosion and wear, maintaining the jack's appearance and structural integrity even in harsh workshop conditions.
ASME PASE 2019 Safety Standard Compliance: Ensures the product meets rigorous safety specifications for professional use.
Capacity: 8000 lb (4 ton)
Low Height: 4.3 inches
High Height: 20.5 inches
Chassis Length: 28.82 inches
Chassis Width – Front: 11.54 inches
Chassis Width – Rear: 14.37 inches
Handle Length: 50 inches
Number of Handle Pieces: 2
Saddle Diameter: 4.33 inches
Standards: ASME PASE 2019 Safety Standard
Included in purchase: 4-Ton Heavy-Duty Floor Jack (Model 400SS) main unit, 2-piece handle, pinned and padded saddle with rubber pad.
Preparation: Ensure the vehicle is parked on a hard, level surface. Engage the parking brake and place wheel chocks on the wheels not being lifted.
Positioning the Jack: Locate a suitable lifting point on the vehicle's frame or designated jack point, as indicated in your vehicle's owner's manual. Position the American Forge & Foundry 400SS floor jack with the saddle centered directly under the lifting point.
Lifting the Vehicle: Insert the handle into the pump mechanism. Firmly pump the handle up and down to raise the saddle and lift the vehicle. Continue pumping until the vehicle reaches the desired height.
Securing the Vehicle: Once the vehicle is lifted, always place sturdy jack stands under appropriate support points before working under the vehicle. Never rely solely on the floor jack to support the vehicle's weight while working underneath.
Lowering the Vehicle: Carefully remove the jack stands. Slowly turn the universal joint release valve (typically by twisting the handle or a separate knob) counter-clockwise to gently lower the vehicle. Ensure the area around the vehicle is clear as it descends.
Storage: Once the vehicle is fully lowered and the jack is disengaged, clean any debris from the jack and store it in a clean, dry place.
BENEFITS OF USING AMERICAN FORGE & FOUNDRY 4-TON HEAVY-DUTY FLOOR JACK (400SS):
Enhanced Safety: Built-in bypass system prevents accidental overloading, reducing the risk of damage to the jack or injury to the user.
Vehicle Protection: The pinned and padded saddle, along with a foam handle pad, protects the vehicle's finish and undercarriage from scratches and damage during lifting.
Efficient Operation: The two-piece handle design allows for easier positioning and pumping, contributing to quicker service times.
Long-Term Reliability: Constructed with industrial-quality components and seals, ensuring consistent performance and a reduced need for maintenance over its lifespan.
Stable Support: Flanged side plates are integrated into the chassis design to provide additional stability during the lifting process.
Organized Workspace: An integrated parts tray helps mechanics keep small components, like lug nuts or bolts, from getting lost during repairs.
Twin hydraulic system for rapid lift.
Precision-machined and inspected pump, ram, and cylinders.
U-cup seals and high-pressure plungers for maximum performance.
Rear-mounted swivel casters for enhanced maneuverability.
Padded saddle with durable rubber pad.
Foam pad on handle to protect vehicle finish.
Flanged side plates for increased stability.
Integrated parts tray for small components.
Built-in bypass system for overload prevention.
Two-piece handle for easy assembly and storage.
Product identification
- Brand: American Forge & Foundry
- Model / MPN: 400SS
