20 ton bottle jack details

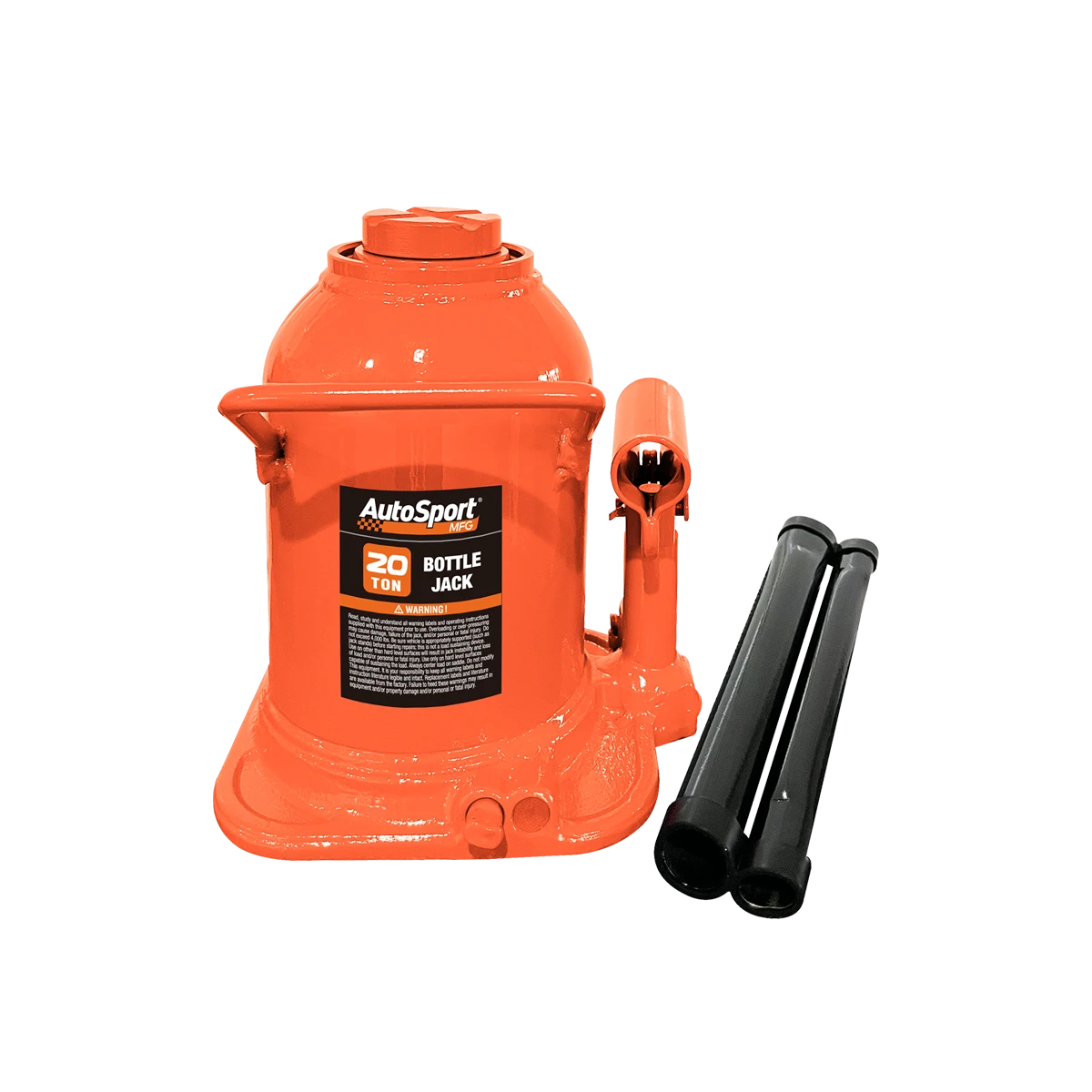

AutoSport 20 Ton Short Hydraulic Welded Bottle Jack with Steel Handle (ASM2057S)
AutoSport 20 Ton Short Welded Bottle Jack (ASM2057S) is designed for heavy-duty lifting in compact spaces. Featuring a fully welded cylinder and frame, this jack provides the durability and strength needed for tough lifting jobs. It has a low height of 7 1/2 inches and a high height of 13 13/16 inches, making it ideal for lifting in tight spaces while maintaining powerful performance.
It also comes equipped with a recessed release valve that protects the release screw and ensures smooth operation during use. Weighing 17.2 lbs, this jack is built for stability and flexibility, with a screw adjustment of 2 3/8 inches to accommodate various lifting needs.
Specifications and Dimensions
Capacity (Ton): 20
Min Height (in): 7 1/2
Max. Height (in): 13 13/16
Ram Travel (in): 3 15/16
Screw Adj (in): 2 3/8
Package Dimensions (in): 6.5 x 6.5 x 7.2
Net Weight (lbs.): 17.2
Gross Weight (lbs.): 16.7
Key Features and Benefits
Fully welded cylinder and frame for superior strength
Cast steel handle socket and linkage for enhanced durability
Recessed release valve protects the release screw
Compact design with a low height of 7 1/2 inches and high height of 13 13/16 inches
Weighs 17.2 lbs, making it stable yet easy to maneuver
Product identification
- Brand: ASMHD
- Model / MPN: ASM2057S
