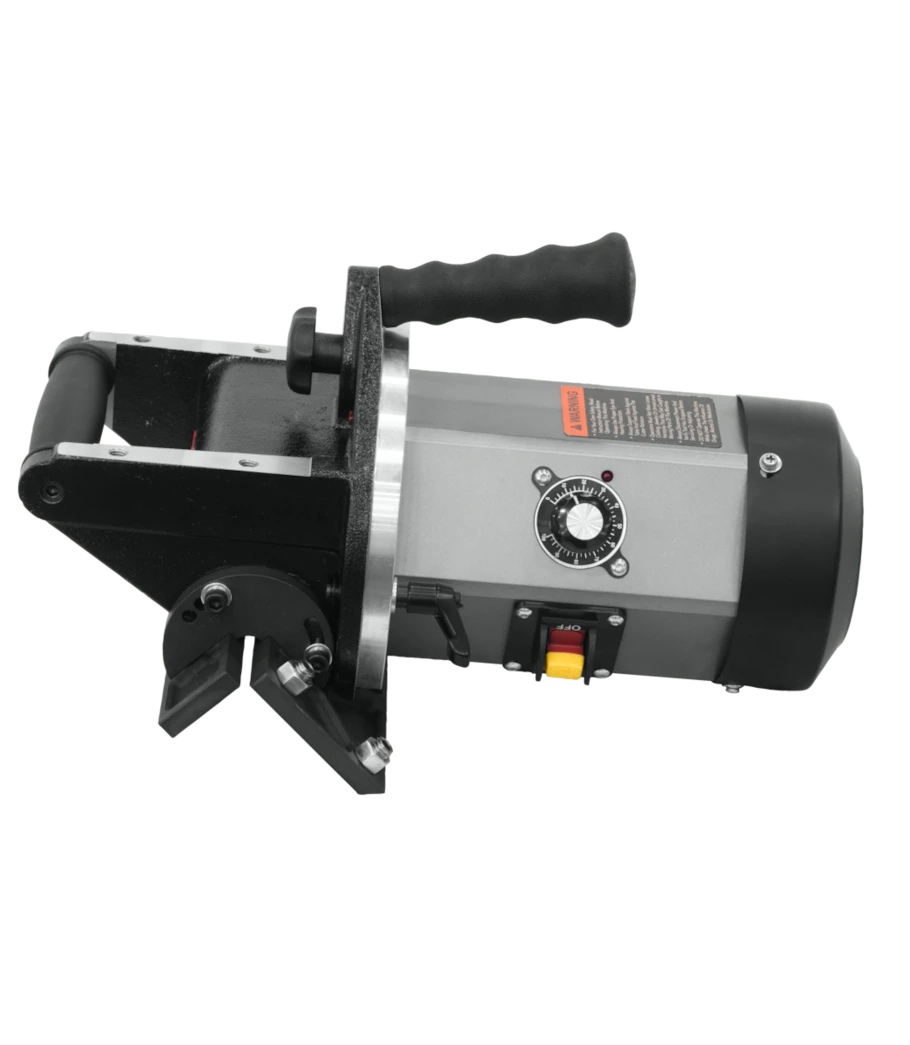

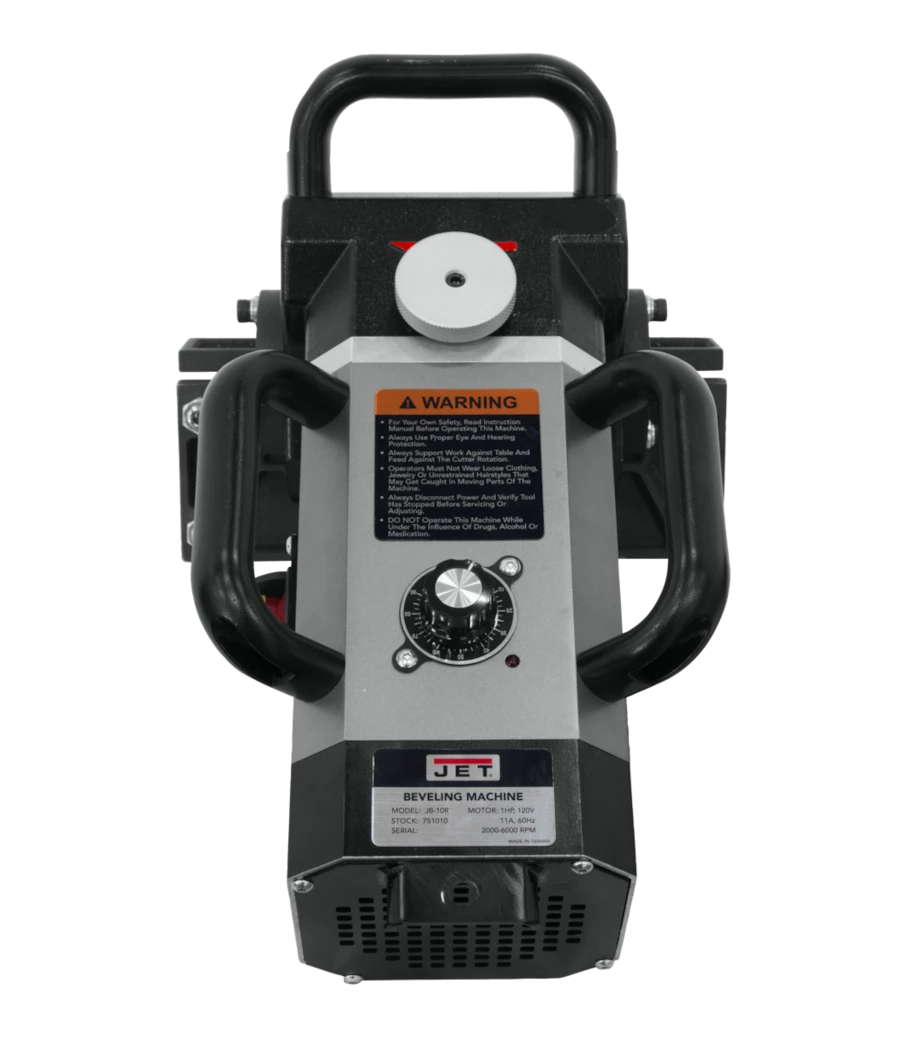

Jet JB-10P Portable Plate Beveling Machine (751005)
The Jet JB-10P Portable Plate Beveling Machine (751005) is a versatile tool designed to efficiently create precise straight edge bevels on various metal materials. Its compact and lightweight design makes it easy to maneuver in any workspace.
KEY FEATURES AND BENEFITS
Powerful Performance: Equipped with a 1-horsepower brushless motor that delivers strong torque for smooth and efficient cutting.
Precision Cutting: Milling type cutter heads with carbide inserts ensure accurate and clean bevels every time.
Comfortable Operation: Non-slip ergonomic handle for secure grip and reduced operator fatigue.
Versatility: Adjustable depth of cut (1/8" to 3/8") and bevel angle (15° to 45°) to accommodate different materials and project requirements.
Portability: Weighing only 20 pounds, the machine is easy to transport and store.
Motor: 1 horsepower brushless
Cutting Blade: Milling type with carbide inserts
Speed: Variable, 2000 to 5000 RPM
Depth of Cut: Adjustable, 1/8" to 3/8"
Bevel Angle: Adjustable, 15° to 45°
V-Block Length: 9 inches
Dimensions: 15.7" L x 11.02" W x 11.8" H
Weight: 22 pounds
Set up the machine: Place the machine on a stable work surface and ensure proper ventilation.
Adjust settings: Set the desired depth of cut and bevel angle using the adjustment knobs.
Secure workpiece: Clamp the workpiece securely in place using the V-block or other suitable clamping method.
Turn on the machine: Engage the power switch and allow the motor to reach operating speed.
Begin beveling: Slowly feed the workpiece into the cutting area, maintaining steady pressure.
Monitor temperature: Keep an eye on the machine's temperature and shut off if it exceeds 105°C (221°F).
Complete beveling: Continue feeding the workpiece until the desired bevel is achieved.
Turn off the machine: Allow the machine to cool down before storing.
BENEFITS OF USING JET JB-10P PORTABLE PLATE BEVELING MACHINE (751005)
Increased efficiency: Quickly and accurately create bevels compared to traditional methods like grinding.
Improved safety: Reduces the risk of accidents and injuries associated with manual grinding.
Consistent results: Produces uniform bevels for better fit and weld quality.
Cost-effective: Saves time and labor compared to other beveling methods.
Portability: Easily take the machine to the job site for on-site applications.
Powerful brushless motor
Precision milling cutter heads
Cooling fan and temperature protection
Ergonomic handle
Adjustable depth and angle
V-block for secure workpiece clamping
Product identification
- Brand: Jet
- Model / MPN: 751005
