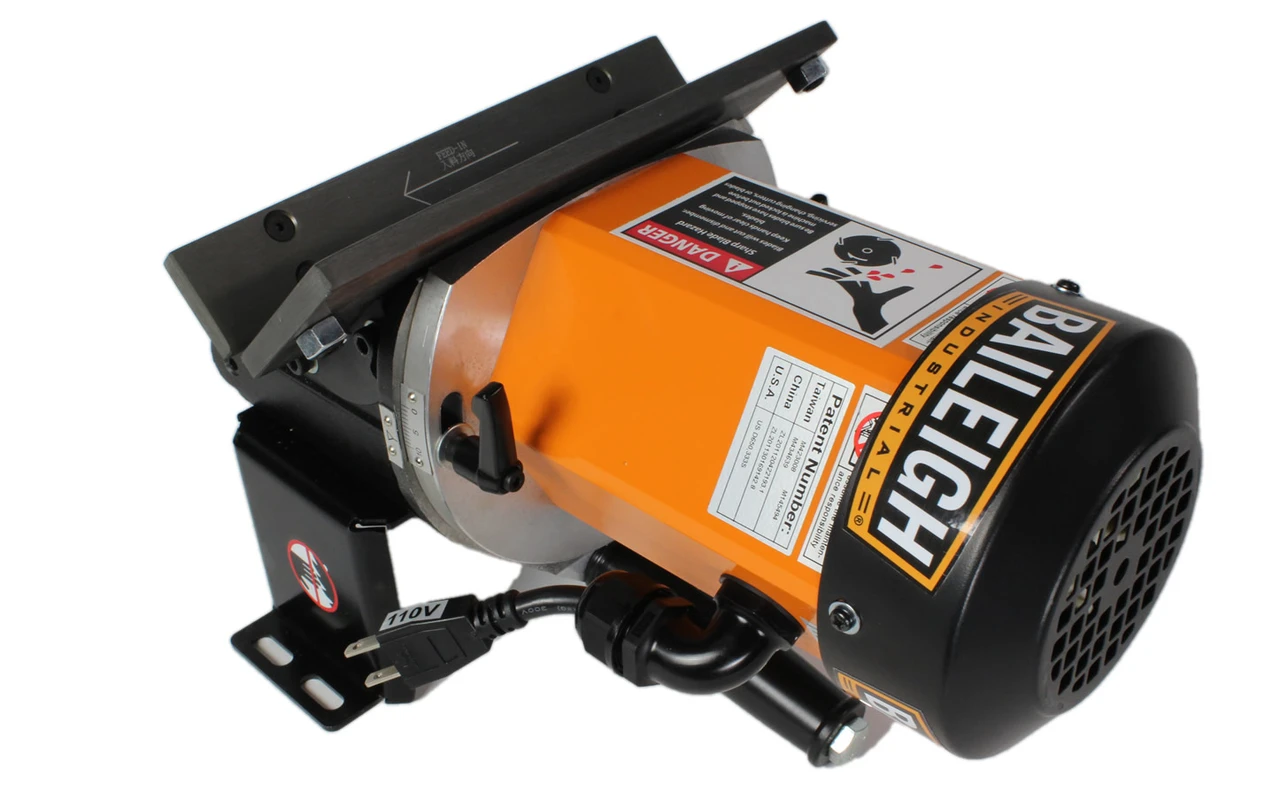

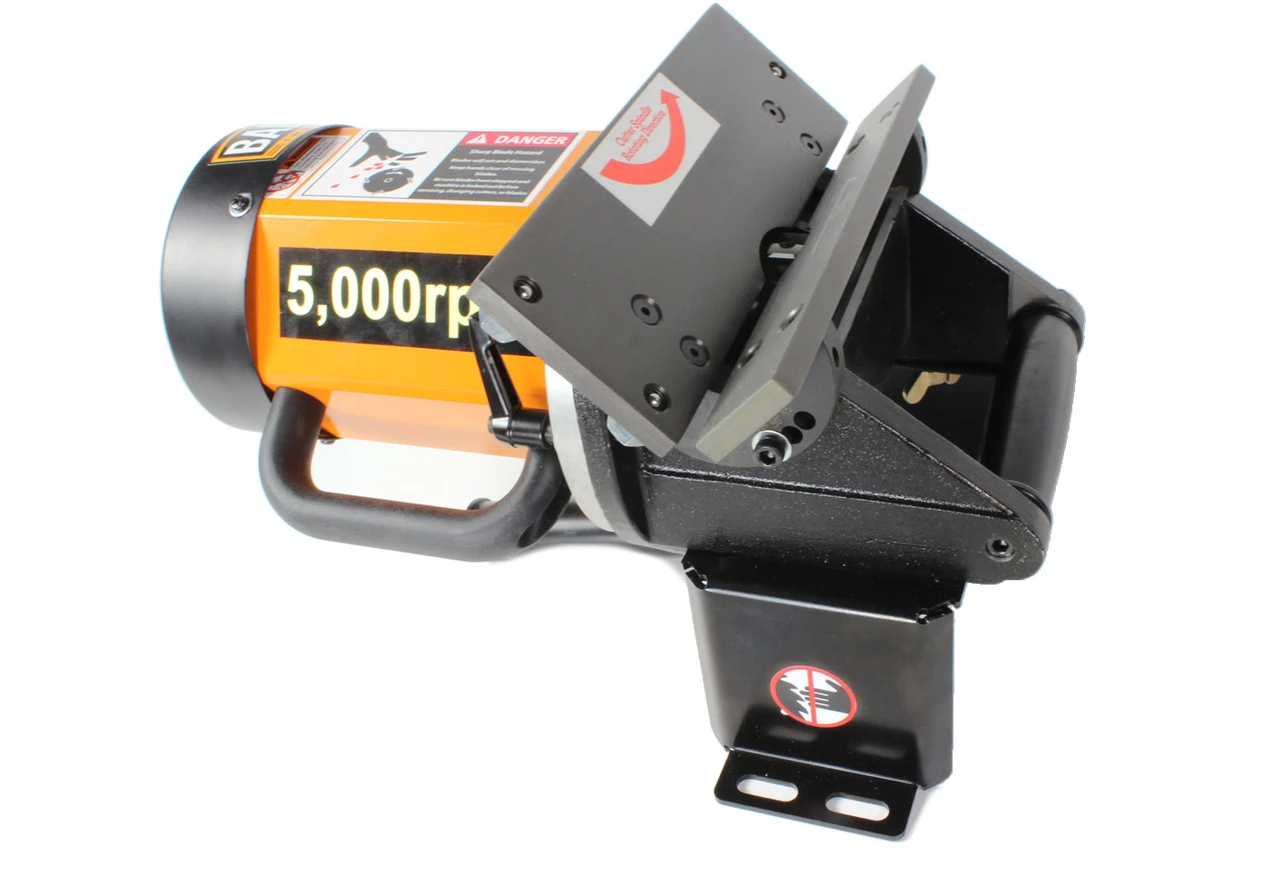

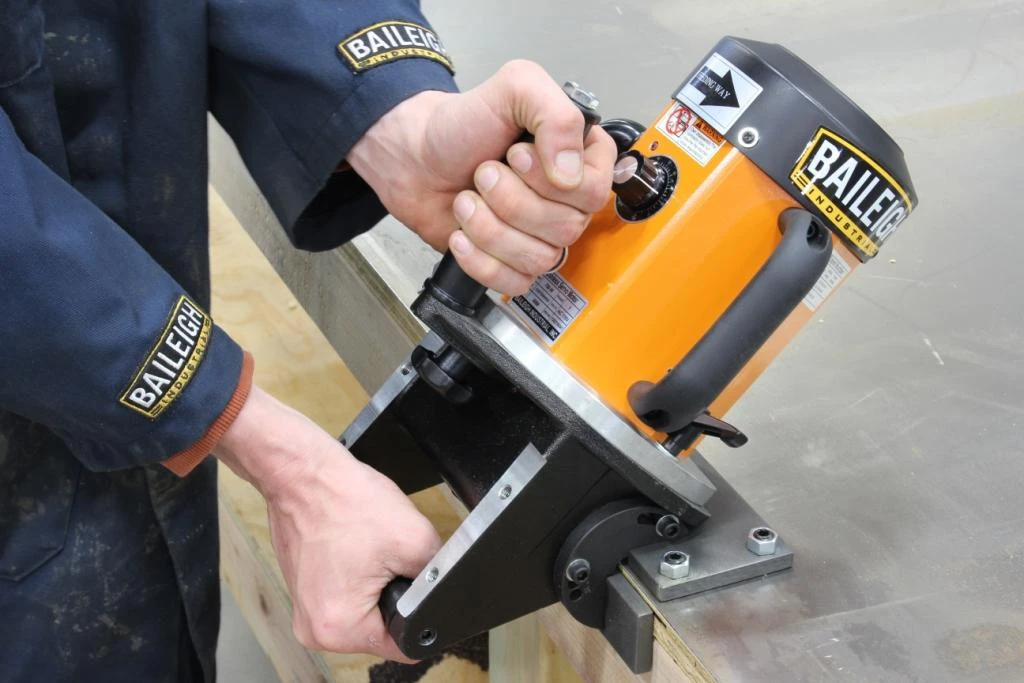

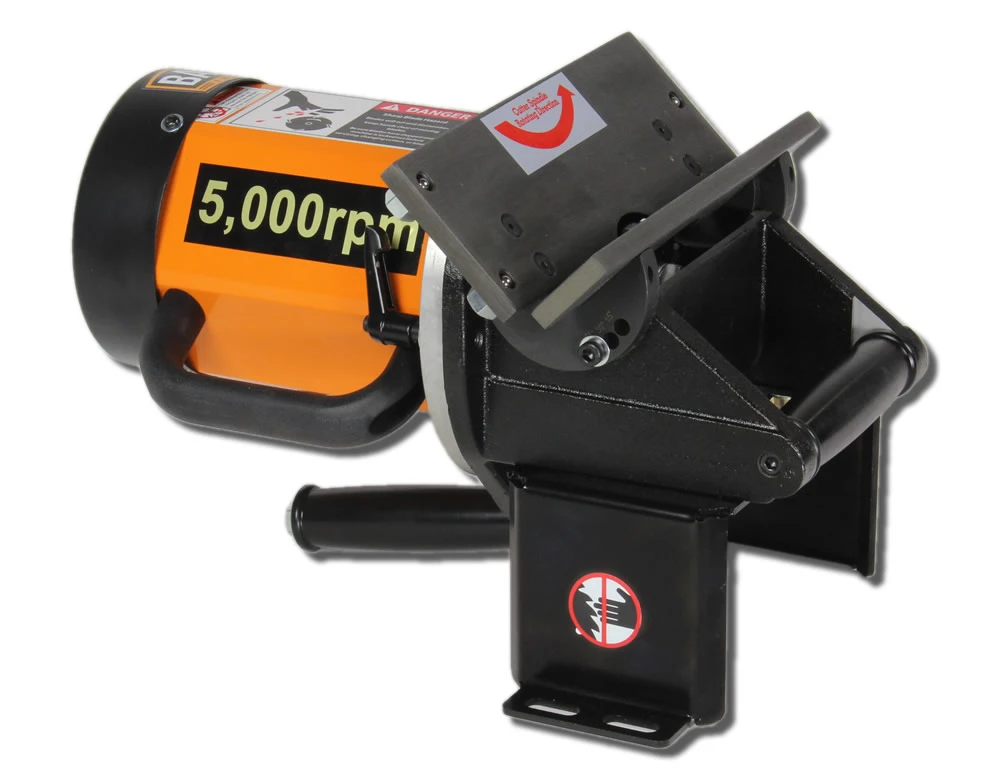

Baileigh 110V Portable Beveling Machine with 0-10mm Adjustable Angles (1002391)
Baileigh 110V Portable Beveling Machine with 0-10mm Adjustable Angles (1002391) is designed for portability and precision, making it an essential tool for any metalworking professional. Weighing just under 18 lbs., this lightweight yet powerful beveling and chamfering machine can easily be taken to any job site.
This 1002391 metal beveling machine can chamfer up to .25" at 45° from the front width and 3/8” at 45° from its side width. It comes standard with the ability to bevel at 3 set positions: 15°, 30°, and 45°, with optional pivot plates for even greater adjustability.
Specifications and Dimensions
Power: 110V single-phase
Motor: 1 hp brushless
Chamfer Capacity: .25" at 45° (front), 3/8” at 45° (side)
Bevel Angles: 15°, 30°, 45° (adjustable)
Net Weight: 28 lbs
Key Features and Benefits
Portable and lightweight at under 18 lbs
High torque and RPM from brushless motor
Adjustable bevel angles for versatility
Cooling fan prevents overheating
9” guide plates with roller balls for smooth feeding
Rigid mounting for stability
Lifetime technical support by phone
Product identification
- Brand: Baileigh
- Model / MPN: 1002391
