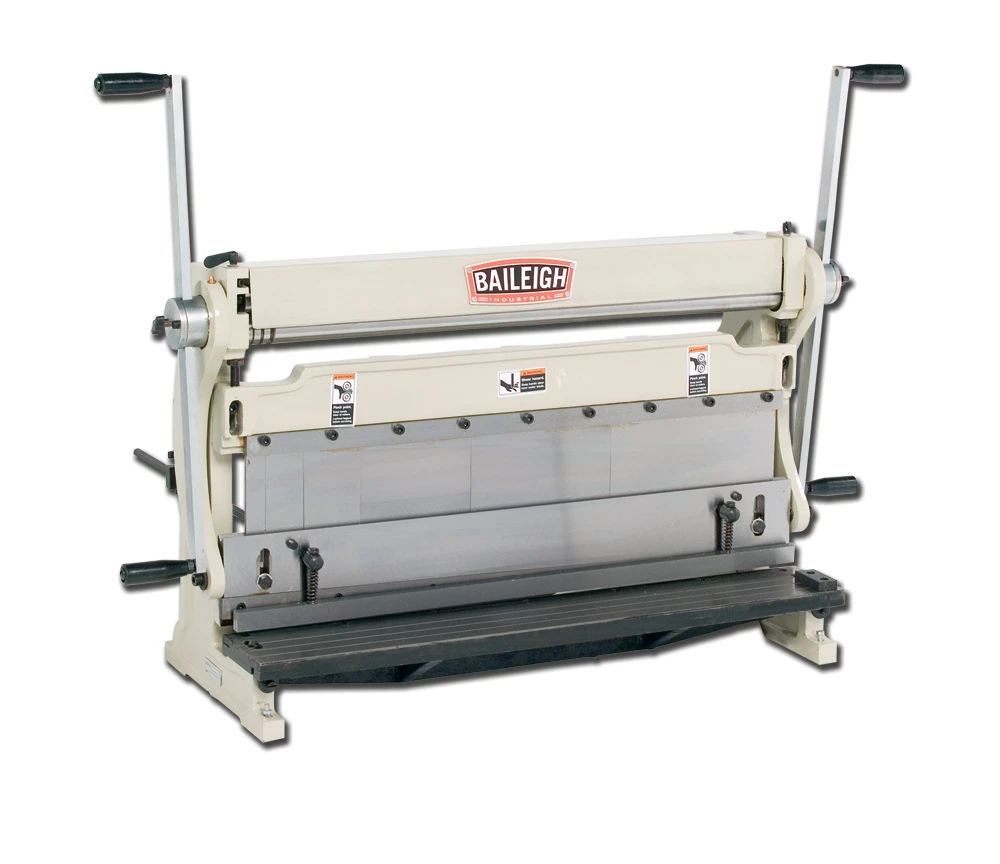

Baileigh 3-in-1 Combination Shear Brake and Roll (1006958)
Baileigh 3-in-1 Combination Shear Brake and Roll (1006958) is the perfect solution for small shops with limited space. This versatile machine combines a shear, press brake, and roll into one compact unit, making it ideal for low production runs and one-off projects.

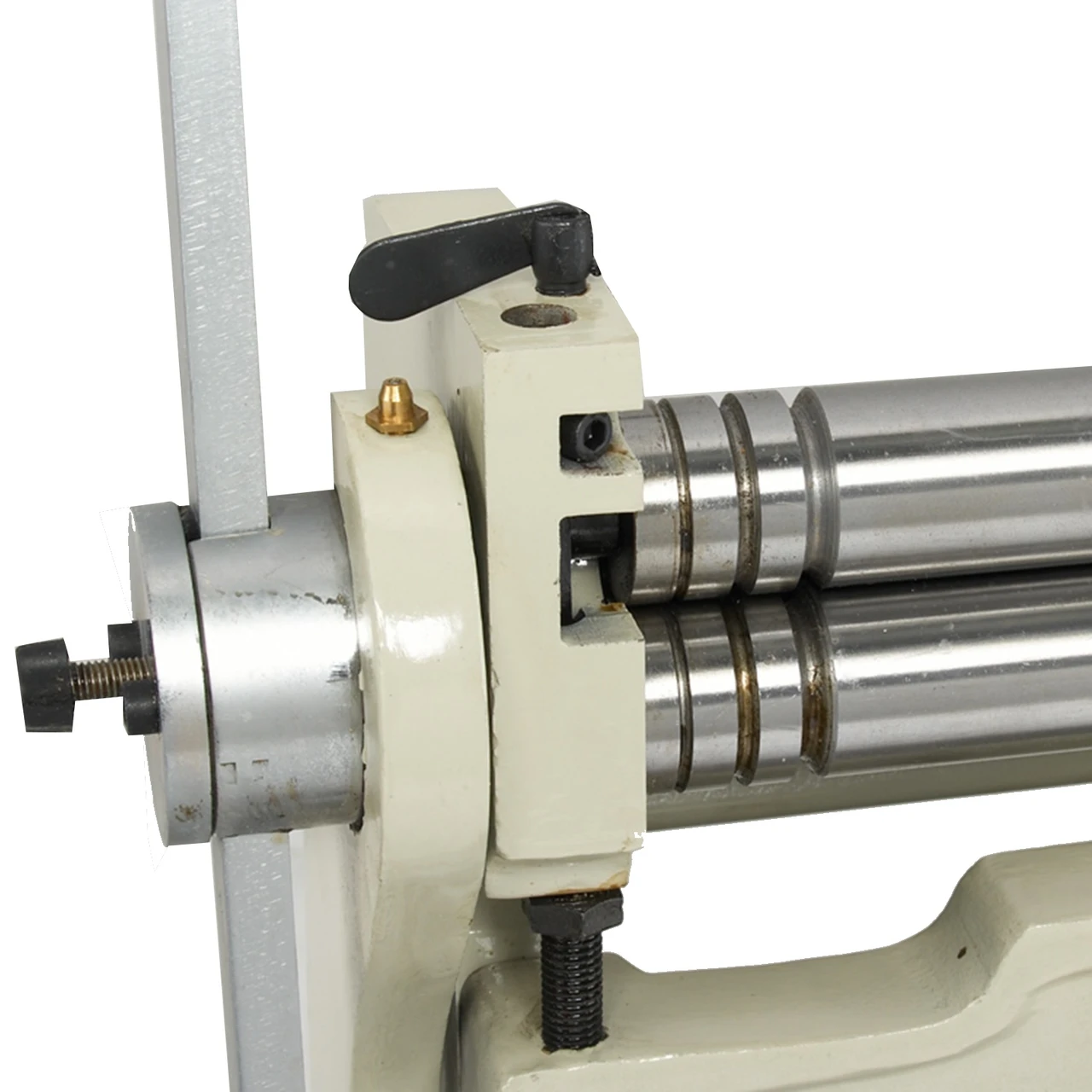

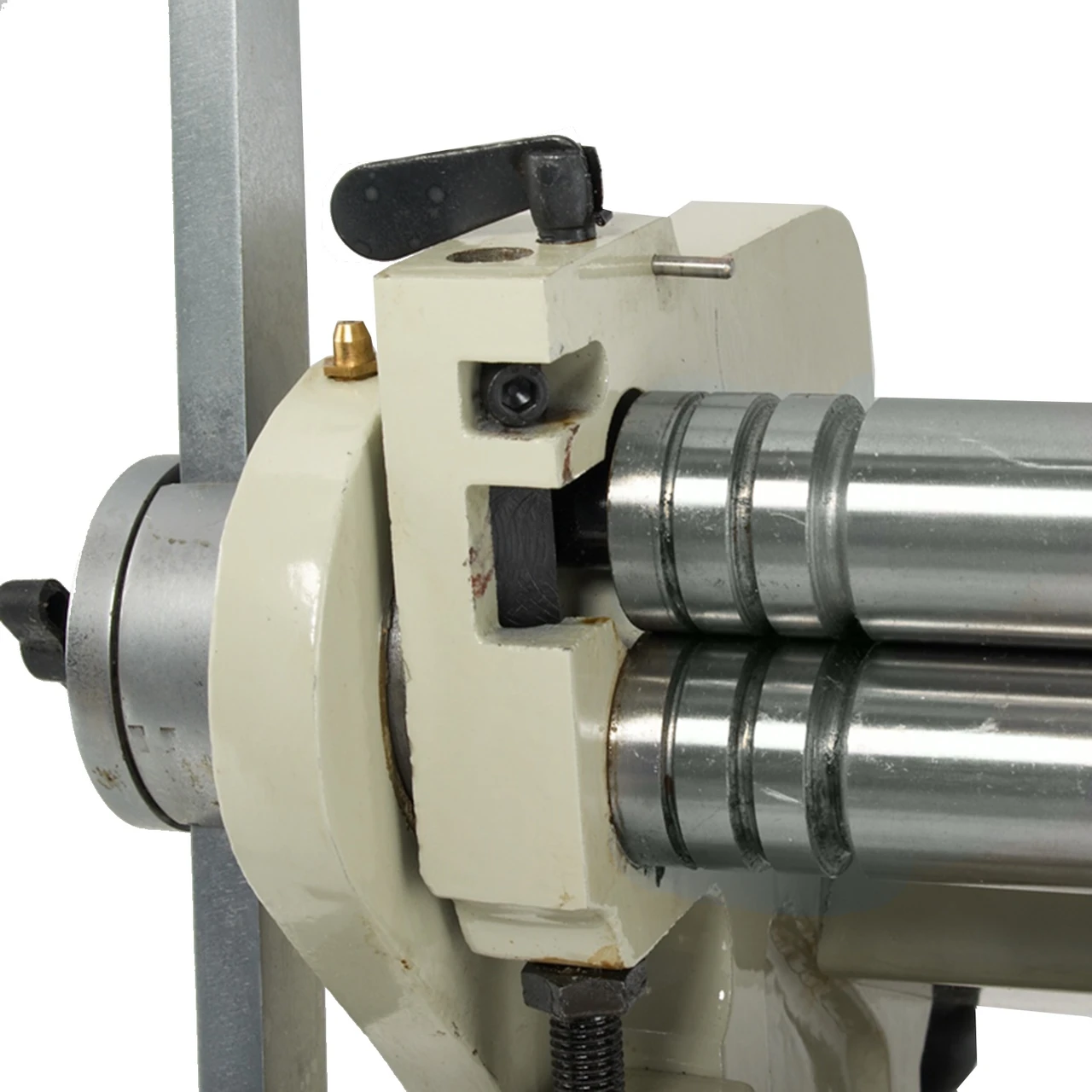

The Baileigh 3-in-1 Shear Brake Roll offers a 30” working width and can handle up to 20 gauge mild steel and 16 gauge aluminum. The slip roll features 3 wire grooves and can form rolls down to 1.54” in diameter. The press brake can bend up to 90° with adjustable camber for consistent pressure.
Specifications and Dimensions
Item Number: SBR-3020
Working Width: 30"
Maximum Capacity: 20 gauge mild steel, 16 gauge aluminum
Slip Roll Diameter: 1.54”
Overall Dimensions: 40” x 18” x 28”
Net Weight: 340 lbs
Key Features and Benefits
3-in-1 design saves space
30” working width for shear, press brake, and roll
Slip roll with 3 wire grooves
Vertical press brake bends up to 90°
Adjustable camber for consistent bends

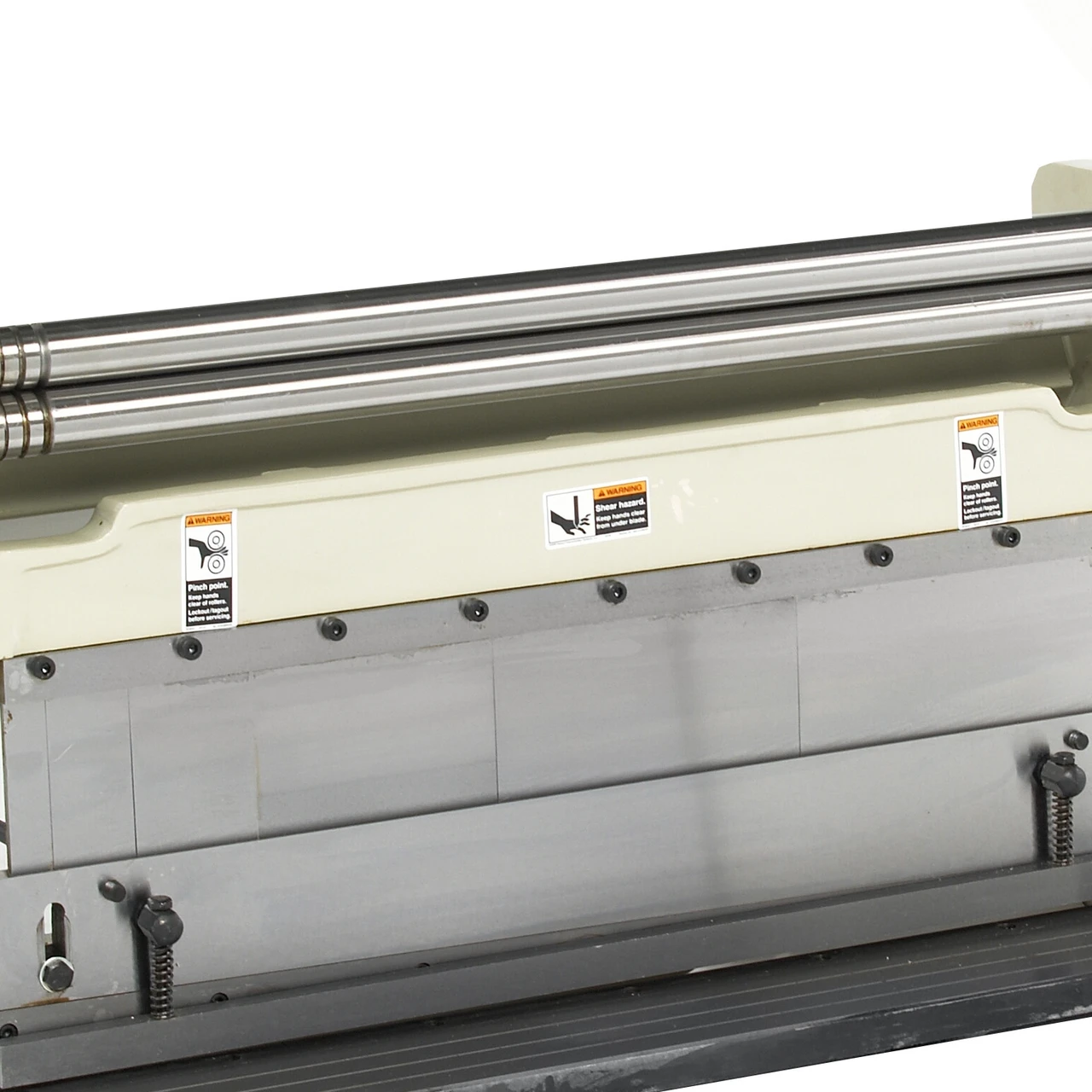

Spring-loaded shear hold-down minimizes burrs
Hardened and reversible blades for longevity
Manual back gauge for repeatable parts
Heavy-duty steel construction for durability
Product identification
- Brand: Baileigh
- Model / MPN: 1006958
