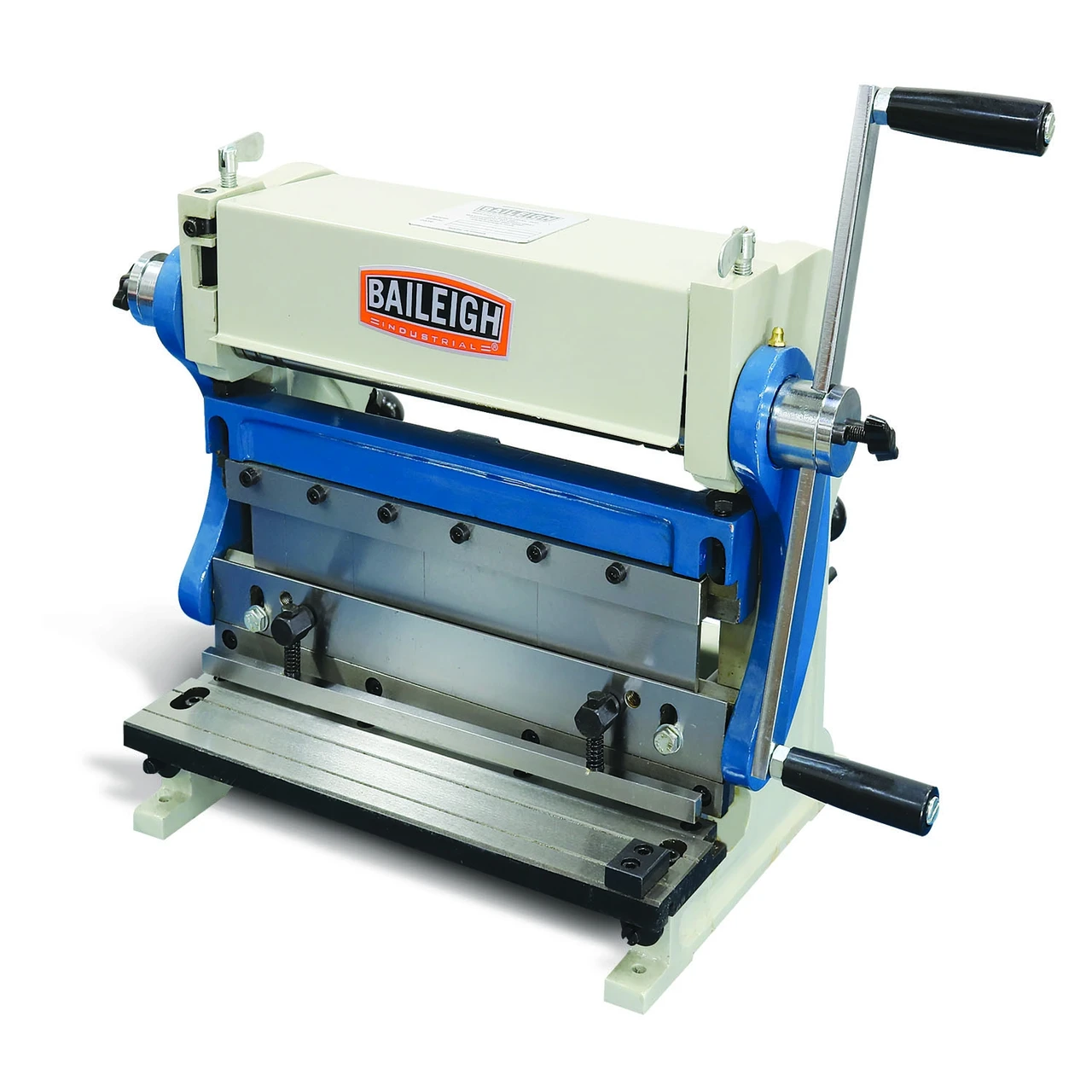

Baileigh 3-in-1 Combination Shear Brake and Roll 12" Bed Width 20 Gauge (1006957)
Baileigh 3-in-1 Combination Shear Brake and Roll 12" Bed Width 20 Gauge (1006957) is designed for versatility and efficiency. Ideal for hobbyists, maintenance, and R&D shops, this combination machine saves valuable space and performs multiple functions with precision.
The Baileigh 3-in-1 Shear Brake Roll can handle material up to 12” wide and has a maximum capacity of 20 gauge mild steel for all functions. The slip roll portion features hardened and polished shafts for long life, while the press brake portion allows for a maximum bend angle of 90°.
Specifications and Dimensions
Net Weight: 135 lbs
Maximum Capacity: 20 gauge mild steel
Forming Width: 12”
Minimum Rolling Diameter: 1.54”
3 Wire Forming Grooves
Maximum Bend Angle: 90°
Key Features and Benefits
Handles up to 12” wide material
Slip roll with hardened and polished shafts for durability
Adjustable fingers for varying box sizes
Consistent bending with adjustable frame and camber tooling

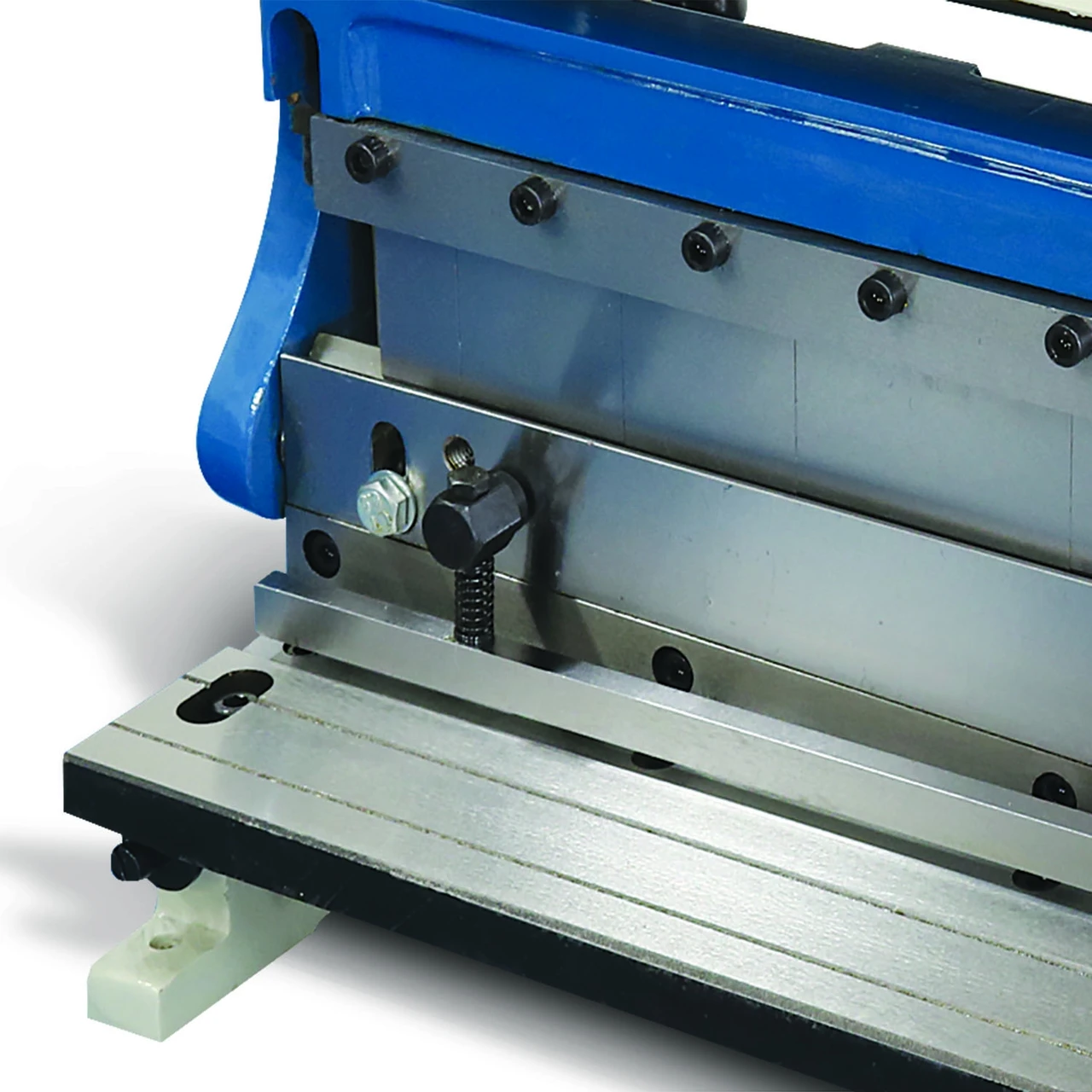

Hardened, reversible shear blades for long life
Spring-loaded hold-down reduces waste
Large, double-sided handles for easier operation

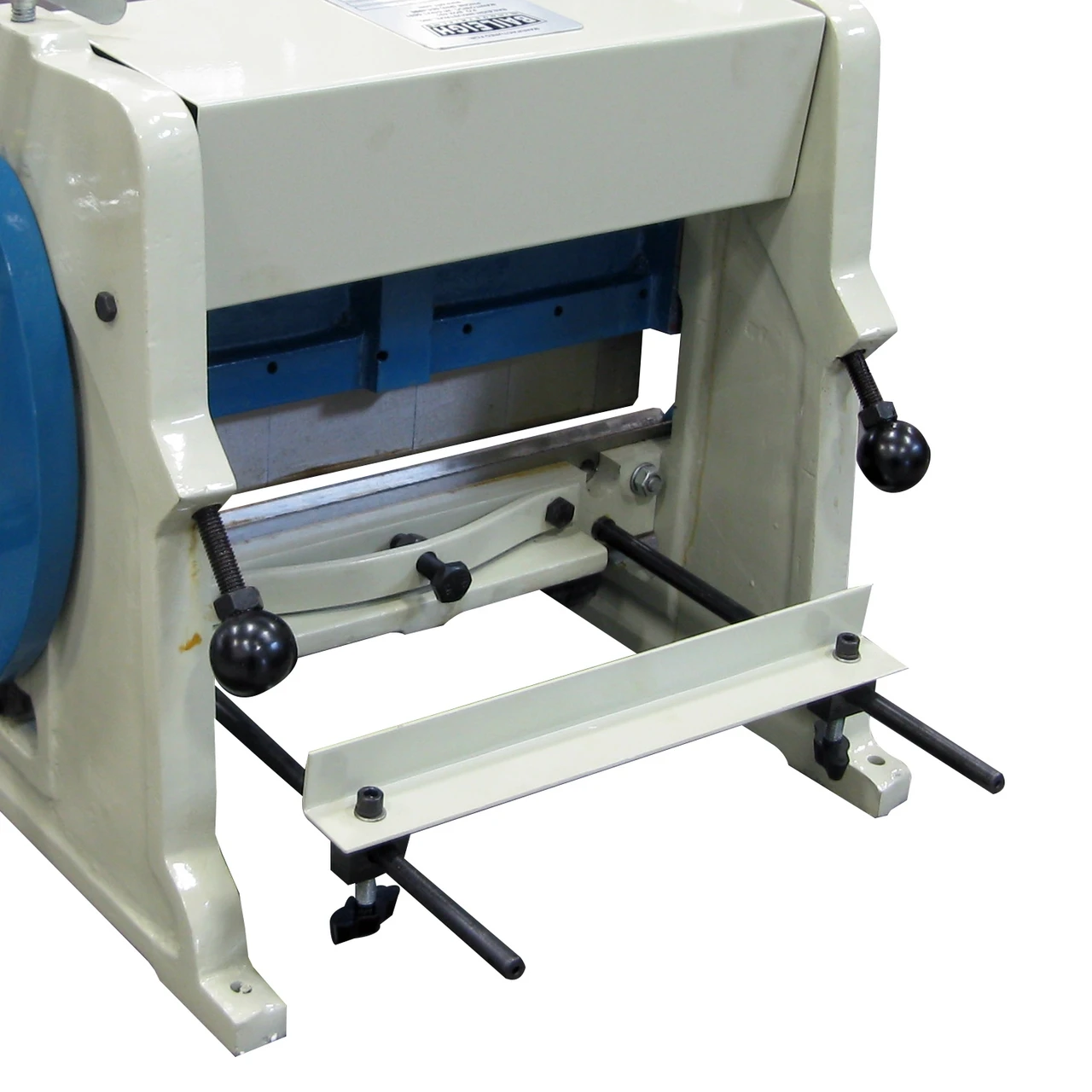

Manual back gauge for repeatability
Sturdy steel frame ensures accuracy
Product identification
- Brand: Baileigh
- Model / MPN: 1006957
