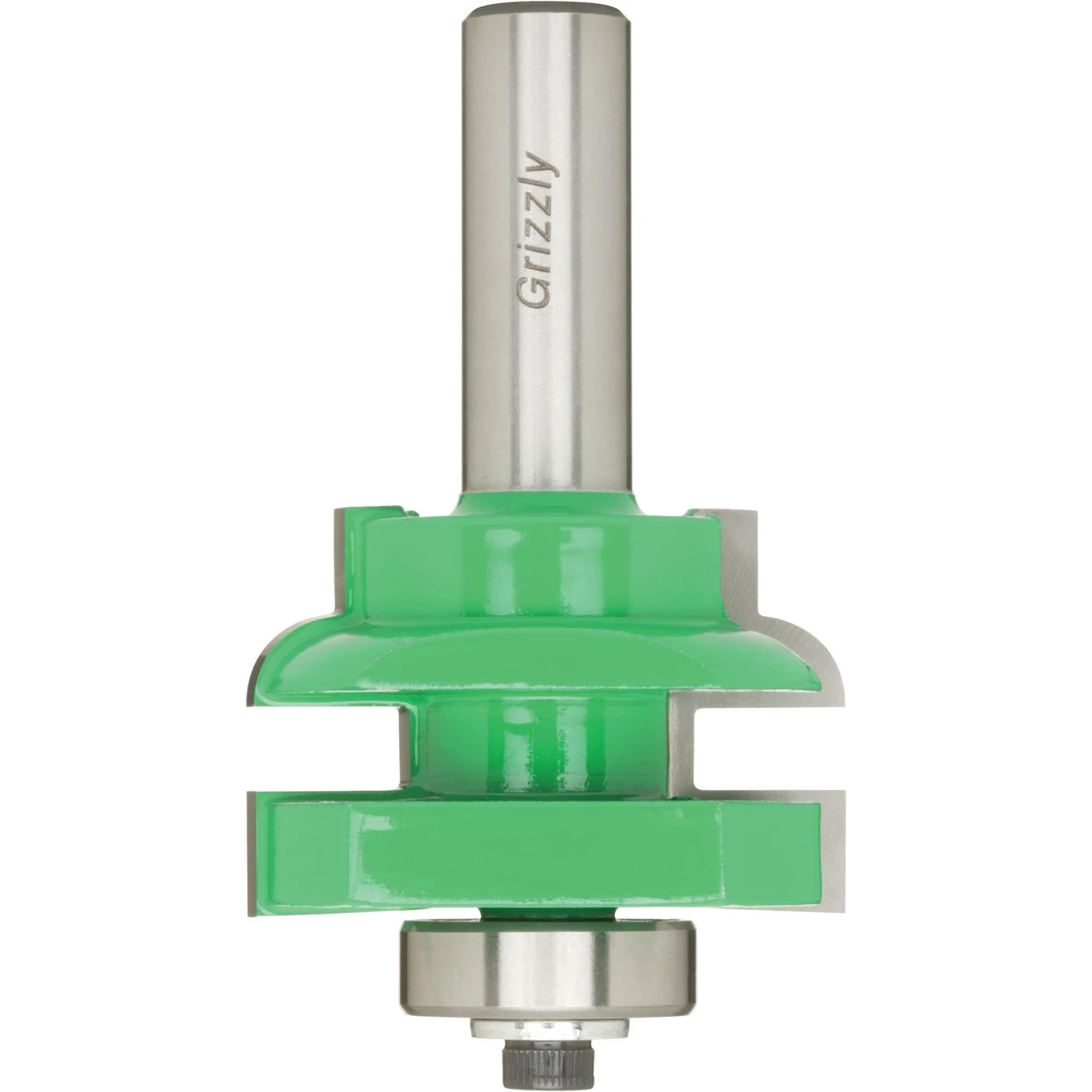

Grizzly Industrial Carbide Tipped Stile & Rail Set 1/2" Shank (C1393, C1394, C1395, C1396)
Grizzly Industrial Carbide-Tipped Stile & Rail Router Bit Sets are expertly designed for creating professional-grade cabinetry and door frames. Suitable for 3/4" to 1" thick door frames, these router bits feature a shear angle, anti-friction coating, 2-flute design, and a guide bearing for precision.
Each stile and rail router bit set is manufactured in an ISO 9001-approved facility to ensure consistent quality and reliability. With various designs, including Quarter Round, Quarter Bead, Roman Ogee, and Ogee, these sets accommodate diverse architectural styles, from contemporary to traditional and Gothic influences.
Specifications and Dimensions
Quarter Round Set (C1393): Cutter Diameter: 1-3/4", Cutting Height: 1-1/8", Overall Length: 3-1/8", Max RPM: 18,000
Quarter Bead Set (C1394): Cutter Diameter: 1-3/4", Cutting Height: 1-1/8", Overall Length: 3-1/8", Max RPM: 18,000
Roman Ogee Set (C1395): Cutter Diameter: 1-3/4", Cutting Height: 1-1/8", Overall Length: 3-1/8", Max RPM: 18,000
Ogee Set (C1396): Cutter Diameter: 1-3/4", Cutting Height: 1-1/8", Overall Length: 3-1/8", Max RPM: 18,000
Order G3845 replacement bearing for all sets
Key Features and Benefits
Durable carbide-tipped for longer life and consistent sharpness
High rim speed and increased cutting surface for smooth finishes
Reversible design for quick and efficient stile and rail matching
Anti-friction coating reduces wear and enhances cutting accuracy
Product identification
- Brand: Grizzly Industrial
