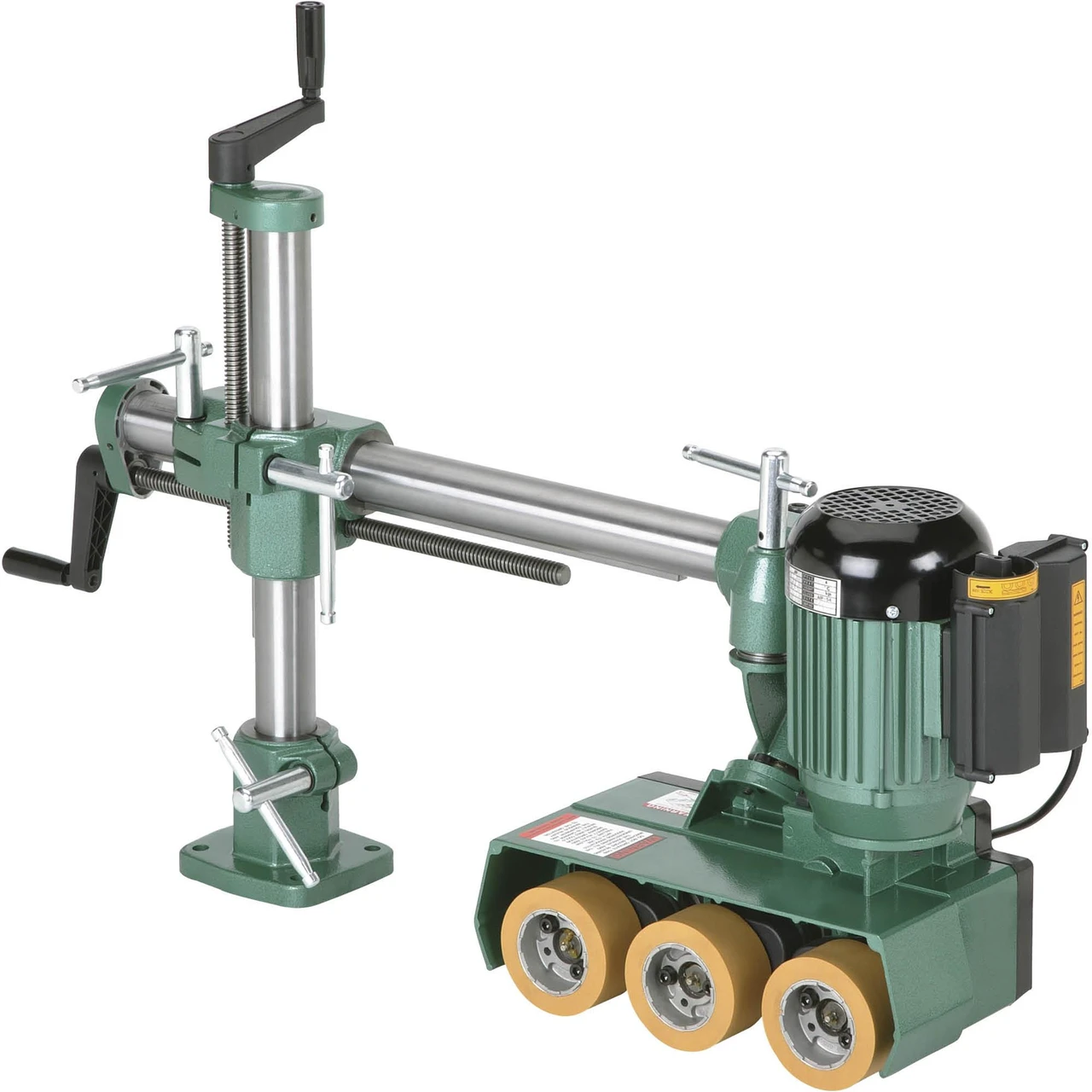

Grizzly Industrial 1/2 HP Power Feeder (G4179)
Grizzly Industrial 1/2 HP Power Feeder (G4179) is engineered to enhance productivity and reduce manual effort during ripping or milling tasks. Equipped with a powerful 1/2 HP motor, this feeder powers three synthetic rubber rollers, each 2" wide and 4" in diameter, for consistent and smooth feeding of your workpieces.
With four adjustable feed rates ranging from 9.5 to 38 feet per minute, the feeder allows you to optimize speeds for various materials and tasks. Designed with forward/reverse feed capabilities, heavy-duty gear reduction, and a universal positioning system, this feeder is an ideal addition to any production setting.
Specifications and Dimensions
Motor: 1/2 HP, 220V, single-phase, 2.9A
Feed speeds: 9.5, 15, 25, 38 FPM
Maximum height of rollers: 7"
Minimum workpiece length: 6"
Horizontal travel: 16"
Vertical travel: 9"
Rollers: (3) synthetic rubber, 2" wide x 4" dia.
Roller suspension: 1"
Key Features and Benefits
Four adjustable feed rates for optimized performance
Durable synthetic rubber rollers for consistent feeding
360° swing and universal positioning for versatility
Heavy-duty gear reduction with hardened gears
Forward/reverse feed capability for added control
Spring-tensioned rollers to accommodate varying material sizes
Product identification
- Brand: Grizzly Industrial
- Model / MPN: G4179
