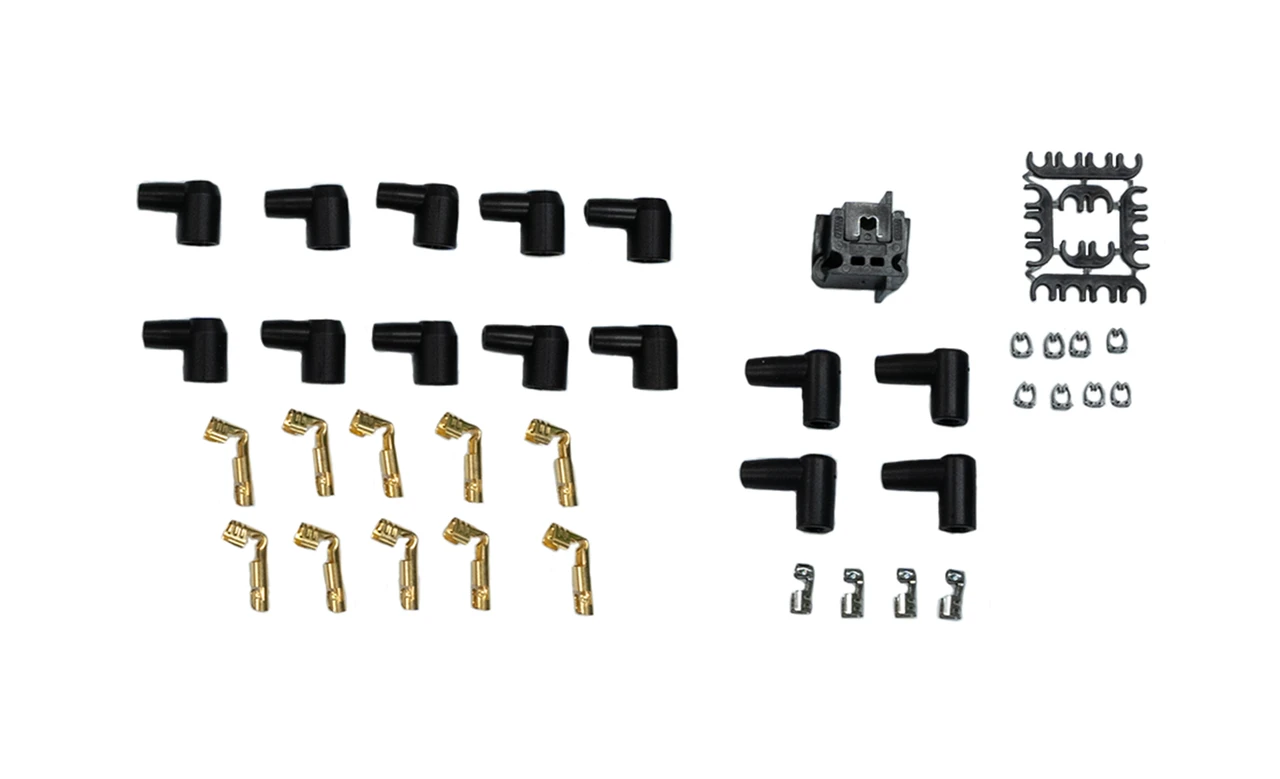

FiTech SBC(UH) Dragster HEI Dist End 90/90 Spark Plug Wire Kit (90018)
KEY FEATURES AND BENEFITS:
High-Temperature Ceramic Spark Plug Boots: Protect against header heat.
Pre-Made Wires: Simplify installation, while extra unterminated wires allow for custom fitment.
Complete Installation Kit: Includes crimping tool, boots, terminals, and wire separators.
Designed for Under-Header Routing: Compatible with dragster HEI distributors.
Wire Diameter: 8mm
Conductor: Spiral wound wire on carbon impregnated fiberglass core
Resistance: 350 Ohms/Ft
Boot Materials: Ceramic (spark plug end), Silicone (distributor end)
Distributor Terminal: Male/HEI (socket)
Spark Plug Boot Angle: 90 degrees
Compatibility: Small Block Chevy (SBC) engines with under-header routing and dragster HEI distributor.
Disconnect the negative battery terminal.
Remove the old spark plug wires from the spark plugs and distributor.
Select the appropriate pre-made or custom wire for each cylinder.
For custom wires, measure and cut the wire to the desired length.
Use the included crimping tool to attach the boots and terminals to the wire ends.
Apply dielectric grease to the inside of the boots.
Connect the spark plug wires to the spark plugs and distributor in the correct firing order.
Secure the wires using the included wire separators.
Reconnect the negative battery terminal.
Start the engine and verify proper operation.
BENEFITS OF USING THE FITECH SBC(UH) DRAGSTER HEI DIST END 90/90 SPARK PLUG WIRE KIT (90018):
Reduced risk of ignition failure due to heat damage.
Flexible installation options for various engine setups.
Minimized interference with electronic components.
Reliable connections.
Ceramic boots rated for high temperature applications.
Spiral wound core for effective RFI/EMI suppression.
Pre-terminated and unterminated wires are included.
Included crimping tool for custom installations.
Wire separation and wire labels included.
Double silicone wire jacket.
Product identification
- Brand: FiTech
- Model / MPN: 90018
