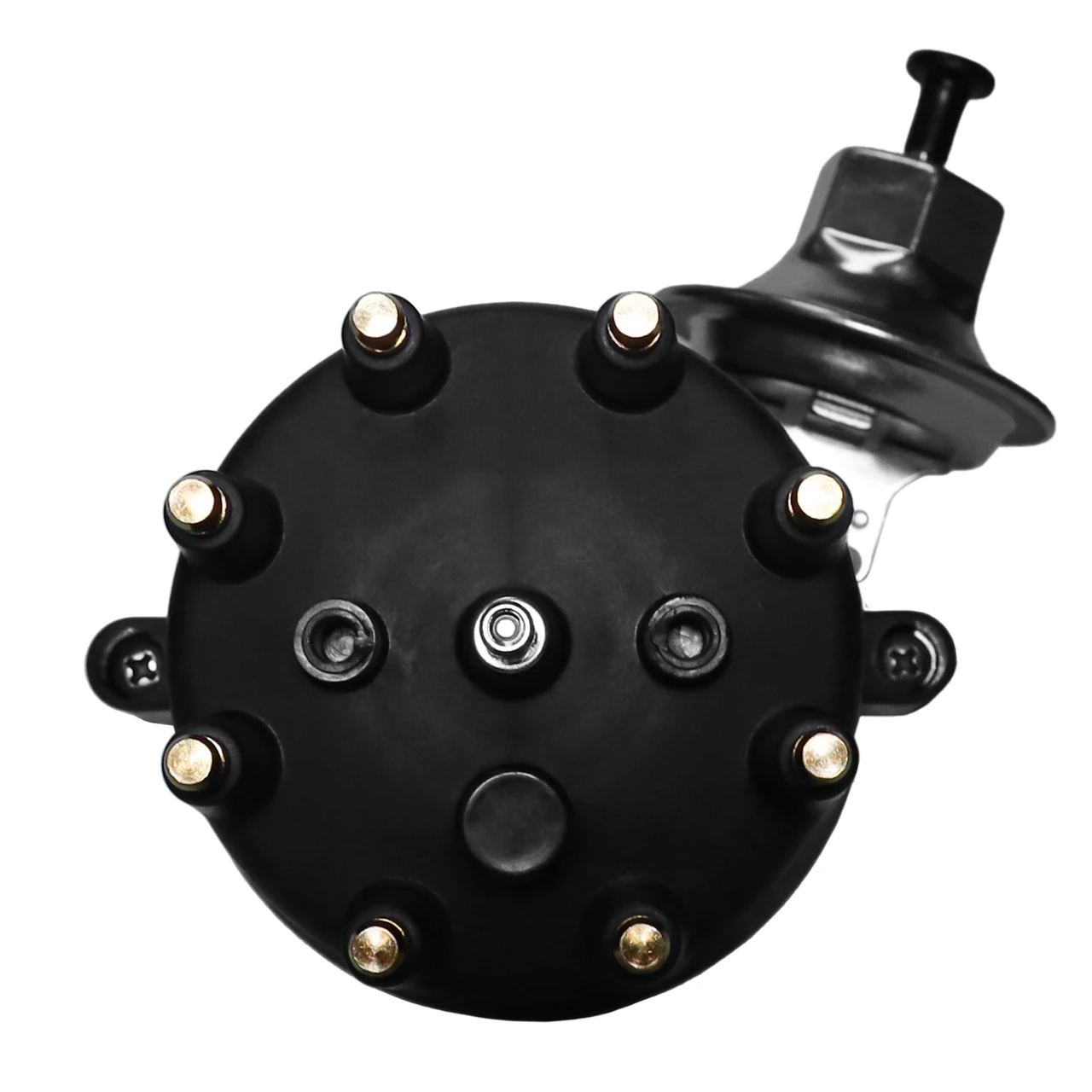

FiTech Buick 400/455 (1967-76 except Nailhead) RTR Distributor (99046)
The FiTech Buick 400/455 (1967-76 except Nailhead) RTR Distributor (99046) is a reliable ignition solution designed for simplified installation and consistent engine performance. It eliminates the need for an external ignition control box, featuring a built-in module and a straightforward 3-wire hookup. This distributor is ideal for crate engines and for replacing older, less efficient points-triggered distributors. It offers adjustable vacuum and mechanical advance, allowing for precise timing adjustments to meet specific engine needs.
KEY FEATURES AND BENEFITS:
Simplified Installation: The built-in module and 3-wire hookup eliminate the need for an external ignition control box, making installation quick and easy.
Adjustable Advance: Both vacuum and mechanical advance are adjustable, allowing for fine-tuning of the ignition timing to optimize engine performance.
High-Quality Construction: The CNC-machined 6061 T-6 aluminum housing and centerless ground shaft provide durability and smooth operation.
Reliable Triggering: The high-output magnetic pickup and large paddle wheel reluctor ensure a strong and consistent trigger signal.
Reliable High RPM Performance: The upper sealed roller bearing and lower bronze oil-lite bushing allow for smooth high RPM operation.
Durable Components: The cap and rotor are made from high-quality glass fiber reinforced polyester.
Distributor Cap Included: Yes
Distributor Cap Style: Male/HEI
Distributor Cap Type: Small cap
Ignition Coil Included: No
Ignition Module Included: Yes
Computer-Controlled Compatible: No
Trigger Style: Magnetic
Advance Type: Vacuum and mechanical
Ignition Box Required: No
Distributor Gear Material: Iron
Distributor Gear Rotation: Standard
Housing Material: Aluminum
Housing Finish: Natural
Compatibility: Buick 6.6L, 7.0L, 7.5L engines
Disconnect the Battery: Disconnect the negative terminal of the vehicle's battery.
Remove Old Distributor: Remove the existing distributor, noting the position of the rotor.
Install New Distributor: Install the FiTech 99046 distributor, aligning the rotor with the noted position.
Connect Wiring: Connect the three wires: power, ground, and tach signal.
Adjust Advance Mechanisms: Adjust the vacuum and mechanical advance as needed for optimal engine performance.
Reconnect Battery: Reconnect the negative terminal of the battery.
Start Engine: Start the engine and verify proper ignition timing.
BENEFITS OF USING FITECH BUICK 400/455 (1967-76 EXCEPT NAILHEAD) RTR DISTRIBUTOR (99046):
Improved engine performance through precise timing adjustments.
Simplified installation reduces setup time and complexity.
Reliable ignition ensures consistent engine operation.
High-quality components provide a longer product lifespan.
Elimination of external ignition boxes declutters the engine bay.
Integrated ignition module for simplified wiring.
CNC-machined aluminum housing for structural integrity.
High-output magnetic pickup for strong signal.
Adjustable vacuum and mechanical advance mechanisms.
Iron gear material for longevity.
HEI-style distributor cap.
Product identification
- Brand: FiTech
- Model / MPN: 99046
