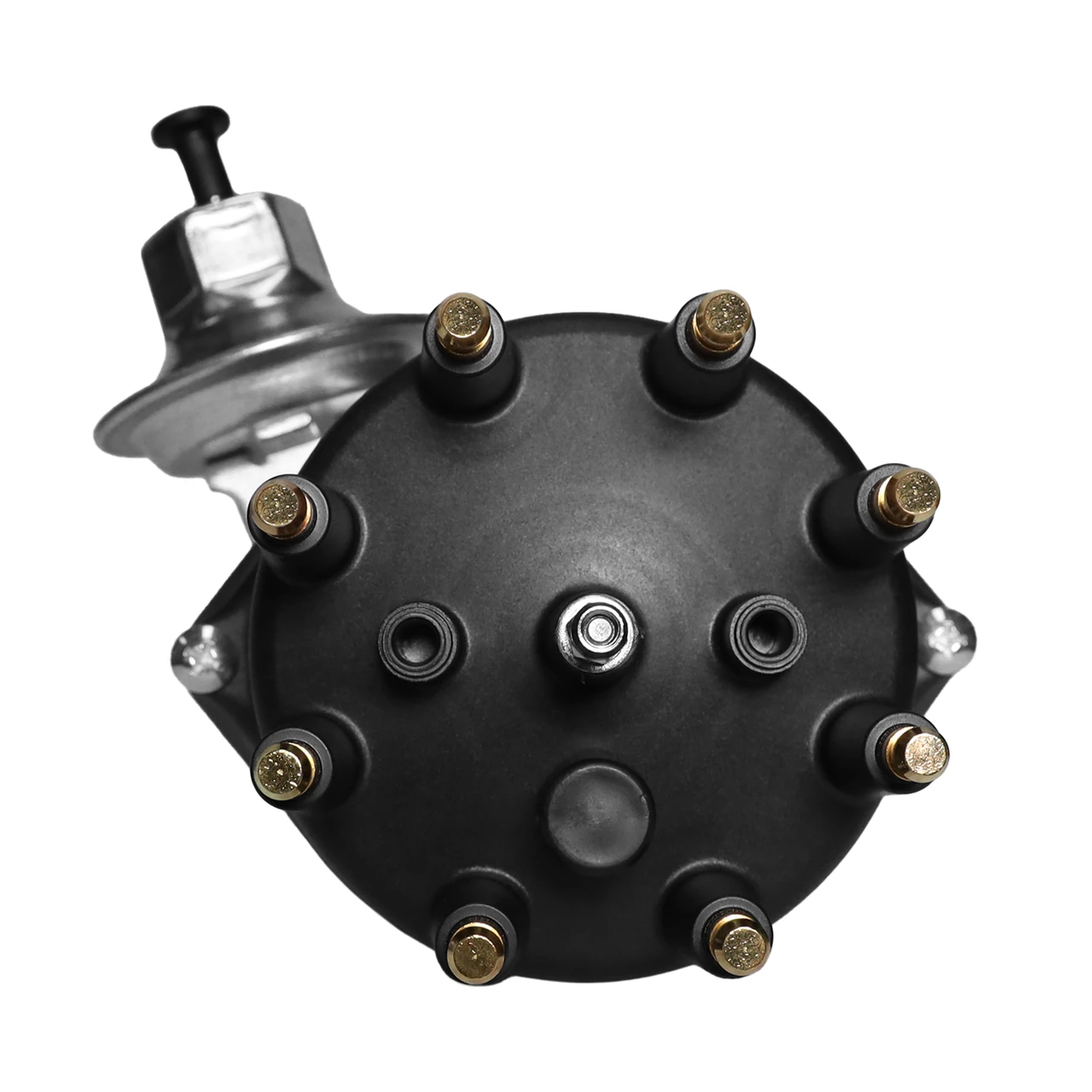

FiTech Ford 332 – 428 FE RTR Distributor (99045)
The FiTech Ford 332-428 FE RTR Distributor (99045) is engineered for Ford 332-428 FE engines, offering a simplified ignition solution for both performance upgrades and stock replacements. This distributor eliminates the need for an external ignition control box, streamlining installation with a straightforward 3-wire connection. Its adjustable vacuum and mechanical advance features allow for precise tuning of engine timing, optimizing performance across various driving conditions.
KEY FEATURES AND BENEFITS:
Simplified Installation: The built-in ignition module eliminates the need for an external control box, simplifying the setup process.
Adjustable Timing: Both vacuum and mechanical advance are adjustable, allowing for fine-tuning of engine timing for optimal performance.
Reliable Triggering: The high-output magnetic pickup and large paddle wheel reluctor provide a strong and consistent trigger signal.
Durable Construction: CNC-machined aluminum housing and high-quality cap and rotor materials ensure long-lasting performance.
Direct Replacement: Designed to replace older point-style distributors or function within crate engines.
Brand: FiTech Fuel Injection
Part Number: 99045
Engine Compatibility: Ford 332-428 FE Engines
Trigger Style: Magnetic
Advance Type: Vacuum and Mechanical (Adjustable)
Ignition Module: Built-In
Distributor Cap Style: Male/HEI
Distributor Cap Type: Small Cap
Distributor Gear Material: Iron
Housing Material: Aluminum
Distributor Gear Rotation: Standard
Distributor Cap Color: Black
Housing Finish: Natural
Disconnect Battery: Remove the negative terminal of the vehicle's battery.
Remove Old Distributor: Take out the existing distributor, noting the rotor position for reference.
Install New Distributor: Align and install the FiTech 99045 distributor with the previously noted rotor position.
Connect Wiring: Attach the 3 wires: power, ground, and tach signal.
Adjust Timing: Modify the mechanical and vacuum advance as needed for optimal engine performance.
Reconnect Battery: Reattach the vehicle's battery.
Verify Timing: Use a timing light to confirm ignition timing and make any necessary adjustments.
BENEFITS OF USING FITECH FORD 332-428 FE RTR DISTRIBUTOR (99045):
Improved Engine Performance: Adjustable timing allows for optimized performance.
Simplified Installation: Built-in module reduces installation complexity.
Increased Reliability: High-quality components ensure consistent ignition.
Direct Replacement: Designed as a direct replacement for older systems.
Reduced Engine Bay Clutter: Eliminates the need for an external ignition box, keeping the engine bay neat.
Centerless ground shaft for smooth operation.
Sealed roller bearing and Oil-Lite bushing for extended life.
High-output magnetic pickup for strong signal.
Brass cap contacts and stainless steel rotor spring.
Glass fiber reinforced polyester (PBT) cap and rotor.
Welded and plated mechanical advance.
Product identification
- Brand: FiTech
- Model / MPN: 99045
