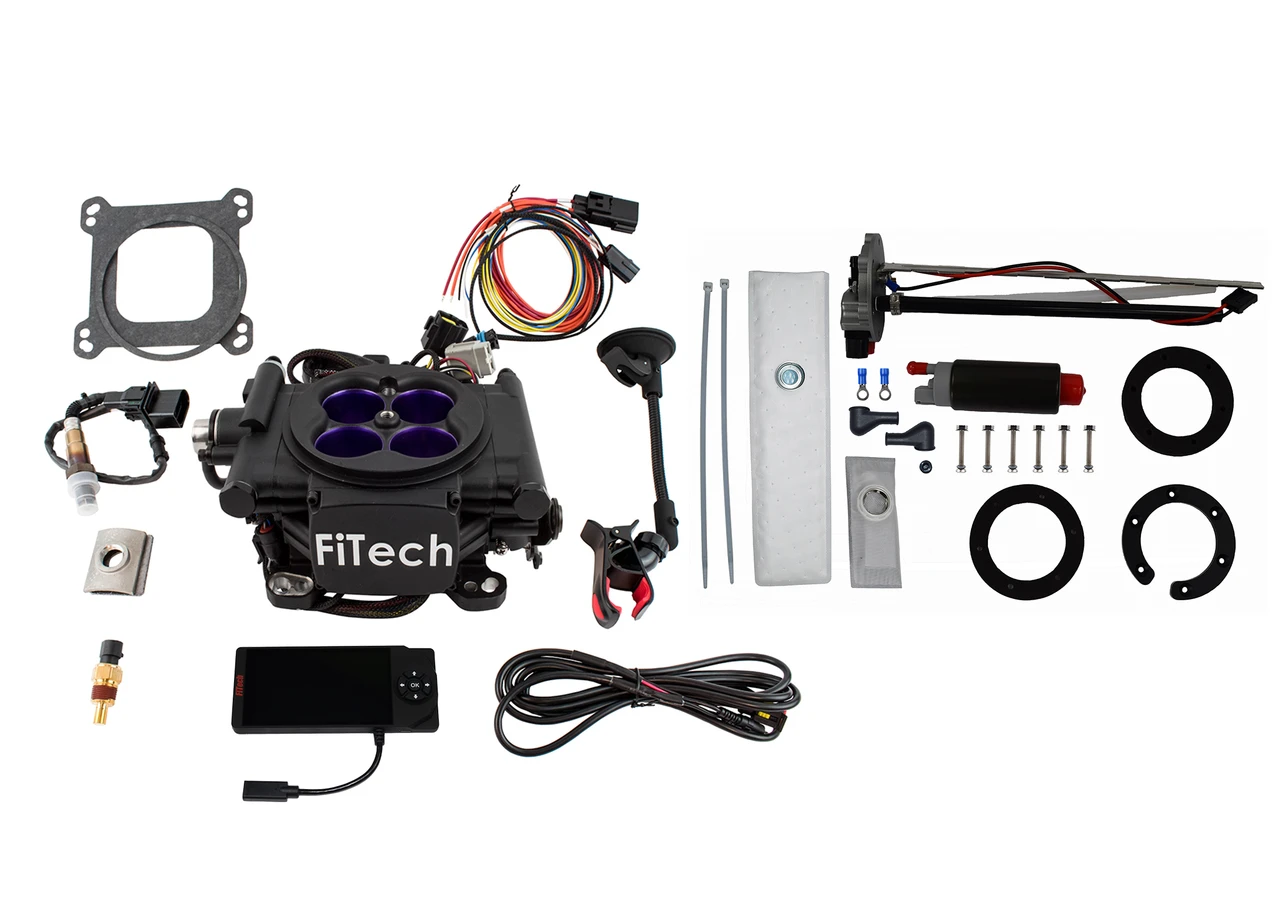

FiTech Mean Street 800HP EFI Matte Black w/InTank Retrofit Kit (36208)
KEY FEATURES AND BENEFITS:
Self-Tuning Technology: Simplifies fuel system setup and optimization.
High Horsepower Support: Rated for up to 800 horsepower, suitable for performance applications.
Comprehensive Kit: Includes ECU, sensors, wiring harness, and in-tank fuel pump module.
Wide Fuel Compatibility: Works with gasoline, E85, methanol, and other alcohol-based fuels.
Nitrous Oxide Compatibility: Designed for use with nitrous oxide systems.
4-Barrel Throttle Body: Bolts directly to standard 4150 flange intake manifolds.
User Adjustable: Handheld monitor allows for fine-tuning.
Maximum Horsepower: 800 HP (Gasoline)
Injection Style: Throttle body
Timing Control: No
Power Adder Compatibility: Yes (Nitrous Oxide)
Fuel Pump: Included (In-tank, 340 LPH)
Transmission Controller: No
Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Diameter: 43 mm
Airflow Rate: 850 CFM
Injector Size: 62 lbs./hr.
Fuel Compatibility: Gasoline, E85, Methanol, Ethanol, Alcohol
Compatibility: Engines with 4-barrel square bore intake manifolds, fuel tanks from 6 to 15 inches deep
Preparation: Disconnect the vehicle's battery. Remove the existing carburetor and intake manifold (if necessary).
Installation: Mount the FiTech throttle body onto the 4-barrel intake manifold. Install the Go Fuel In-Tank fuel pump module into the fuel tank.
Wiring: Connect the wiring harness to the ECU and sensors, following the provided instructions.
Sensor Installation: Install the oxygen sensor, MAP sensor, IAT sensor, and TPS sensor.
Fuel Connections: Connect the fuel lines to the throttle body and fuel pump module.
Initial Setup: Connect the handheld monitor to the ECU. Power on the system and follow the on-screen prompts for initial setup.
Self-Tuning: Allow the system to self-tune during initial operation.
Fine-Tuning: Use the handheld monitor to make any necessary adjustments to the fuel settings.
BENEFITS OF USING THE FITECH MEAN STREET 800HP EFI MATTE BLACK W/ IN TANK RETROFIT KIT (36208):
Enhanced Engine Performance: Increased horsepower and torque.
Simplified Tuning: Self-tuning capabilities reduce setup time.
Versatile Fuel Usage: Compatibility with multiple fuel types.
Reduced Installation Complexity: Integrated ECU and sensors streamline the process.
Annular Swirl Technology: Wet flow design for optimal fuel atomization.
Integrated ECU: Includes cooling fan and air conditioning input control.
Universal Go Fuel In-Tank Module: Comes with -6AN ORB fittings.
Cut-to-Fit Bracket: Compatible with fuel tanks 6 to 15 inches deep.
340 LPH Fuel Pump: Includes multiple fuel filter socks.
4.5 Inch Display: User interface for easy monitoring and adjustments.
Flexible Metering Options: Support for speed density (Map-N) or speed throttle (Alpha-N) metering.
Product identification
- Brand: FiTech
- Model / MPN: 36208
