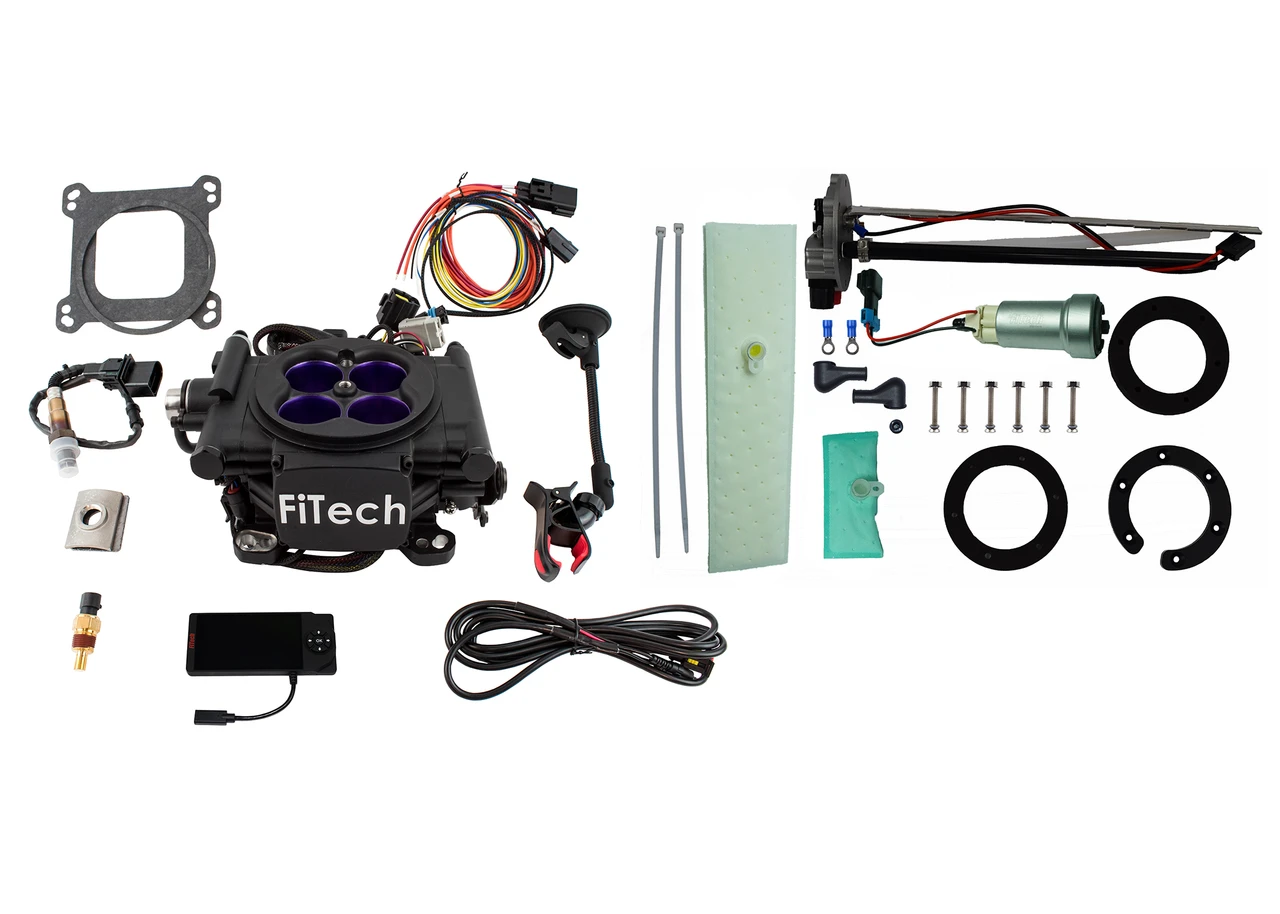

FiTech Mean Street 800 HP Matte Black EFI w/In Tank Master Kit (36108)
KEY FEATURES AND BENEFITS:
High-Performance Support: Engineered for applications supporting up to 800 horsepower.
Integrated ECU and MAP Sensor: Streamlines installation and operation.
Go Fuel In-Tank Module: Includes a 340 LPH fuel pump, compatible with various fuel types.
Self-Tuning Capability: Driven by a wide-band oxygen sensor for automatic adjustments.
4.5-Inch Handheld Display: Enables user fine-tuning and monitoring.
Nitrous Oxide Compatibility: Versatile for various performance setups.
4-Barrel Square Bore Throttle Body Design: Suitable for direct replacement of carburetors.
Maximum Horsepower: 800 HP
Injection Style: Throttle body
Timing Control: No
Power Adder Compatibility: Nitrous Oxide
Fuel Pump: Included (340 LPH in-tank)
Metering Style: Speed density (MAP-N)
Throttle Body Flange: 4-barrel square bore
Injector Size: 62 lbs/hr
Fuel Compatibility: Gasoline, E85, Methanol, Ethanol, Alcohol
Display: 4.5-inch handheld
Venturi Diameter: 43 mm
Airflow Rate: 850 CFM
Compatibility: Engines with 4-barrel square bore intake manifolds
Installation: Mount the throttle body to the 4-barrel intake manifold. Install the in-tank fuel pump module, ensuring proper connections.
Wiring: Connect the wiring harness to the engine sensors and power supply, following the provided instructions.
Sensor Installation: Install the wide-band oxygen sensor in the exhaust system and connect the MAP, IAT, and TPS sensors.
Initial Setup: Power on the system and use the 4.5-inch display to input basic engine parameters.
Self-Tuning: Start the engine and allow the system to self-tune based on the oxygen sensor readings.
Fuel System: Ensure the fuel system is properly filled and pressurized.
BENEFITS OF USING THE FITECH MEAN STREET 800 HP MATTE BLACK EFI W/IN TANK MASTER KIT (36108):
Easy Monitoring and Adjustments: Handheld display allows for straightforward adjustments and performance tracking.
Versatility: Nitrous oxide compatibility and multi-fuel support cater to different performance needs.
Annular Swirl, Wet Flow Technology: Improves fuel atomization.
Included "Go Fuel In-Tank Module": Features a 340 LPH fuel pump.
User-Adjustable Parameters: Accessible via the 4.5-inch handheld display.
Multi-Fuel Support: Works with gasoline, E85, methanol, ethanol, and alcohol.
Black Cast Aluminum Throttle Body: Sleek appearance and durable construction.
Product identification
- Brand: FiTech
- Model / MPN: 36108
