FiTech fuel pump details

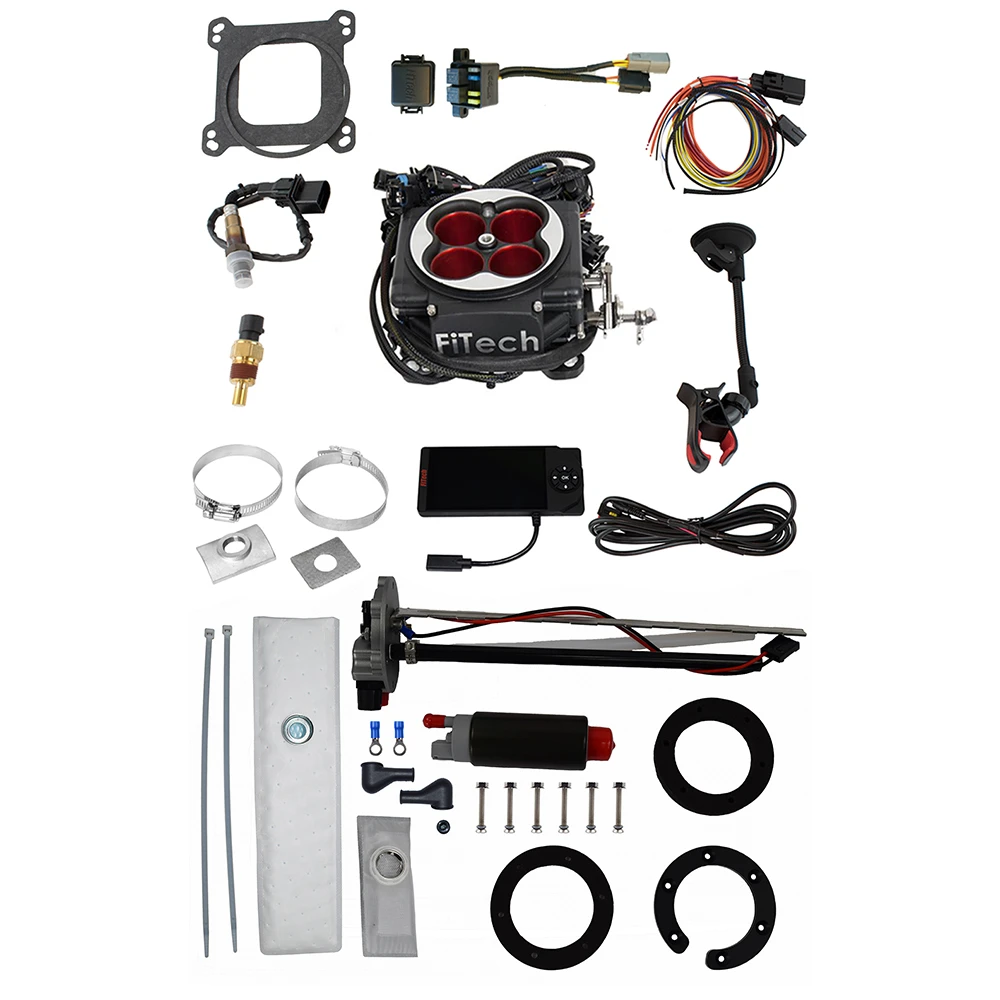

FiTech Go Port EFI System Standalone w/ In-Tank Fuel Pump (36209)
The FiTech Go Port EFI System Standalone w/ In-Tank Fuel Pump (36209) offers a complete solution for converting carbureted engines to electronic fuel injection. This system combines a high-flow throttle body with an integrated ECU and an in-tank fuel pump module, simplifying installation and improving engine performance. Designed for 8-cylinder engines, this kit supports up to 800 horsepower and provides precise fuel management.
KEY FEATURES AND BENEFITS:
This master kit includes everything needed for a seamless EFI conversion.
The hand-held touchscreen controller allows for easy tuning and adjustments.
The system supports on-the-fly changes to air/fuel ratios and ignition timing, optimizing performance for various driving conditions.
The kit is compatible with boosted applications and nitrous oxide, providing versatility for performance enthusiasts.
Fuel Injection Style: Multi-port
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Timing Control Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Quantity: 4
Venturi Diameter: 44mm
Airflow Rate: 850 CFM
Maximum Horsepower: 800 HP (naturally aspirated)
Fuel Pump Style: In-tank fuel pump
Preparation: Disconnect the battery and remove the existing carburetor and fuel system components.
Throttle Body Installation: Mount the FiTech throttle body onto the intake manifold. Install the included sensors and connect the wiring harness.
Wiring: Connect the wiring harness to the vehicle's electrical system, following the provided instructions.
Sensor Installation: Install the oxygen sensor, MAP sensor, and IAT sensor.
ECU Connection: Ensure the ECU is properly connected to the throttle body and wiring harness.
Initial Setup: Connect the hand-held touchscreen controller and follow the on-screen prompts for initial setup and calibration.
Tuning: Use the hand-held controller to adjust air/fuel ratios, ignition timing, and other parameters as needed.
Testing: Start the engine and verify proper operation. Make adjustments as necessary.
BENEFITS OF USING THE FITECH GO PORT EFI SYSTEM STANDALONE W/ IN-TANK FUEL PUMP (36209):
Improved engine performance and throttle response.
Enhanced fuel efficiency.
Reliable cold starts and consistent operation.
Easy tuning and adjustments with the hand-held controller.
Simplified installation with the included in-tank fuel pump module.
Compatibility with boosted applications and nitrous oxide.
Integrated ECU within the throttle body.
Adjustable fan control switches.
OBD II fault code readouts.
Internal MAP sensor for precise air/fuel management.
Air conditioning idle speed kick-up.
Works with multiple fuel types, including gasoline, methanol, and E85.
Uses GM style sensors and Bosch wideband O2 sensor.
Ability to change air/fuel ratios and ignition timing on the fly.
Product identification
- Brand: FiTech
- Model / MPN: 36209
