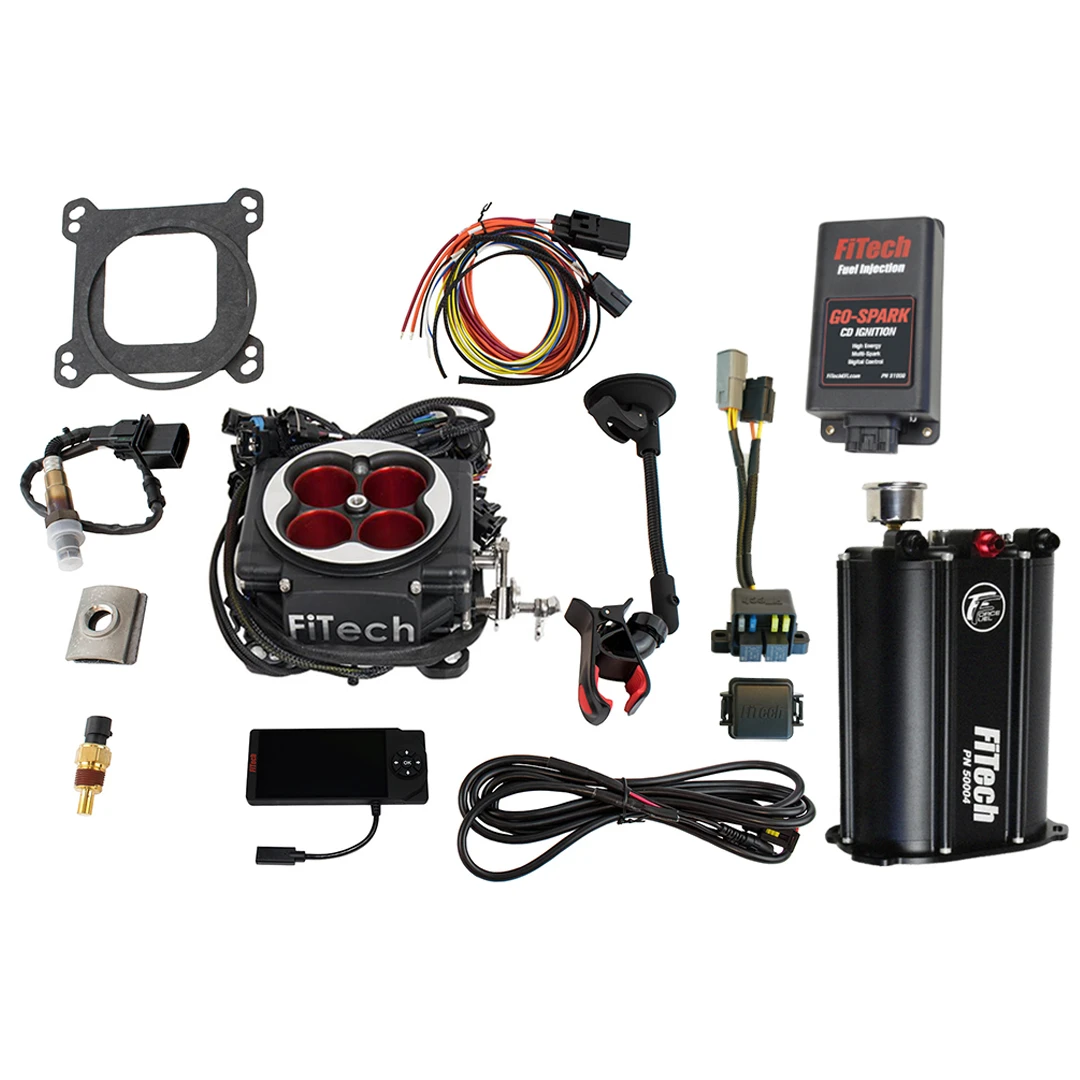

FiTech Go Port EFI Standalone w/ Force Fuel & CDI Master Kit (93514)
KEY FEATURES AND BENEFITS:
The FiTech 93514 Go Port EFI System delivers several key benefits, including a self-tuning ECU built into the throttle body, simplifying installation and setup.
The Force Fuel system ensures a consistent fuel supply, supporting up to 800 hp on gasoline.
The Go-Spark CDI ignition provides a strong, consistent spark, improving starting, idle quality, and overall combustion.
The 4.5-inch touch screen controller allows for easy monitoring and adjustments.
This kit is designed for a direct replacement of 4-barrel carburetors.
Fuel Injection Style: Multi-port
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Timing Control Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: Surge tank
Ignition System Included: Ignition box
User Interface Included: 4.5 in. display
Metering Style: Speed density
Throttle Body Mounting Flange: 4-barrel square bore
Airflow Rate (cfm): 850 cfm
Venturi Diameter (mm): 44.00mm
Fuel System Support: 800 hp on gasoline
Fuel Pressure Regulation: 58 psi
Preparation: Remove the existing 4-barrel carburetor and related components.
Throttle Body Installation: Mount the FiTech throttle body onto the intake manifold using the provided gaskets.
Fuel System Setup: Install the Force Fuel system, connecting the fuel pump, filter, and regulator. Attach the provided fuel lines.
Ignition System Connection: Install the Go-Spark CDI box and connect it to the distributor and other necessary components.
Sensor Installation: Install the O2, MAP, IAT, TPS, and IAC sensors according to the provided instructions.
Wiring Harness Connection: Connect the wiring harness to the throttle body, sensors, fuel system, and ignition system.
Controller Setup: Connect the handheld touch screen controller and follow the on-screen instructions for initial setup and tuning.
Initial Start and Tuning: Start the engine and allow the self-tuning feature to adjust the fuel and ignition settings. Fine-tune as needed using the controller.
BENEFITS OF USING THE FITECH GO PORT EFI STANDALONE W/ FORCE FUEL & CDI MASTER KIT (93514):
Improved fuel efficiency compared to traditional carburetors.
Enhanced engine performance and throttle response.
Simplified installation and setup with self-tuning capabilities.
User-friendly interface for monitoring and adjustments.
Modernizes older carbureted engines.
Integrated ECU within the throttle body for simplified wiring.
Surge tank fuel system to prevent fuel starvation.
Touch screen display for real-time engine monitoring.
Speed density based fuel calculations.
Direct replacement for 4150 flange 4-barrel carburetors.
850 CFM throttle body.
Compatibility with various distributor types.
Product identification
- Brand: FiTech
- Model / MPN: 93514
