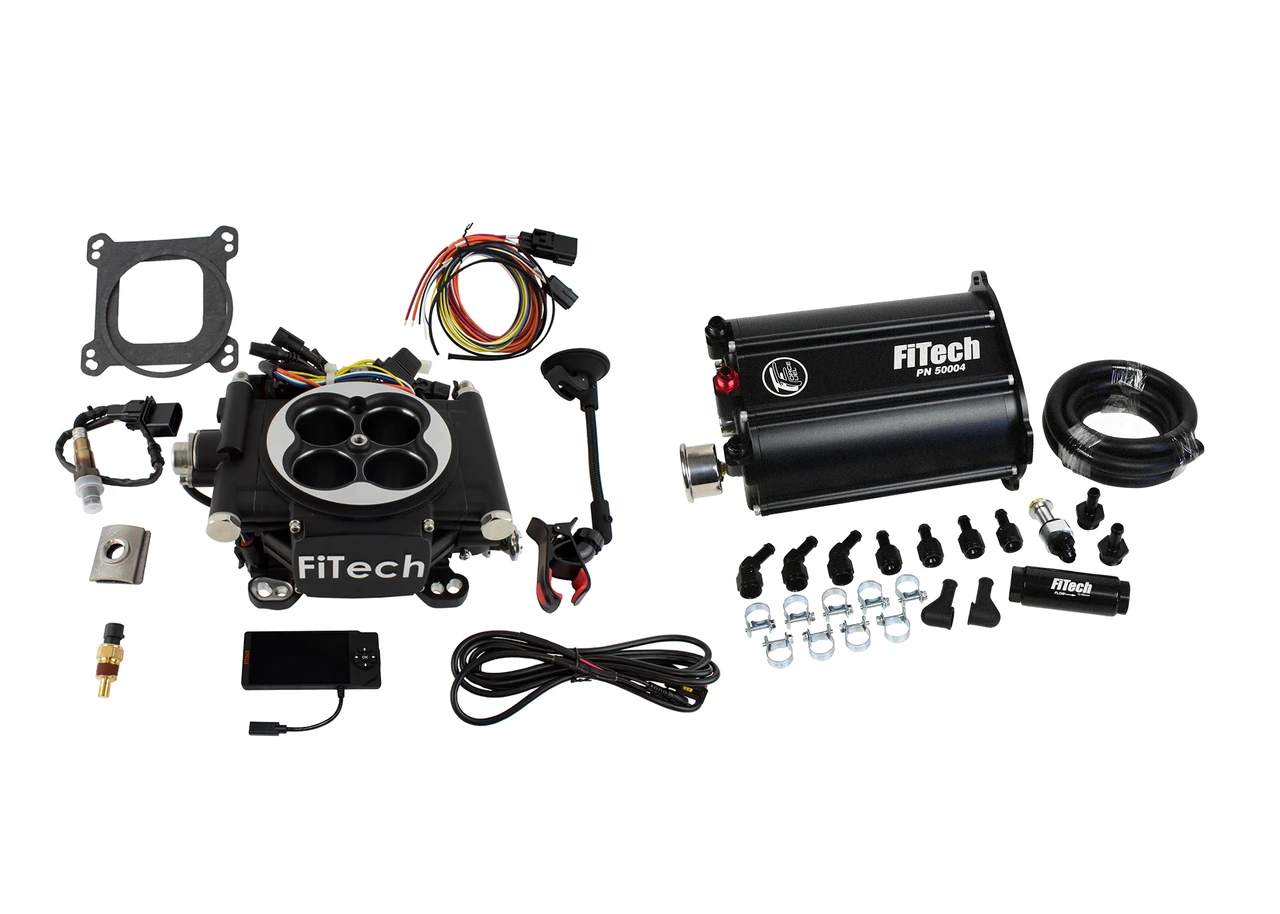

FiTech Go EFI 4 System 600HP Black Master Kit w/Force Fuel (35202)
KEY FEATURES AND BENEFITS:
High Airflow Capacity: 850 CFM 4-barrel throttle body mounts to standard 4-barrel intake manifolds.
Sufficient Fuel Flow: 80 lbs./hr injectors provide adequate fuel flow for high-performance applications.
Maximum horsepower: 600 HP
Injection style: Throttle body
Timing control: Yes
Power adder compatible: No
ECU included: Yes
Fuel pump included: Yes (Force Fuel system)
Transmission controller included: No
Metering style: Speed density (MAP-N)
Throttle body mounting flange: 4-barrel square bore
Airflow rate: 850 CFM
Injector size: 80 lbs./hr
Fuel pump flow rating: 340 LPH
User interface: 4.5 in. display
Preparation: Disconnect the negative battery terminal. Remove the existing carburetor and intake manifold (if needed).
Installation: Mount the FiTech throttle body onto the intake manifold. Install the Force Fuel system, connecting it to your existing fuel pump and fuel lines.
Wiring: Connect the wiring harness to the vehicle's electrical system, following the provided instructions. Install the oxygen sensor.
Sensor Installation: Install the MAP, IAT, and TPS sensors.
Initial Setup: Connect the 4.5-inch display and follow the on-screen prompts for initial setup.
Fuel System Priming: Prime the fuel system by cycling the ignition key.
Fine-Tuning (Optional): Use the display to adjust air/fuel ratios and ignition timing as needed.
BENEFITS OF USING THE FITECH GO EFI 4 SYSTEM 600HP BLACK MASTER KIT W/FORCE FUEL (35202):
Improved fuel efficiency compared to carburetors.
Enhanced engine performance and responsiveness.
Easier starting and smoother idle.
Reduced maintenance and elimination of carburetor-related issues.
Simplified installation with integrated ECU.
4-Barrel Design: Features a 43mm venturi diameter.
Durable Construction: Cast aluminum throttle body with a satin black finish.
Fuel Compatibility: Works with alcohol, gasoline, methanol, and flex fuels.
Included Components: Calibration module and wiring harness.
External Fuel Pump Style: Utilizes the included Force Fuel system.
Included IAC Motor: For improved idle control.
Universal Fitment: Designed for a wide range of applications.
Product identification
- Brand: FiTech
- Model / MPN: 35202
