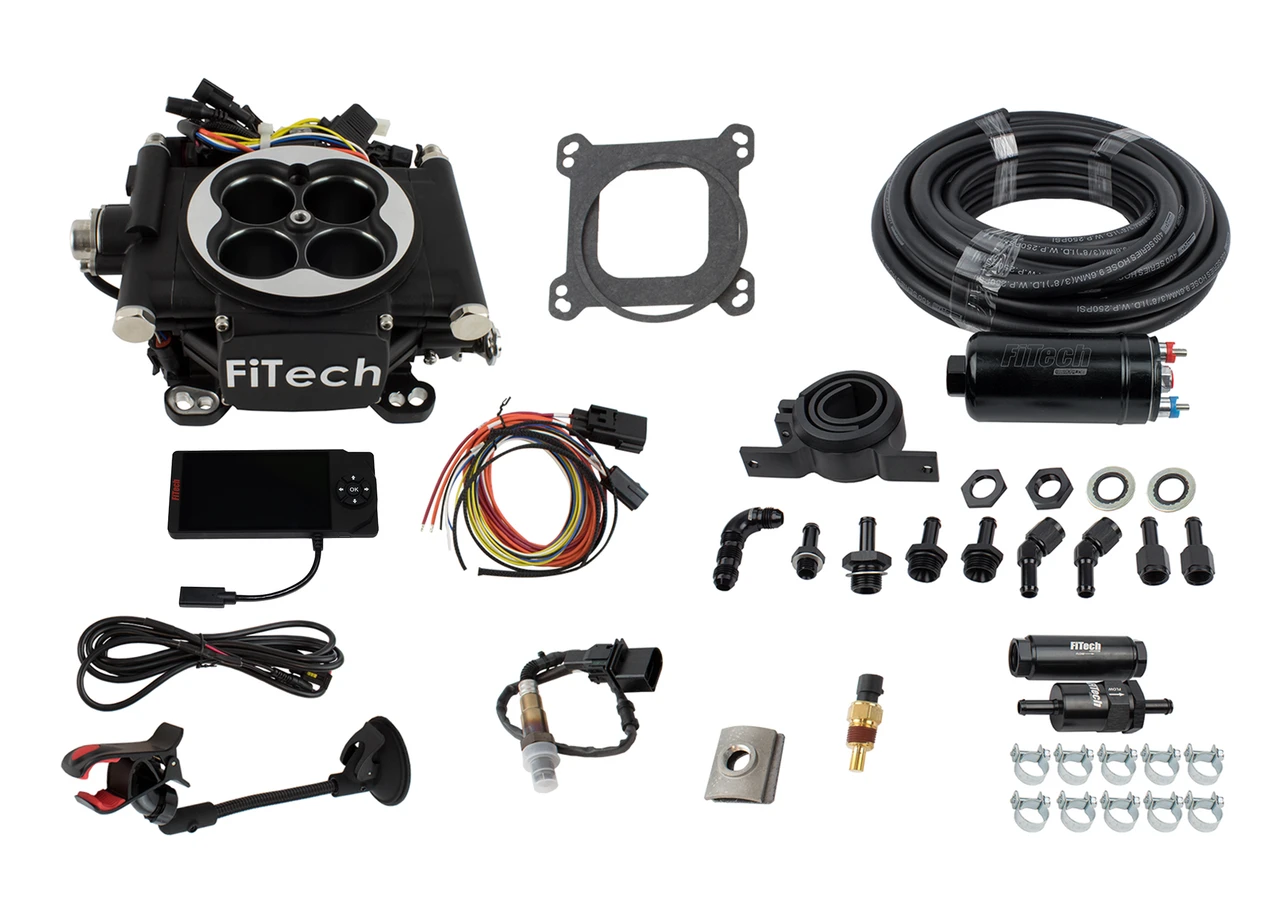

FiTech Go EFI 4 600 HP Black Master Kit w/Inline Fuel Pump (31002)
The FiTech Go EFI 4 600 HP Black Master Kit w/Inline Fuel Pump (31002) is a comprehensive electronic fuel injection system designed to replace traditional 4-barrel carburetors. It offers self-tuning capabilities, making it suitable for a wide range of engines from 200 to 650 horsepower. This system is ideal for street machines, weekend racers, and everyday drivers seeking improved performance and fuel efficiency. It features an ECU mounted directly on the throttle body for simplified installation, and includes an inline fuel pump and all necessary components for a complete conversion.
KEY FEATURES AND BENEFITS:
Modern alternative to carburetors with self-tuning for optimal air/fuel ratios.
Hand-held touch screen controller simplifies initial setup.
Integrated timing control reduces the need for external spark boxes.
Built-in fuel pressure regulator maintains stable fuel pressure.
Enhanced engine performance and improved fuel economy.
Easier maintenance.
Horsepower Range: 200-650 HP
Throttle Body: 4-barrel square bore (4150 flange)
Airflow Rate: 850 CFM
Injector Size: 80 lbs/hr
Fuel Pump Flow: 255 LPH
ECU: Integrated on throttle body
Timing Control: Yes
Fuel Pressure Regulator: Built-in
Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
Display: 4.5 inch touch screen
Venturi Diameter: 44.45 mm
Preparation: Remove the existing 4-barrel carburetor and clean the intake manifold surface.
Installation: Mount the FiTech throttle body onto the intake manifold using the provided gasket.
Wiring: Connect the wiring harness to the necessary sensors (O2, CTS, MAP, IAT, TPS).
Sensor Installation: Install the O2 sensor into the exhaust system, and connect the coolant temperature sensor.
ECU Connection: Plug the hand-held controller into the ECU for initial setup.
Initial Setup: Use the touch screen controller to input engine parameters and perform the initial calibration.
BENEFITS OF USING FITECH GO EFI 4 600 HP BLACK MASTER KIT W/INLINE FUEL PUMP (31002):
Improved fuel efficiency compared to traditional carburetors.
Enhanced engine performance and throttle response.
Simplified installation with the ECU mounted on the throttle body.
Self-tuning capability for optimal air/fuel ratios.
Integrated timing control for precise ignition adjustments.
Easy to use touch screen controller.
Direct replacement for 4-barrel carburetors.
Integrated fuel pressure regulation.
Wideband oxygen sensor for accurate feedback.
Compatibility with various engine types.
Electric fuel pump control to lower fuel temperatures.
Ability to work with alcohol and methanol fuel types.
Uses GM style sensors for easy replacement.
Wet flow swirl spray for complete atomization.
Product identification
- Brand: FiTech
- Model / MPN: 31002
