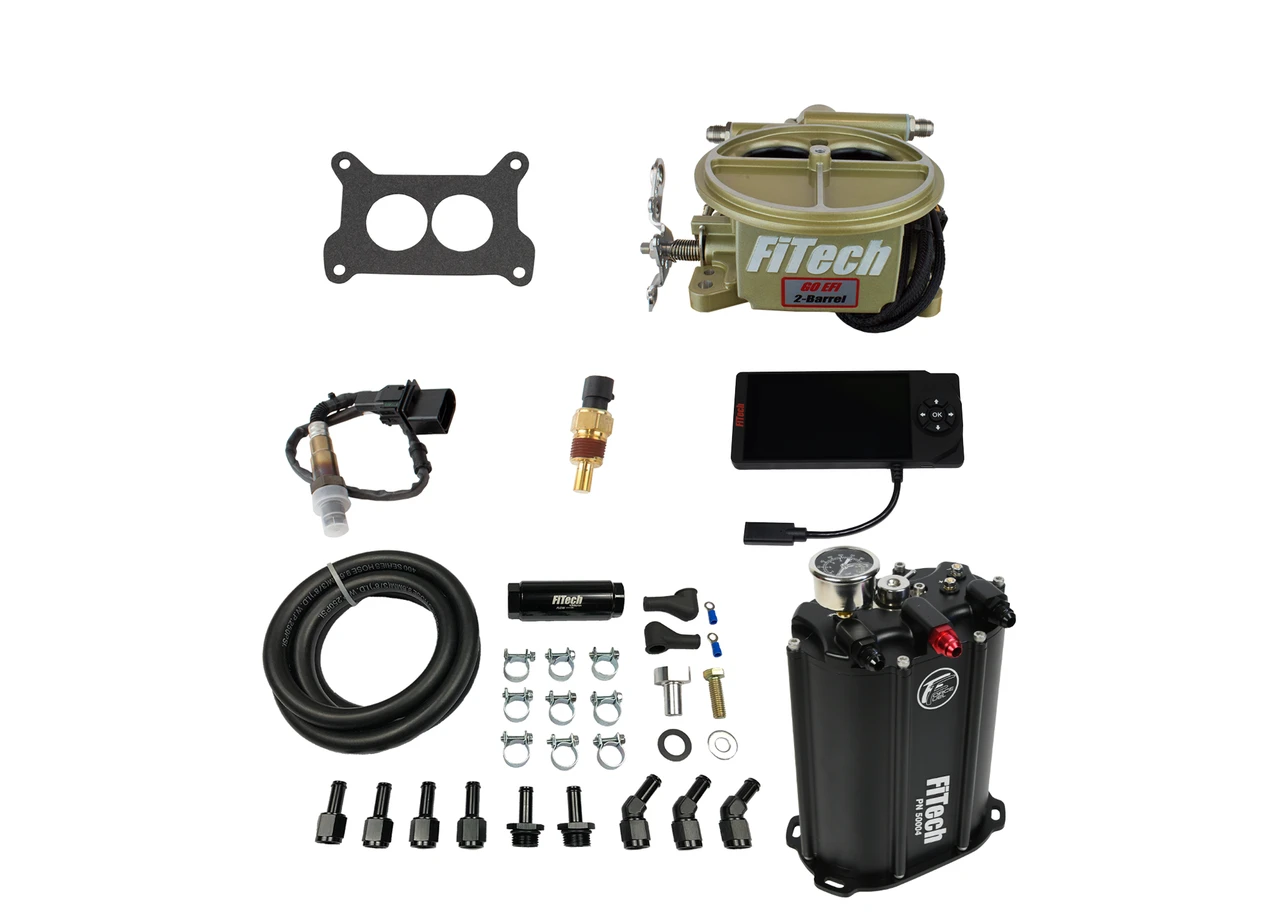

FiTech Go EFI 2-Barrel 400HP Classic Gol w/Force Fuel (35001)
KEY FEATURES AND BENEFITS:
Horsepower Support: Suitable for engines up to 400 horsepower, catering to a range of performance applications.
Force Fuel System: Streamlines installation by acting as a fuel reservoir and high-pressure pump, eliminating complex fuel line setups.
Fuel Compatibility: Works with various fuel types, including gasoline, E-85, alcohol, and methanol.
Horsepower support: Up to 400 HP
Fuel pump: 340 LPH electric pump
Fuel pressure: 58 PSI (integrated regulator)
Throttle body flange: Holley 2300 2-barrel
Fuel compatibility: Gasoline, E-85, alcohol, methanol
ECU: Self-tuning
Preparation: Disconnect the battery and remove the existing 2-barrel carburetor.
Installation: Mount the FiTech 35001 throttle body onto the intake manifold using the Holley 2300 flange.
Force Fuel System: Position the Force Fuel system in a suitable location and connect the fuel lines.
Wiring: Connect the wiring harness, including the oxygen sensor, coolant temperature sensor, and power supply.
Sensor Installation: Install the oxygen sensor in the exhaust system and the coolant temperature sensor in the engine.
Handheld Controller: Connect the handheld controller to the ECU and follow the on-screen instructions for initial setup.
Fine-Tuning: Use the handheld controller to make any necessary adjustments after the initial tuning process.
Verification: Verify proper operation and fuel pressure.
BENEFITS OF USING THE FITECH GO EFI 2-BARREL 400HP CLASSIC GOLD W/FORCE FUEL (35001):
Eliminates common carburetor issues such as hesitations and flooding.
Improves cold start performance and overall engine drivability.
Enhances fuel efficiency compared to traditional carburetors.
Simplifies fuel system installation with the integrated Force Fuel system.
Classic Gold Finish: Attractive appearance on the throttle body.
Integrated Fuel Pump: 340 LPH high-pressure fuel pump included.
Onboard ECU: Self-tuning electronic control unit for optimal performance.
Handheld Controller: For monitoring and adjustments.
Included Sensors: Oxygen sensor and coolant temperature sensor are included.
Wide Fuel Compatibility: Works with a range of fuel types.
Throttle Body Flange: Uses a Holley 2300 2-barrel flange.
Integrated Regulator: Ensures consistent fuel pressure.
Product identification
- Brand: FiTech
- Model / MPN: 35001
