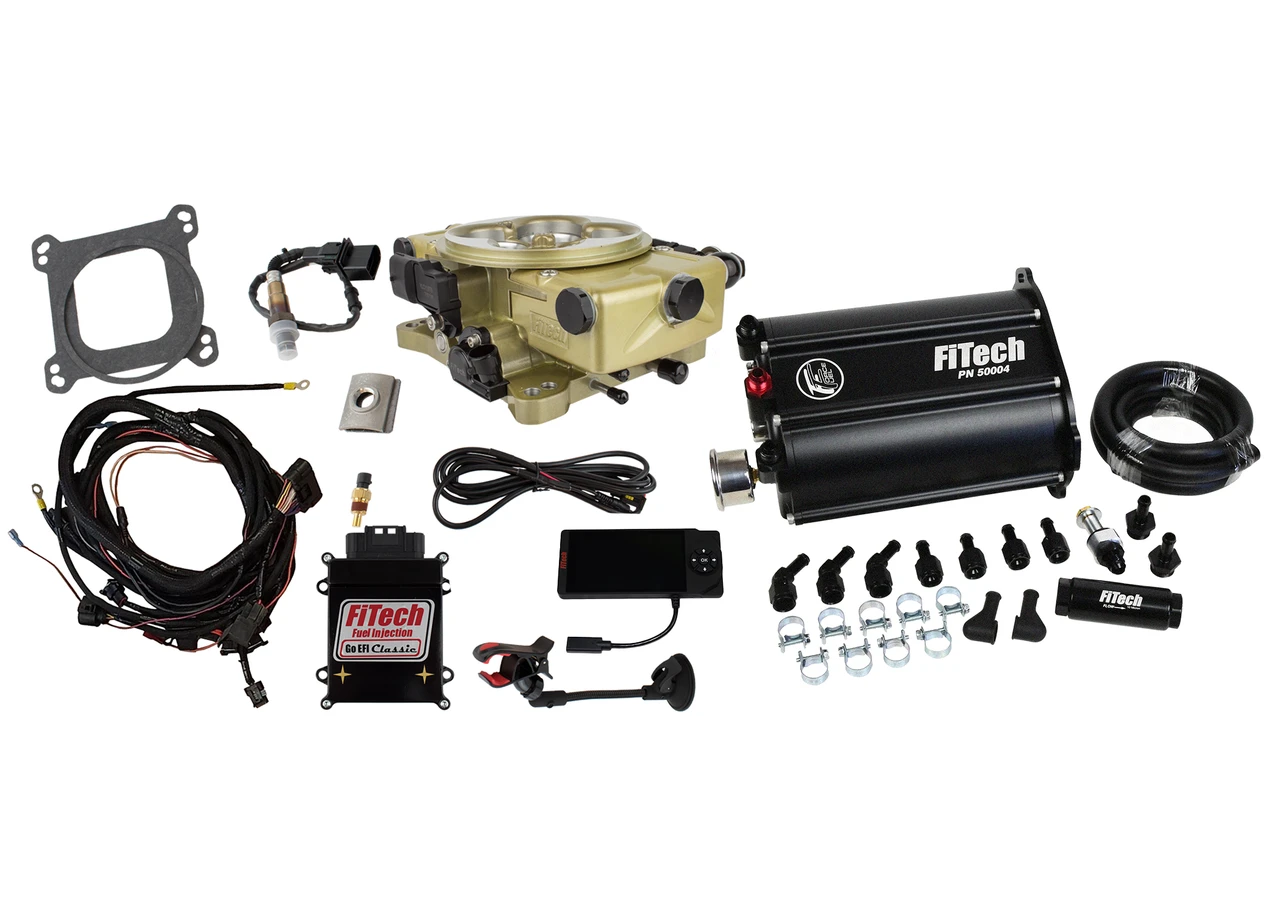

FiTech Go 650HP EFI Gold External ECU w/Force Fuel (35220)
KEY FEATURES AND BENEFITS:
Improved Fuel Efficiency: Enhances performance compared to traditional carburetors.
Smoother Idle: Provides better throttle response.
Classic Aesthetic: Gold finish maintains the original look of your vehicle.
Maximum Horsepower: 650 HP
Injection Style: Throttle body
Throttle Body: 4-barrel square bore, 850 CFM
Injectors: 80 lbs./hr.
Fuel System: Force Fuel system (surge tank, external pump)
ECU: External, included
Sensors: O2, MAP, IAT, TPS
Metering: Speed density (MAP-N)
User Interface: 4.5-inch display
Fuel Type: Gasoline, alcohol, methanol, flex fuel
Dimensions: 16 × 23 × 8 in.
Remove: The existing carburetor and intake manifold gasket.
Install: The FiTech throttle body onto the intake manifold.
Mount: The external ECU in a suitable location.
Install: The Force Fuel system, including the surge tank and fuel pump.
Connect: The wiring harness to the throttle body, ECU, and sensors.
Install: The oxygen sensor in the exhaust system.
Connect: The user interface display.
Connect: The fuel lines to the Force Fuel system and throttle body.
Verify: All connections and fill the fuel system.
Start: The engine and allow the self-learning ECU to adjust fuel settings.
BENEFITS OF USING THE FITECH GO 650HP EFI GOLD EXTERNAL ECU W/FORCE FUEL (35220):
Improved fuel economy.
Enhanced engine starting and idle.
Consistent performance across varying conditions.
Modern EFI technology with classic styling.
Simplified tuning through self-learning capabilities.
Classic Gold Finish: Throttle body finish for aesthetic appeal.
External ECU: For discreet mounting options.
Integrated Display: 4.5 inch touch screen for monitoring and tuning.
Wide Band O2 Sensor: For accurate fuel reading and adjustments.
Force Fuel System: Includes external pump and surge tank for reliability.
Speed Density Management: MAP-N for efficient fuel management.
Durable Construction: Aluminum throttle body material.
Airflow Rate: 850 CFM for high-performance needs.
4-Barrel Square Bore Flange: For easy installation on standard manifolds.
Product identification
- Brand: FiTech
- Model / MPN: 35220
