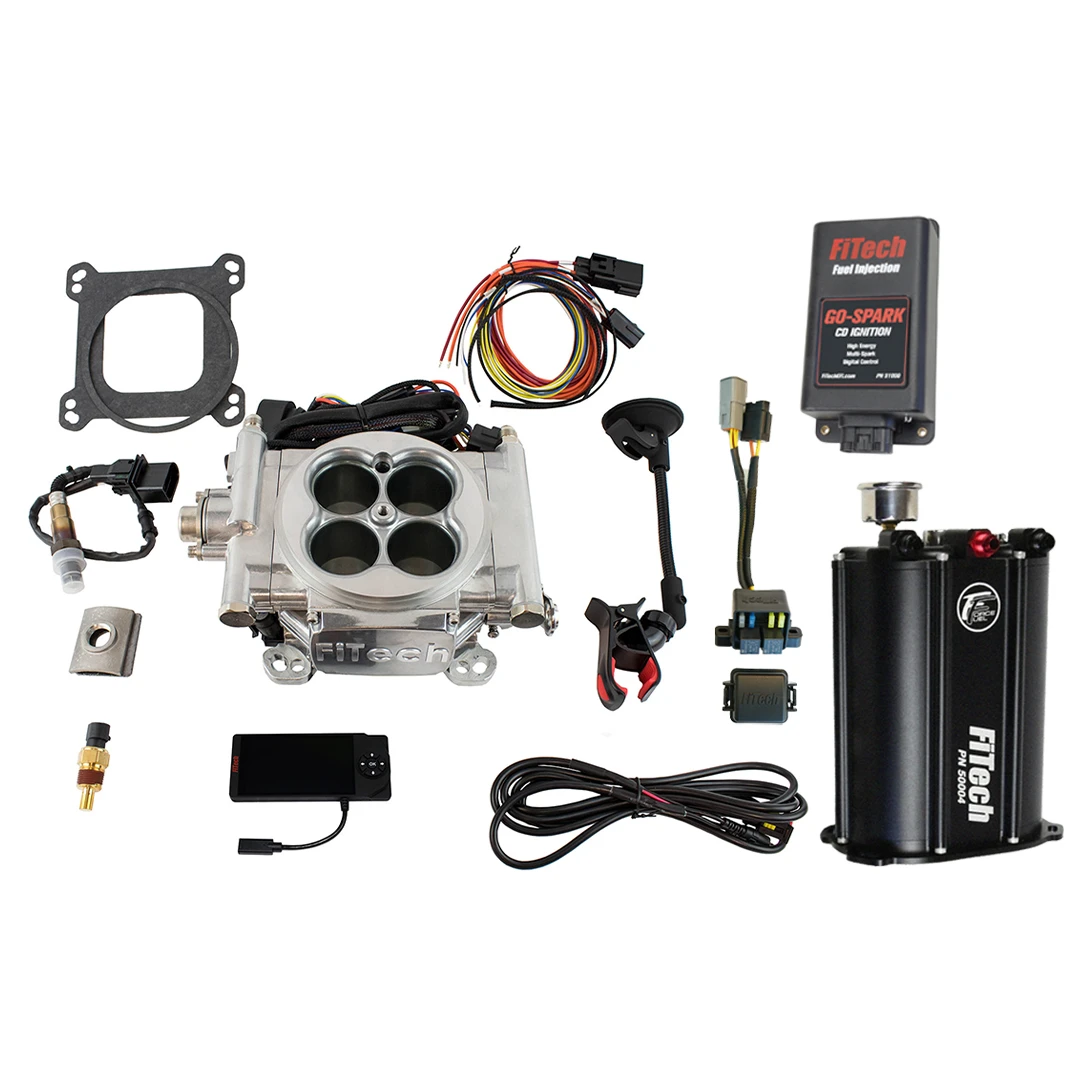

FiTech EFI 4 System Aluminum Finish Kit w/Force Fuel & CDI Box (93501)
KEY FEATURES AND BENEFITS:
Self-Tuning ECU: Automatically adjusts fuel and timing for optimal performance.
850 CFM Throttle Body: Handles high airflow demands for performance engines.
80 lbs./hr Injectors: Delivers adequate fuel for high horsepower applications.
Timing Control: Allows for electronic control of ignition timing.
Comprehensive Sensor Package: Includes O2, MAP, IAT, and TPS sensors.
4.5-Inch Handheld Display: Enables monitoring and adjustments.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Timing Control: Yes
ECU Included: Yes
Fuel Pump Included: Yes (Force Fuel System)
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Quantity: 4
Venturi Diameter: 43.00mm
Airflow Rate: 850 CFM
Injector Size: 80 lbs./hr.
Fuel Pump Flow Rating: 340 lph
Metering Style: Speed Density
Remove Existing Carburetor: Disconnect and remove the existing carburetor and intake manifold.
Install Throttle Body: Mount the FiTech throttle body onto the intake manifold.
Install Force Fuel System: Mount the Force Fuel system and connect to your existing fuel pump.
Connect Wiring Harness: Connect the wiring harness to the ECU and sensors.
Install Sensors: Mount the O2, MAP, IAT, and TPS sensors.
Connect Fuel Lines: Connect the fuel lines from the Force Fuel system to the throttle body.
Connect Ignition Control (if applicable): Connect the ignition control wires to your ignition system.
Power Up and Configure: Connect the handheld display and follow the on-screen instructions to configure the ECU.
Start and Self-Tune: Start the engine and allow the ECU to self-tune.
Fine Tune: If needed, use the handheld display to fine-tune the system.
BENEFITS OF USING THE FITECH EFI 4 SYSTEM ALUMINUM FINISH KIT W/FORCE FUEL & CDI BOX (93501):
Improved Fuel Efficiency: Compared to a carburetor.
Enhanced Engine Performance: Provides better throttle response.
Simplified Fuel System Installation: Easy setup with comprehensive components.
Consistent Engine Operation: Performs well across varying conditions.
Reduced Emissions: Contributes to cleaner operation.
Easier Engine Starting: More reliable startup performance.
Integrated Fuel Pressure Regulator: Within the throttle body.
Utilizes Speed Density Metering: For accurate fuel calculations.
Cast Aluminum Throttle Body: Comes with a polished finish.
Ability to Run Alcohol, Gasoline, or Methanol Fuels: Flexible fuel options.
Internal IAC Motor: For effective idle control.
External Fuel Pump: Used in the Force Fuel system.
User Tunable Parameters: Via the handheld display.
Complete Kit: Sold with all necessary components.
Product identification
- Brand: FiTech
- Model / MPN: 93501
