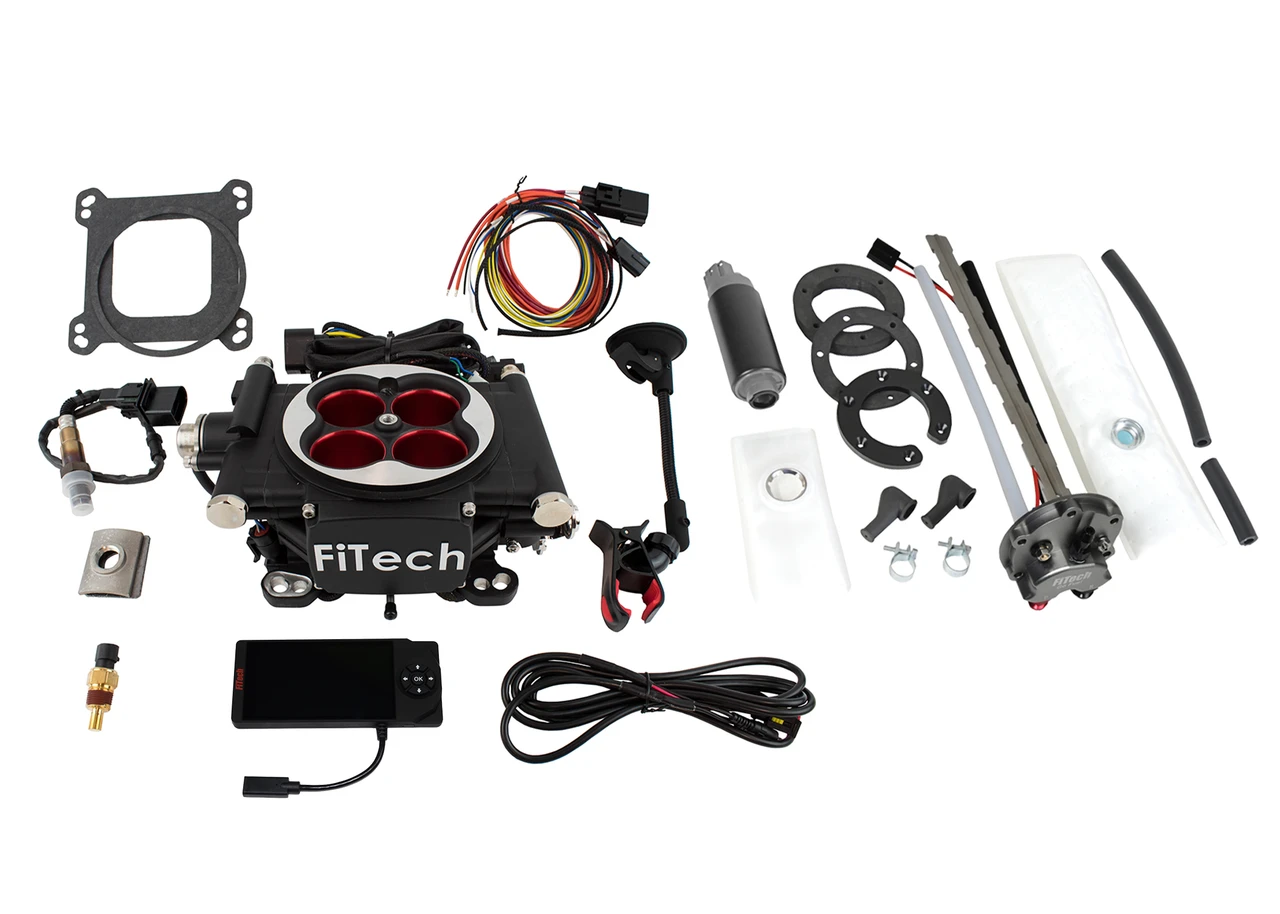

FiTech EFI 4 600HP Power Adder Matte Black w/ Retrofit Kit (36204)
The FiTech EFI 4 600HP Power Adder Matte Black w/ Retrofit Kit (36204) provides a modern electronic fuel injection solution for engines up to 600 horsepower. This kit includes a self-tuning 4-barrel throttle body, an integrated ECU, and a universal in-tank fuel pump module. Designed for ease of installation and improved engine performance, it offers a practical upgrade for classic vehicles and performance applications.
KEY FEATURES AND BENEFITS:
Significant Performance Improvements: Enhances engine performance and driveability.
Versatile Fuel Compatibility: Supports gasoline, E85, and methanol, accommodating different engine setups.
Simplified Wiring: Integrated ECU and sensors minimize wiring complexity.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Timing Control Compatible: Yes
Power Adder Compatible: Yes (Boost/Nitrous oxide)
ECU Included: Yes
Fuel Pump Included: Yes (In-tank, 340 LPH)
Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
Throttle Body Mounting Flange: 4-barrel square bore (4150 Flange)
Venturi Quantity: 4
Venturi Diameter: 43 mm
Airflow Rate: 850 CFM
Injector Size: 80 lbs./hr
Fuel Compatibility: Gasoline, E85, Ethanol, Methanol, Alcohol
Display: 4.5 inch touchscreen
Fuel Tank Depth Compatibility: 6-15 inches
Fitting Type: -6 AN ORB
Compatibility: Most 4-bbl intake manifolds
Preparation: Disconnect the battery and remove the existing carburetor and fuel system components.
Fuel System Installation: Install the in-tank fuel pump module in the fuel tank, ensuring proper depth and secure connections.
Throttle Body Installation: Mount the FiTech throttle body onto the intake manifold, securing it with the provided hardware.
Wiring Connections: Connect the wiring harness to the ECU and sensors, following the manufacturer's instructions for proper connections.
Sensor Installation: Install the oxygen sensor, MAP sensor, IAT sensor, and TPS sensor in their designated locations.
Fuel Line Connections: Connect the fuel lines to the throttle body and fuel pump module, ensuring leak-free connections.
Initial Setup: Connect the 4.5 inch display and follow the on-screen instructions for initial setup and configuration.
Final Checks: Verify all connections and system functions, ensuring proper operation.
BENEFITS OF USING THE FITECH EFI 4 600HP POWER ADDER MATTE BLACK W/ RETROFIT KIT (36204):
Improved Engine Performance: Enhances throttle response and overall engine efficiency.
Simplified Installation: Designed for easy setup with self-tuning capabilities.
Reliable Operation: Integrated ECU and sensors ensure dependable performance.
Modern Engine Operation: Offers advanced tuning options for enhanced performance.
4-Barrel Throttle Body Design: Optimizes airflow for improved performance.
Integrated ECU: Includes cooling fan control for better engine management.
Wide-Band Oxygen Sensor: Provides precise fuel mixture monitoring.
4.5 Inch Touchscreen Display: Facilitates easy configuration and monitoring of system performance.
Sensors Included: MAP, IAT, and TPS sensors come with the kit for comprehensive monitoring.
Metering Options: Supports both speed density and Alpha-N metering for versatile tuning.
Product identification
- Brand: FiTech
- Model / MPN: 36204
