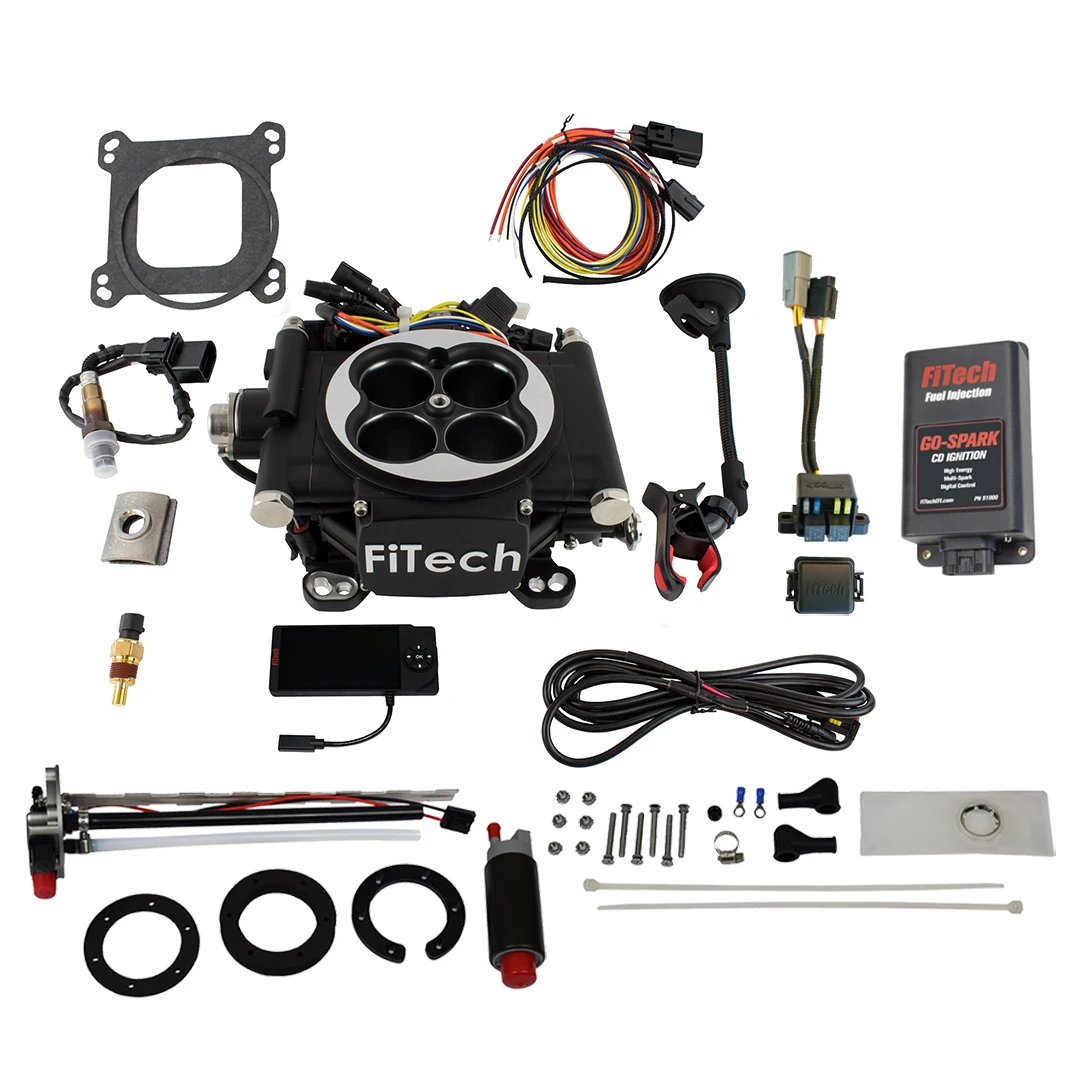

FiTech EFI 4 600HP Matte Black w/ In Tank Retrofit & CDI Box (93602)
The FiTech EFI 4 600HP Matte Black w/ In Tank Retrofit & CDI Box (93602) is designed to replace traditional carburetors with a modern electronic fuel injection system. This kit provides improved engine performance, easier starting, and enhanced fuel efficiency for engines up to 600 horsepower. It includes a throttle body injection system, an in-tank fuel pump, and a self-learning ECU to simplify tuning.
KEY FEATURES AND BENEFITS:
High Power Support: Rated for engines up to 600 horsepower, offering a significant performance upgrade.
In-Tank Fuel Pump Module: A 340 lph pump simplifies fuel system setup.
Fuel Compatibility: Compatible with gasoline, E85, and methanol.
850 CFM Throttle Body: Paired with 80 lbs/hr injectors for ample fuel and air supply.
User-Friendly Interface: Includes a 4.5-inch touchscreen display for easy monitoring and adjustments.
CDI Ignition Box: Enhances spark performance for better engine response.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Timing Control Compatible: Yes
ECU Included: Yes
Fuel Pump Included: Yes (340 lph in-tank)
Metering Style: Speed density (MAP-N)
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Diameter: 43.00mm
Airflow Rate: 850 cfm
Injector Size: 80 lbs/hr
Fuel Compatibility: Gasoline, E85, Methanol, Alcohol
Remove Existing Carburetor: Detach the current carburetor and clean the intake manifold surface.
Install Throttle Body: Mount the FiTech throttle body onto the 4-barrel intake manifold.
Install Fuel Pump Module: Place the in-tank fuel pump module inside the fuel tank, ensuring proper sealing.
Connect Wiring Harness: Connect the wiring harness to the ECU, sensors, and power sources as per the provided instructions.
Install Sensors: Attach the MAP, IAT, TPS, and oxygen sensors to their designated locations.
Connect Fuel Lines: Connect fuel lines from the pump to the throttle body, ensuring proper connections and sealing.
Initial Setup: Power on the system and use the touchscreen display to enter basic engine parameters.
Fine Tuning (Optional): Monitor engine performance and make minor adjustments through the touchscreen display if needed.
BENEFITS OF USING THE FITECH EFI 4 600HP MATTE BLACK W/ IN TANK RETROFIT & CDI BOX (93602):
Easier Engine Starting: Provides smoother idle and better cold start performance.
Enhanced Fuel Efficiency: More efficient than traditional carburetors.
Simplified Installation: Features self-learning technology for easier setup.
Complete Fuel System Setup: In-tank fuel pump included for convenience.
Throttle Body Design: Utilizes a 4-barrel square bore design for optimal airflow.
Venturi Size: Features 43mm diameter for enhanced performance.
Throttle Body Material: Constructed with durable cast aluminum.
Finish: Satin black coating for a sleek appearance.
Touchscreen Display: 4.5-inch for real-time monitoring and adjustments.
Metering Style: Employs speed density for precise fuel management.
Product identification
- Brand: FiTech
- Model / MPN: 93602
