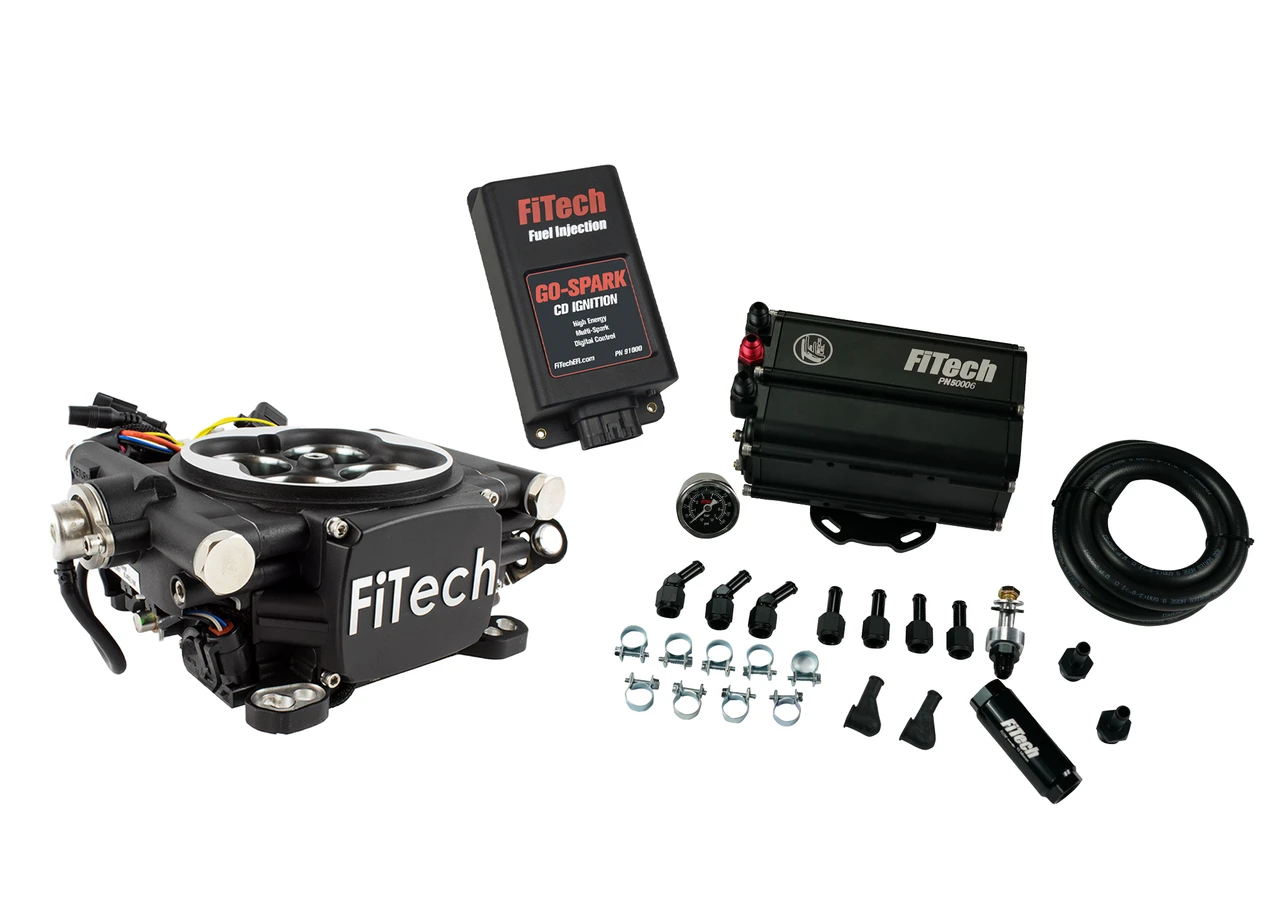

FiTech EFI 4 600 HP Matte Black w/Force Fuel & CDI Box (93552)
The FiTech EFI 4 600 HP Matte Black w/ Force Fuel & CDI Box (93552) converts your 4-barrel carburetor setup to modern electronic fuel injection (EFI). This master kit is designed for engines producing between 200 and 600 horsepower, offering improved performance and fuel efficiency. The system features a self-tuning ECU, simplifying the transition to EFI and allowing for on-the-fly adjustments.
KEY FEATURES AND BENEFITS:
Timing Control: Enables precise ignition timing adjustments for enhanced performance.
Integrated ECU: The ECU is mounted on the throttle body, simplifying installation.
Complete Kit: Includes all necessary components, such as sensors, wiring harness, fuel system, and ignition box.
Improved Performance: Enhances engine performance and fuel efficiency significantly.
Easy Setup: The hand-held touch screen controller simplifies initial setup and adjustments.
Wide Compatibility: Fits most 4-barrel intake manifolds and engines from 200 to 600 HP.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Metering Style: Speed density (MAP-N) or speed throttle (Alpha-N)
Throttle Body Mounting Flange: 4-barrel square bore (4150 flange)
Venturi Quantity: 4
Venturi Diameter: 43.00mm
Airflow Rate: 850 cfm
Injector Size: 80 lbs./hr.
ECU Included: Yes
Fuel Pressure Regulator: Built-in
MAP Sensor: 1 BAR internal
Compatibility: Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, and other engines with a 4-barrel intake manifold.
Throttle Body Installation: Install the throttle body onto the 4-barrel intake manifold.
Wiring Connections: Connect the wiring harness to the throttle body and engine sensors.
Oxygen Sensor Installation: Install the oxygen sensor into the exhaust system.
Ignition System Connection: Connect the Go Spark CDI Box to the ignition system.
Initial Setup: Use the hand-held controller to enter basic engine parameters.
Fine Tuning: Make adjustments using the hand-held controller as needed.
BENEFITS OF USING THE FITECH EFI 4 600 HP MATTE BLACK W/ FORCE FUEL & CDI BOX (93552):
Modernizes Classic Engines: Upgrades to electronic fuel injection for better performance.
Simplifies Engine Tuning: Self-adjusting ECU reduces the need for manual tuning.
Enhanced Performance: Offers improved throttle response and overall engine performance.
Complete System: The included Force Fuel and CDI box provide a comprehensive solution.
Simplified Installations: The ECU being mounted on the throttle body reduces installation complexity.
Touch Screen Controller: Hand-held device for intuitive operation.
Built-in Fuel Pressure Regulator: Ensures optimal fuel pressure management.
Adjustable Fan Control Switch: Manages engine cooling effectively.
CDI Ignition Compatibility: Works seamlessly with CDI ignition systems.
GM-Type Sensors: Utilizes standard GM sensors for easy replacement.
Bosch Wideband Oxygen Sensor: For accurate air-fuel ratio monitoring.
Wet Flow Annular Discharge: Ensures complete fuel atomization.
Flexible Fuel Options: Capable of running multiple fuel types for versatility.
Product identification
- Brand: FiTech
- Model / MPN: 93552
