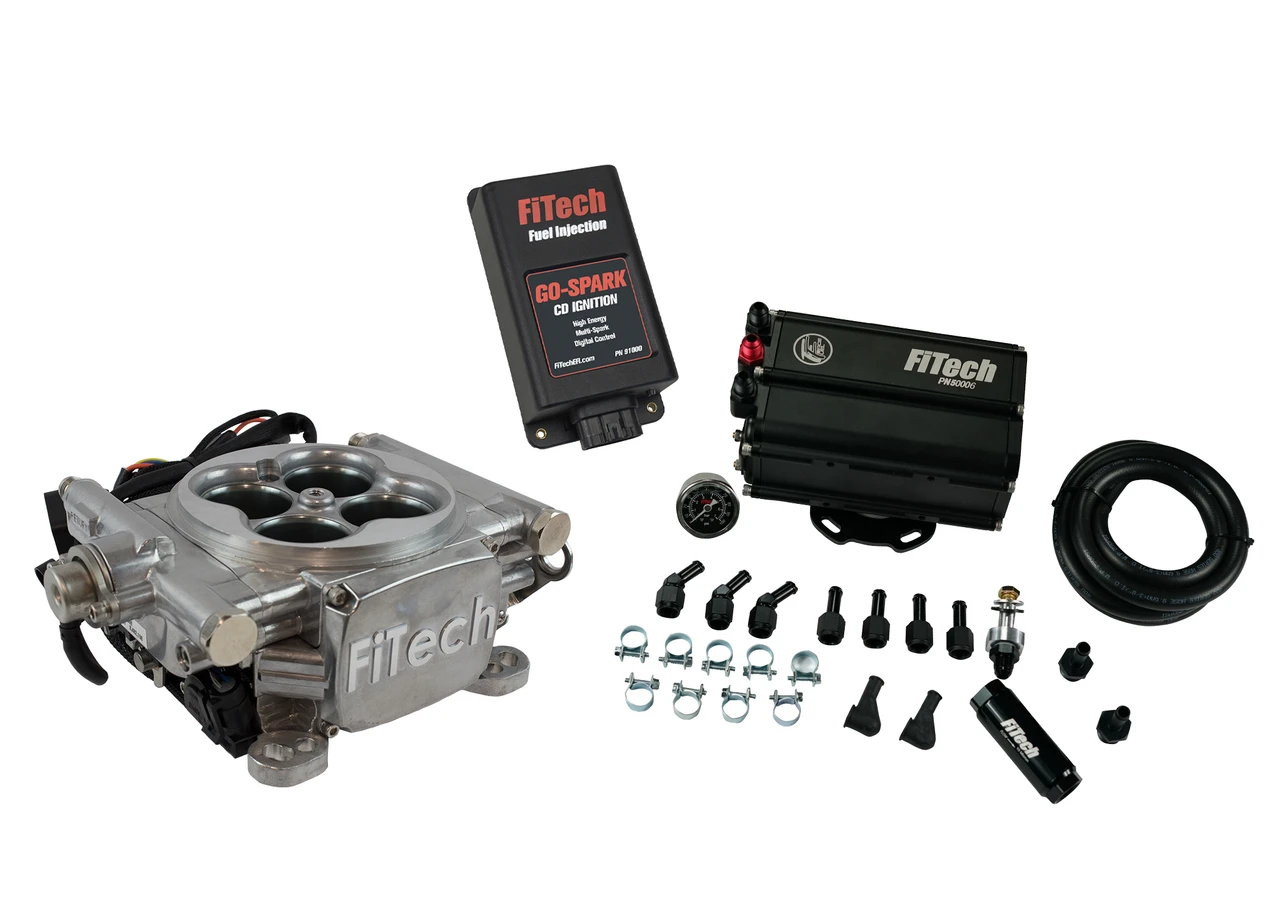

FiTech EFI 4 600 HP Bright Aluminum w/Force Fuel & CDI Box (93551)
The FiTech EFI 4 600 HP Bright Aluminum w/ Force Fuel & CDI Box (93551) is designed to convert 4-barrel carbureted engines to modern electronic fuel injection (EFI). This system simplifies engine management, offering improved performance and efficiency. It is suitable for engines producing between 200 and 600 horsepower, making it versatile for a wide range of applications, from daily drivers to weekend racers.
KEY FEATURES AND BENEFITS:
Integrated ECU: The computer is mounted on the throttle body for simplified installation.
Timing Control: Offers spark control without the need for external spark boxes or special distributors.
Touch Screen Controller: Hand-held device for easy initial setup and adjustments.
Wide Compatibility: Fits any 4-barrel intake manifold.
Improved Atomization: Enhanced fuel atomization from the annular discharge design.
Maximum Horsepower: 600 HP
Throttle Body Mounting Flange: 4-barrel square bore (4150 flange)
Venturi Quantity: 4
Venturi Diameter: 43.00mm
Airflow Rate: 850 cfm
Injector Size: 80 lbs/hr
Metering Style: Speed density (MAP-N) or speed throttle (Alpha-N)
Fuel Type: Gasoline, Alcohol, Methanol, Flex Fuel
Compatibility: Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, and other engines with a 4-barrel intake manifold.
Installation: Mount the throttle body onto the 4-barrel intake manifold.
Wiring: Connect the wiring harness to the engine sensors and power source.
Sensor Connection: Connect the O2 sensor, coolant temperature sensor, and other necessary sensors.
Initial Setup: Use the hand-held controller to enter basic engine parameters.
Fine Tuning: Make adjustments using the hand-held controller as needed.
BENEFITS OF USING THE FITECH EFI 4 600 HP BRIGHT ALUMINUM W/ FORCE FUEL & CDI BOX (93551):
Increased Fuel Efficiency: Provides precise fuel metering for better economy.
Simplified Installation: Integrated ECU and comprehensive kit reduce installation complexity.
Easy Tuning: Self-tuning and hand-held controller make adjustments straightforward.
Reliable Performance: Ensures consistent and dependable operation.
Die-Cast Throttle Body: Durable construction for long-lasting performance.
On-Board Fuel Pressure Regulation: Ensures optimal fuel pressure for consistent operation.
Wideband Oxygen Sensor: Included for accurate air-fuel ratio monitoring.
Adjustable Fan Control: Manages engine cooling effectively.
On-the-Fly Adjustments: Ability to change air/fuel ratios and ignition timing as needed.
GM Style Sensors: Uses easily replaceable GM style sensors for maintenance ease.
Returnless Fuel Command Center: Can utilize an engine-mounted returnless fuel command center for added convenience.
Product identification
- Brand: FiTech
- Model / MPN: 93551
